Cars with a diesel engine

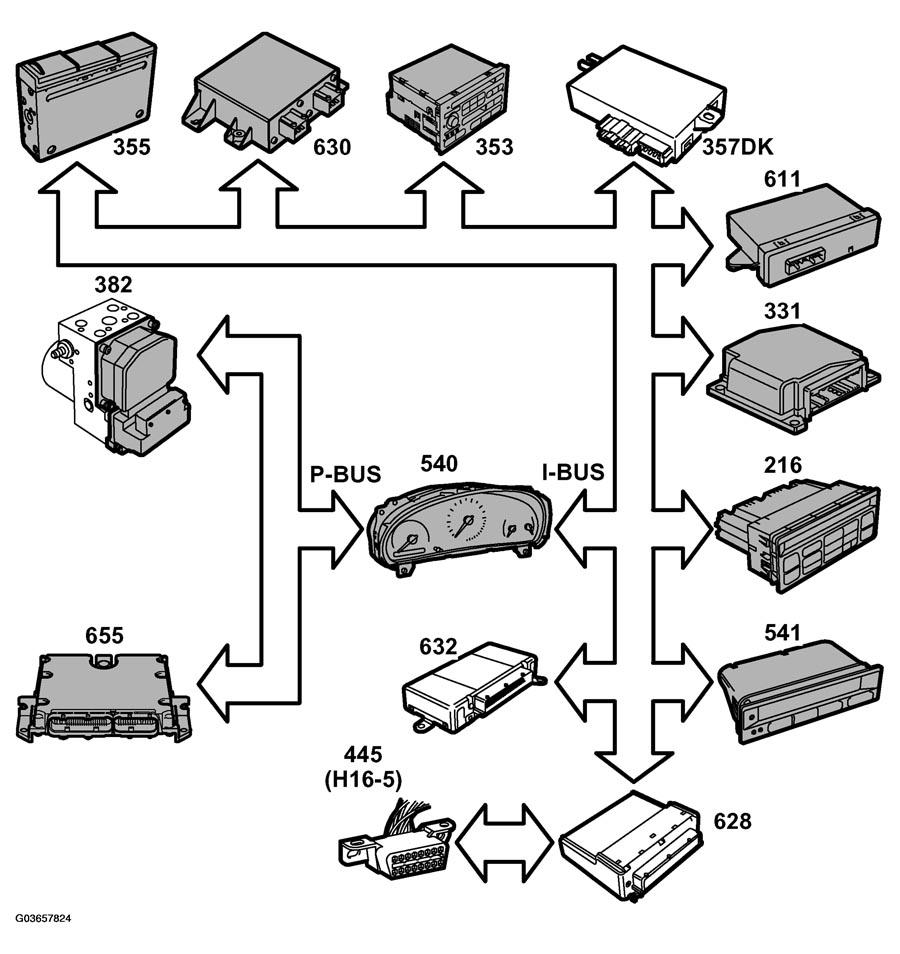

Fig 1: Identifying Control Module Bus Inputs (Cars With Diesel Engine)

G03657824

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TWICE (632)
DICE (628)
Diagnostic communication (445)
