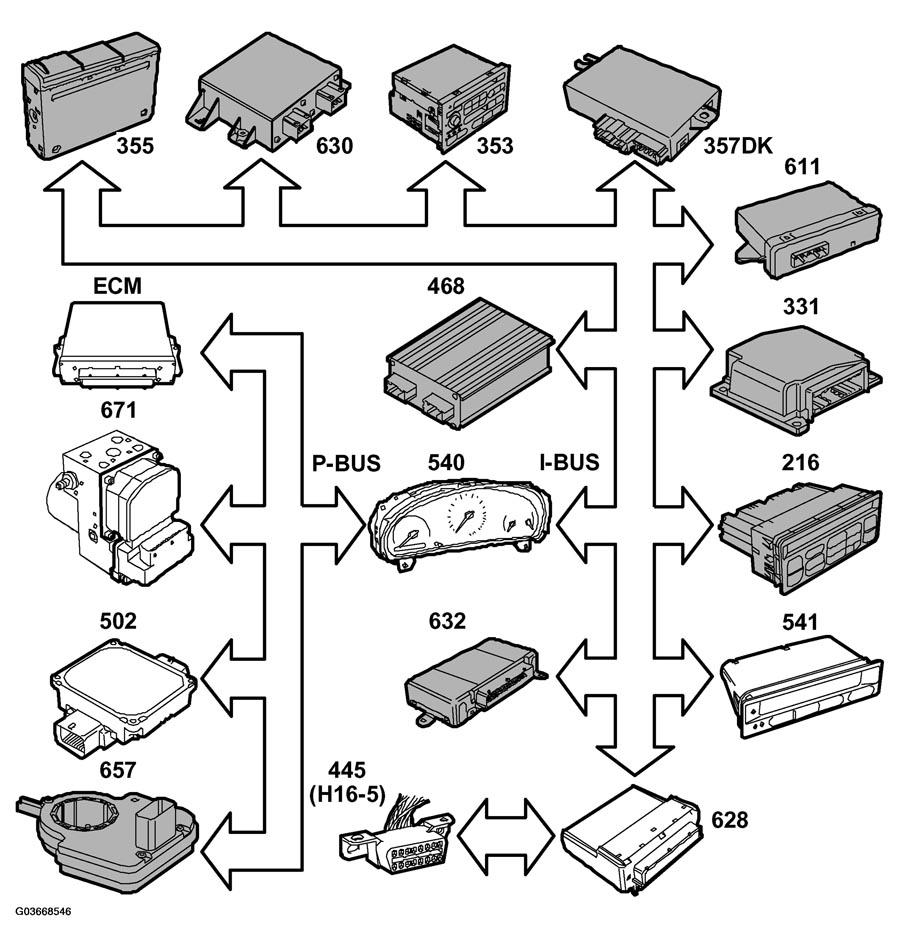

Control module bus outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Maximum permissible torque (used by the engine control system) see MAXIMUM PERMISSIBLE TORQUE
.
- Gear selector position (used by the engine control system and MIU) (430/600, 540), see GEAR SELECTOR POSITION SENSOR - GEAR ENGAGED
.
- Message addressed to SID (541), HIGH TRANSMISSION FLUID TEMP. (used by SID), see BUS MESSAGES, TCM
.
- CHECK GEARBOX lamp (used by MIU) (540), see CHECK GEARBOX WARNING LAMP
.
- SPORT (used by the engine control system and MIU) (430/600, 540), see WINTER AND SPORT
.
- WINTER light (used by MIU) (540), see WINTER AND SPORT
.
- Selected gear 1 - 5 when gear changing manually, (used by MIU).
