Gear selector position sensor

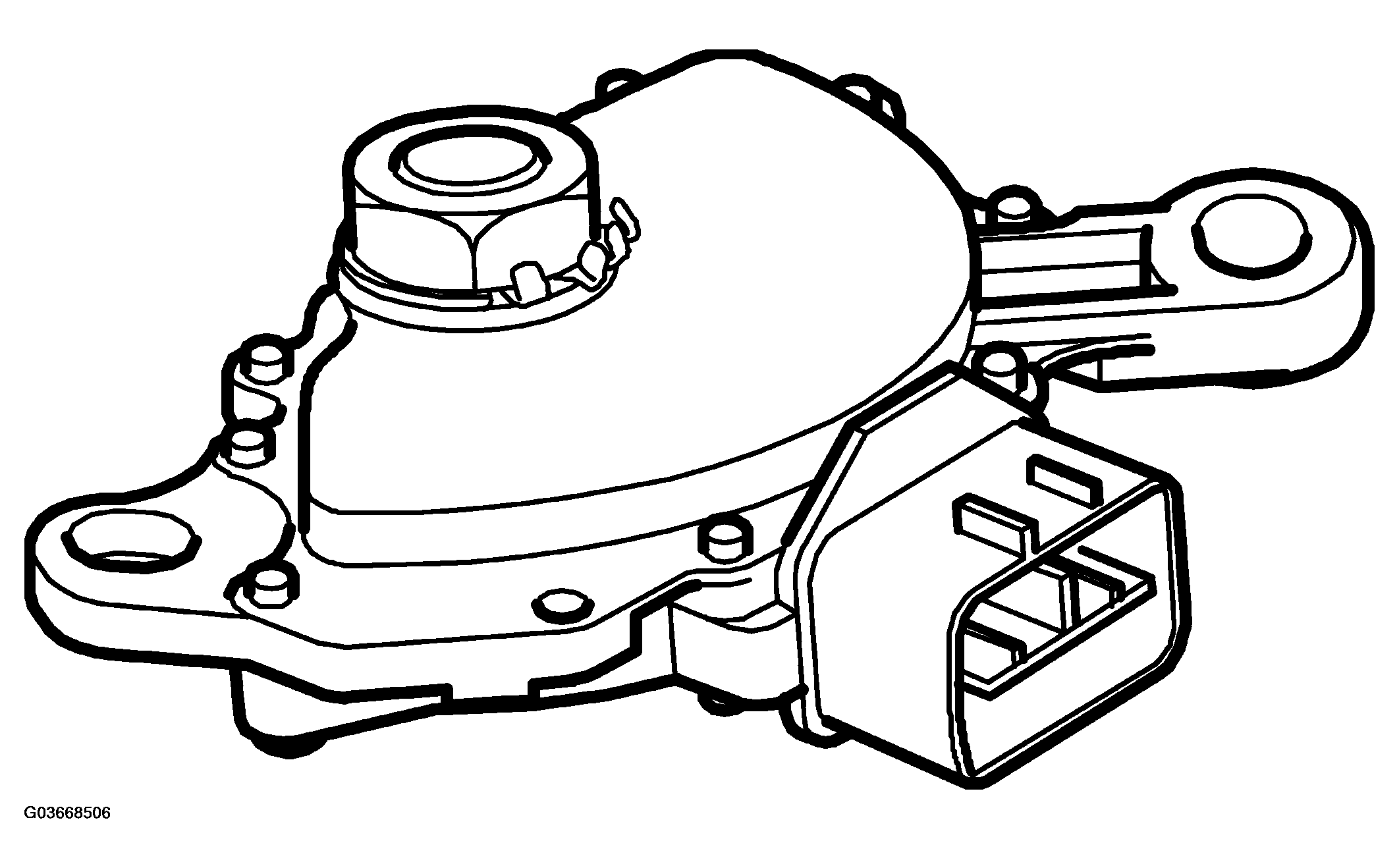

Fig 1: Identifying Gear Selector Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

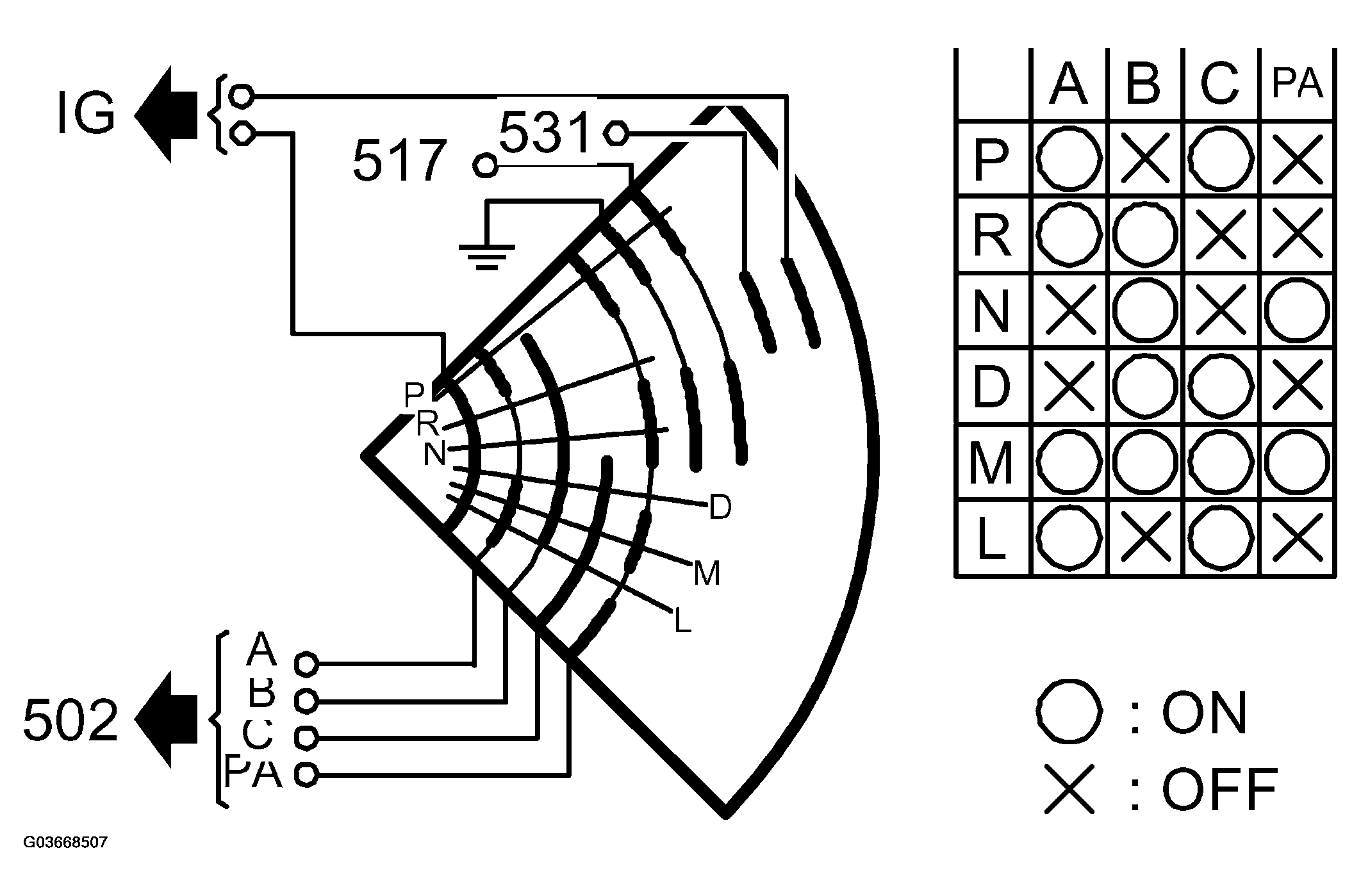

Fig 2: Identifying Gear Selector Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.

GEAR SELECTOR POSITION SENSOR SPECIFICATION

Location		On the transmission casing
Fitting		Adjustment required for proper operation
Type		Slip contacts
Power supply (+15 circuit)		IG contact
Function	Selector lever position	A, B, C and PA contacts
	Starter motor interlock	Contacts ST, M
	Reversing lights	Contacts E, D
Resistance	Open contact	OL
	Closed contact	< 5 Ohm
