Grounding point G41S
>>
Notes
Grounding point G41S: Notes

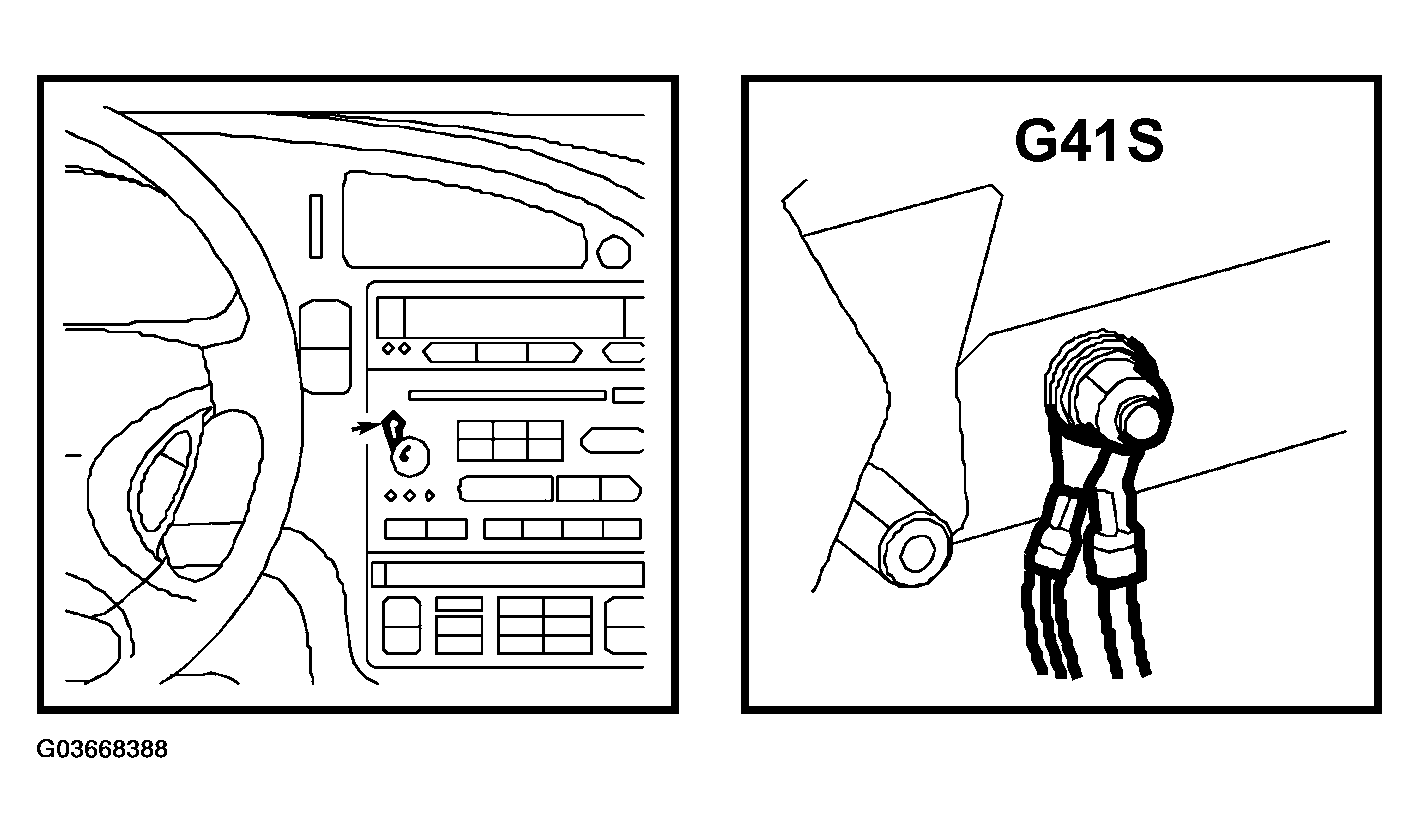

Fig 1: Identifying Grounding Point G41S
Courtesy of SAAB-SCANIA OF AMERICA, INC.

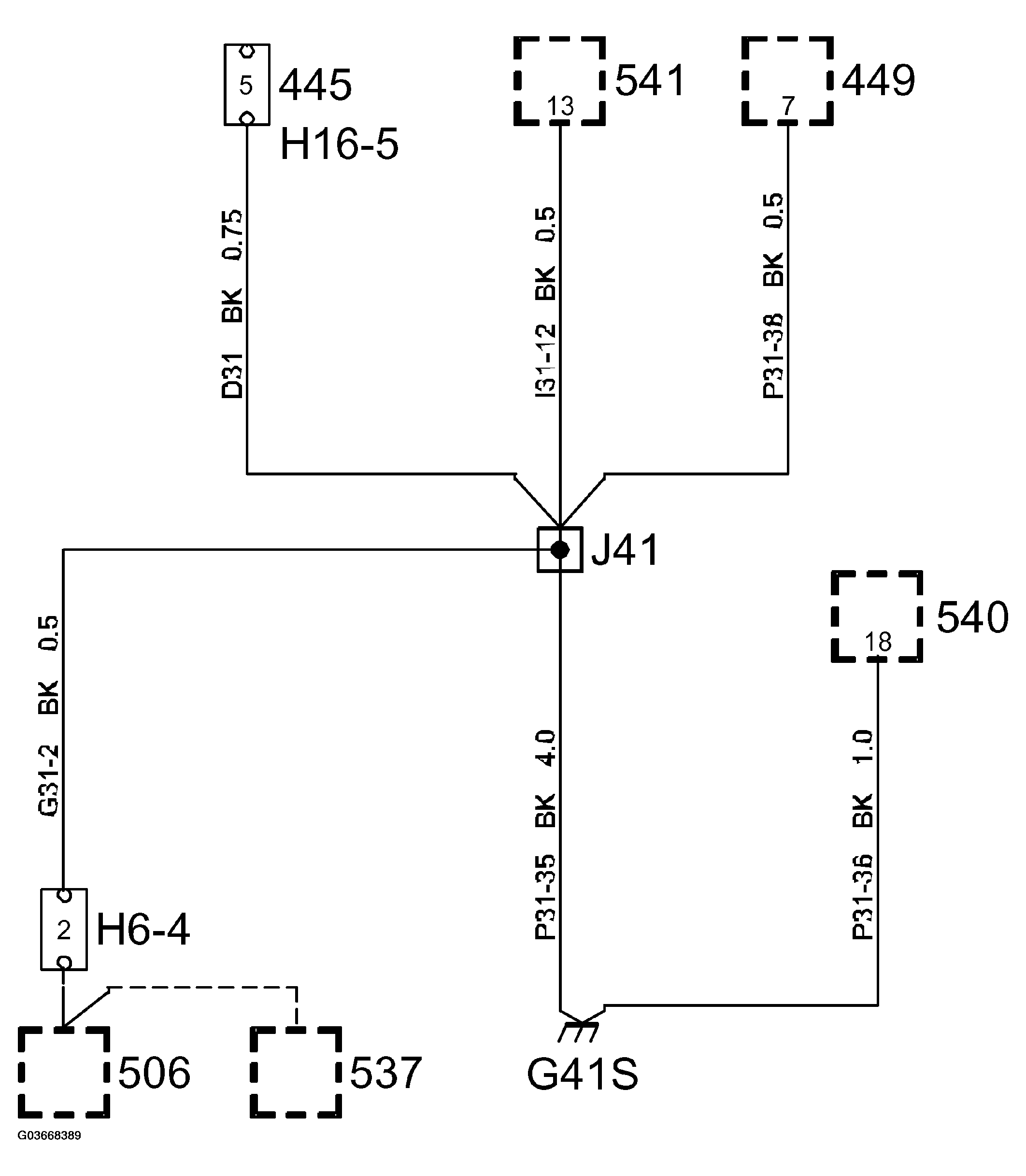

Fig 2: Grounding Point G41S Connection Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
