To remove

IMPORTANT: Solenoids SLT, SLS and SLU that control the system pressure and Lock-up must not be dismantled!
  1. Remove the VALVE HOUSING COVER .
  2. Unplug the relevant solenoid's connector.

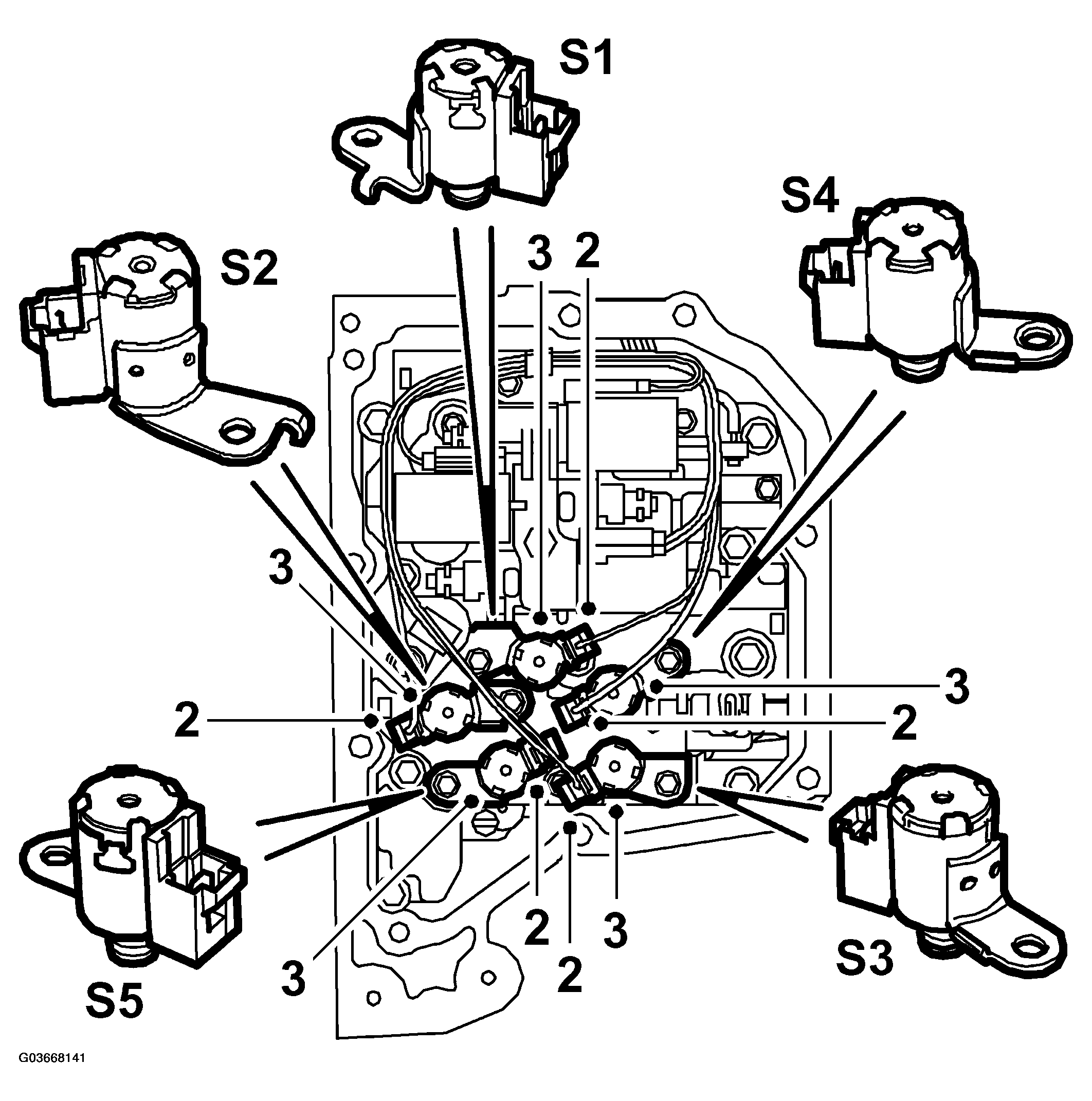

    Fig 1: Illustration For Step 2-3
    G03668141Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the solenoid's retaining bolt.
  4. Pry the solenoid loose, using a screwdriver.
