To remove

Remove the pedal bracket cover by undoing the 3 screws. Tilt down the cover and carefully pull it out. Pay attention to the cable for the diagnostic tool data link connector and the lighting.

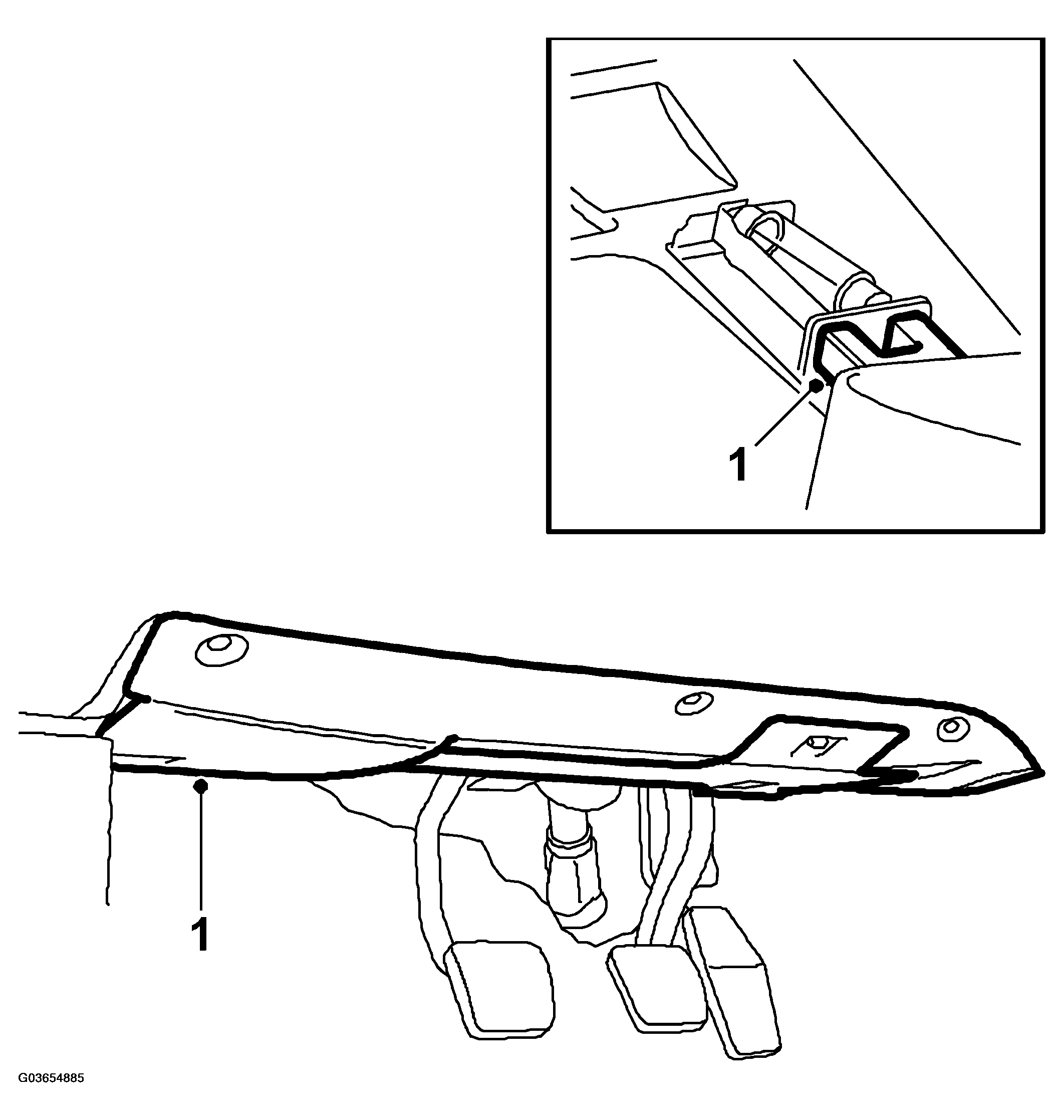

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Undo the screw on the relay box.

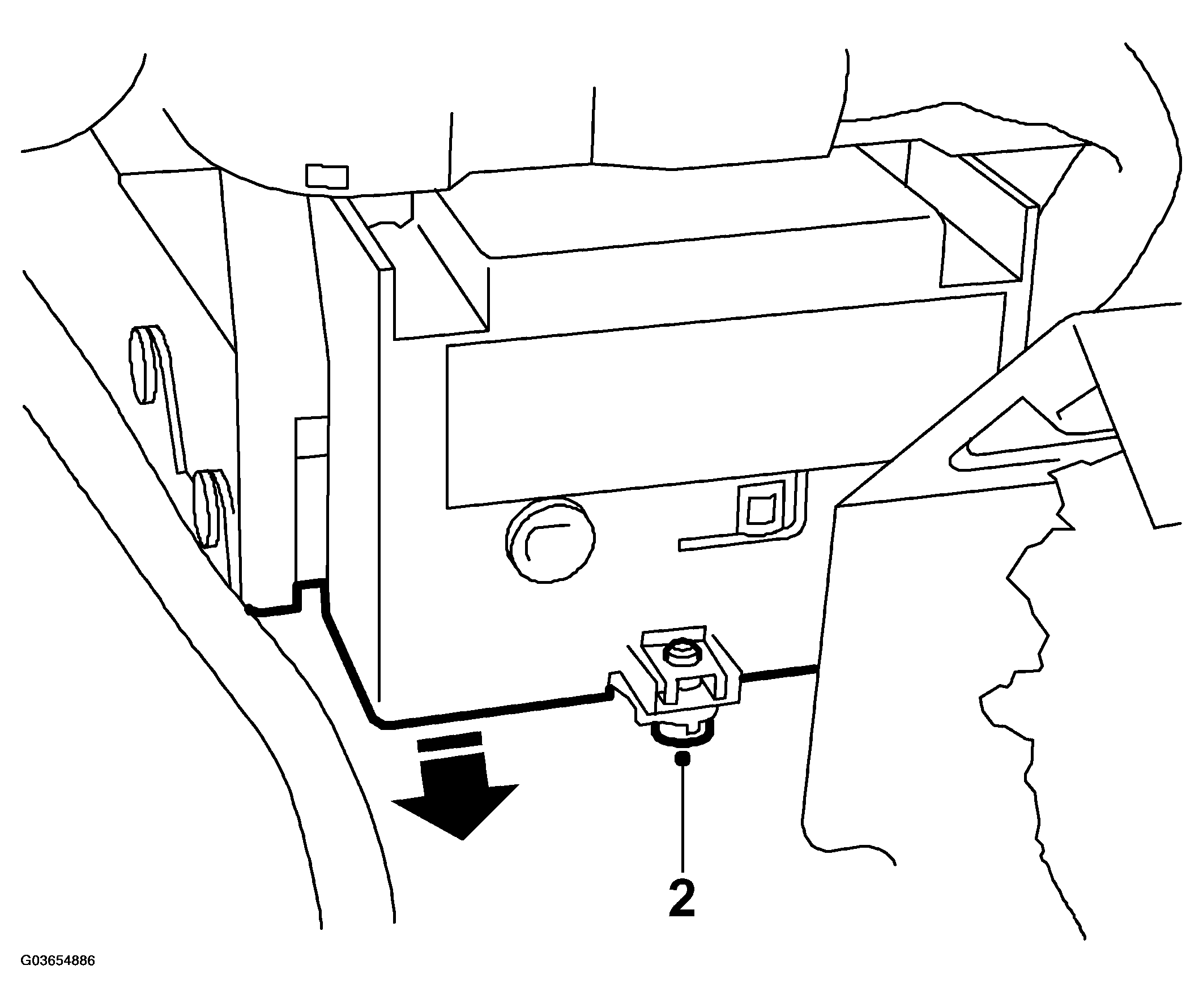

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Tilt down the relay holder.
Carefully open the catch and remove the relay.

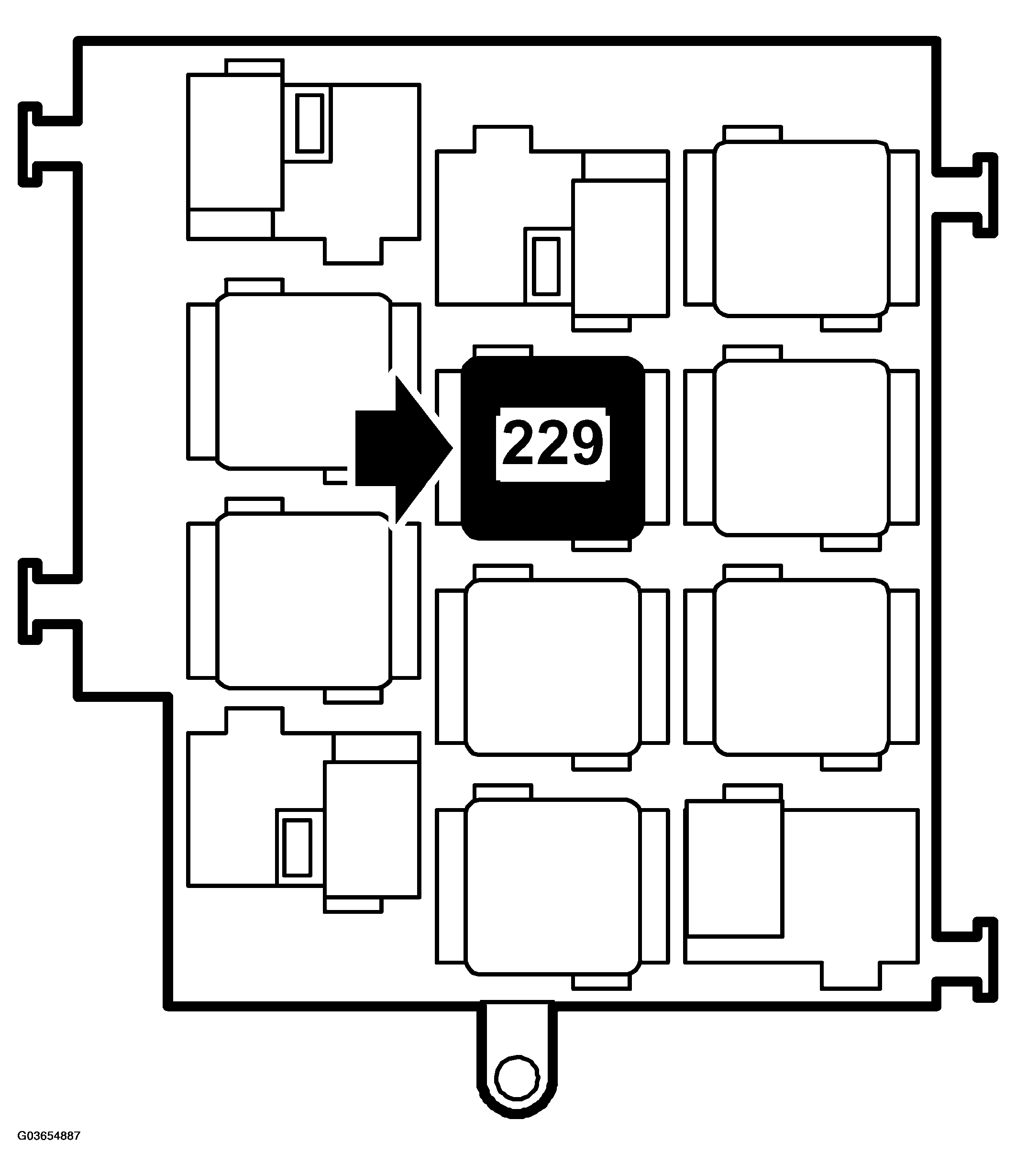

Fig 3: Identifying Relay Holder (1 Of 2)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
