General data

ENGINE LUBRICATION TECHNICAL SPECIFICATIONS

Oil volume, incl. filter with oil cooler
liters
5.4
  when servicing liters 4.0
Difference in volume, max-min   liters 1.0
Grade of oil     See OIL FILTER
Viscosity     See OIL FILTER
IMPORTANT: The recommended grades of oil contain all necessary additives and the use of additional additives should therefore be avoided.

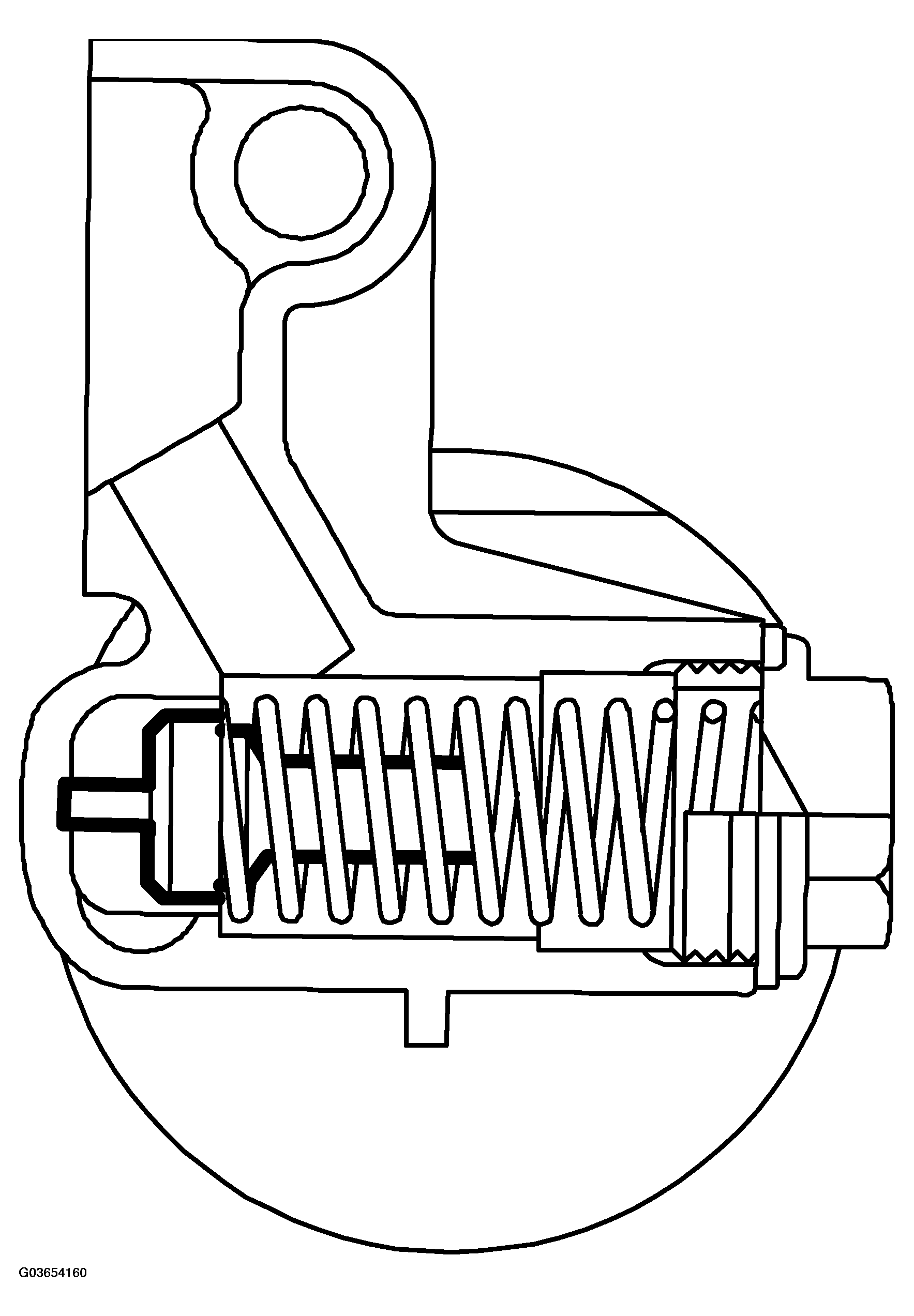

Fig 1: Oil Pump Spring Cross Sectional View
G03654160Courtesy of SAAB-SCANIA OF AMERICA, INC.
