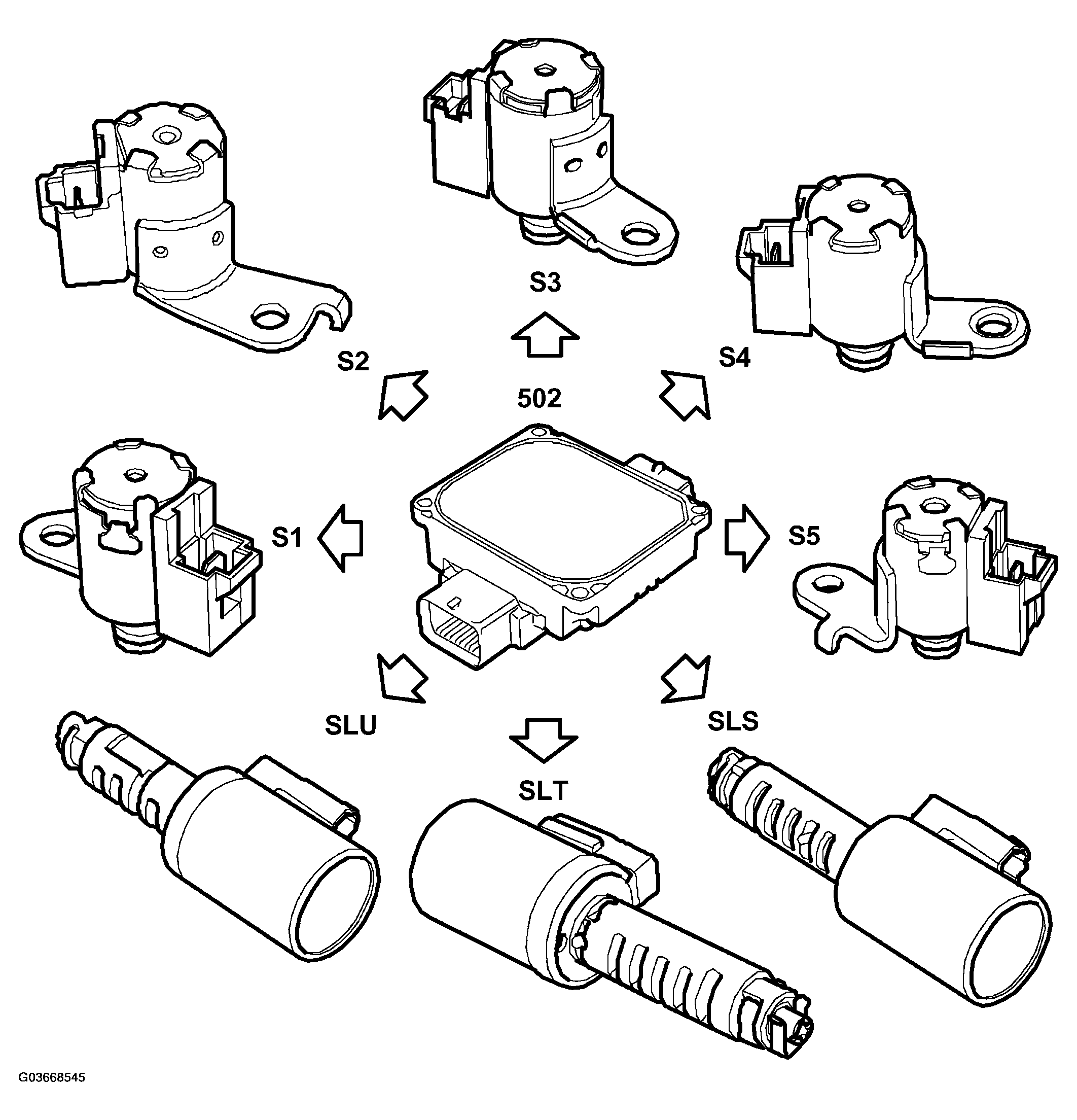

Control module outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Solenoid valve S1 for shifting, see SOLENOID VALVES, S1-S5 FOR GEAR CHANGING
.
- Solenoid valve S2 for shifting, see SOLENOID VALVES, S1-S5 FOR GEAR CHANGING
.
- Solenoid valve S3 for shifting, see SOLENOID VALVES, S1-S5 FOR GEAR CHANGING
.
- Solenoid valve S4 for shifting, see SOLENOID VALVES, S1-S5 FOR GEAR CHANGING
.
- Solenoid valve S5 for shifting, see SOLENOID VALVES, S1-S5 FOR GEAR CHANGING
.
- Solenoid valve SLU for lock-up, see SLU SOLENOID VALVE FOR LOCK-UP
.
- Solenoid valve SLT for system pressure, see SOLENOID VALVES, SLS AND SLT FOR SYSTEM PRESSURE
.
- Solenoid valve SLS for clutch pressure, see SOLENOID VALVES, SLS AND SLT FOR SYSTEM PRESSURE
.
