Control module inputs

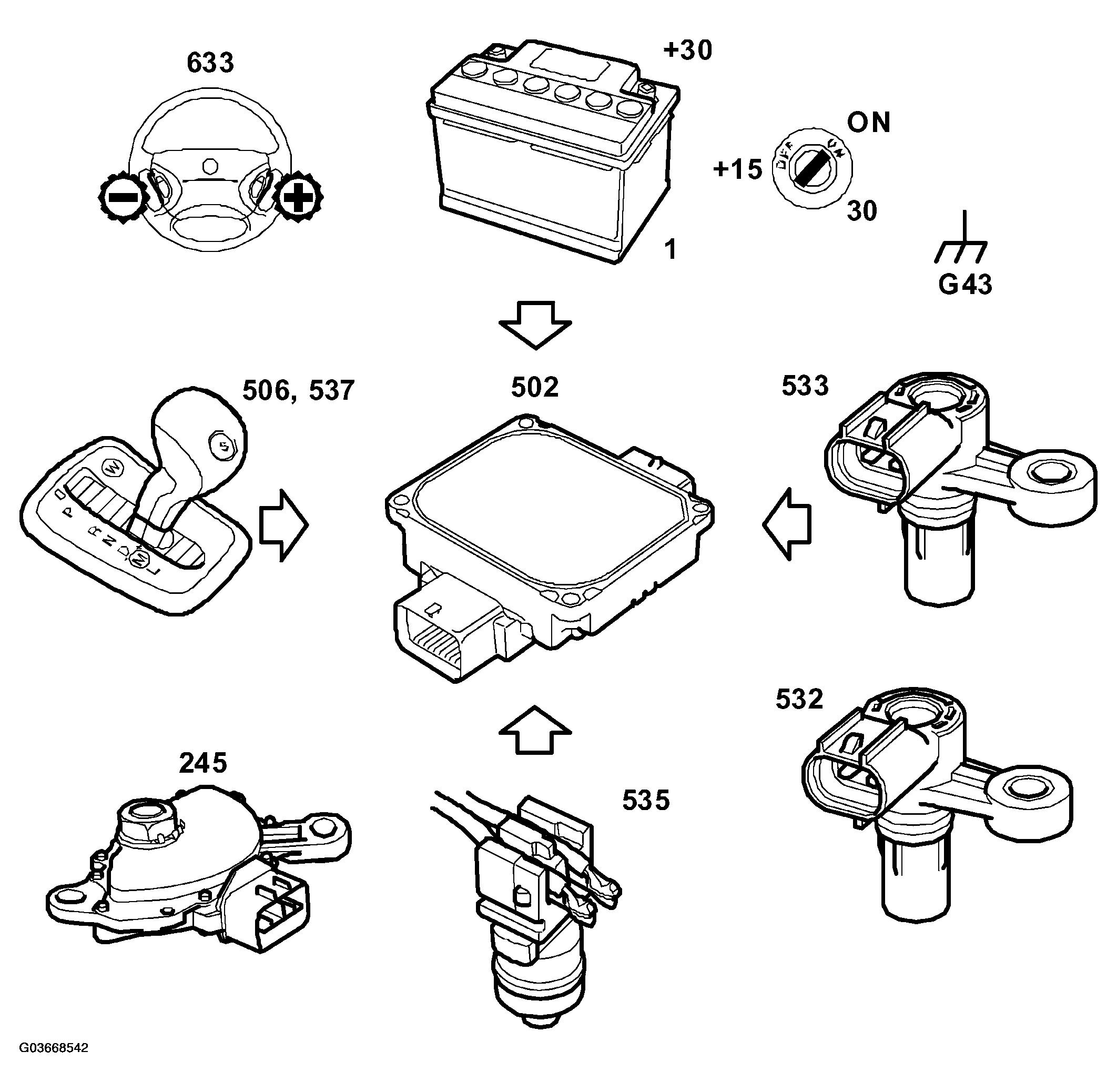

Fig 1: Identifying Communication Diagram Of Control Module Inputs (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

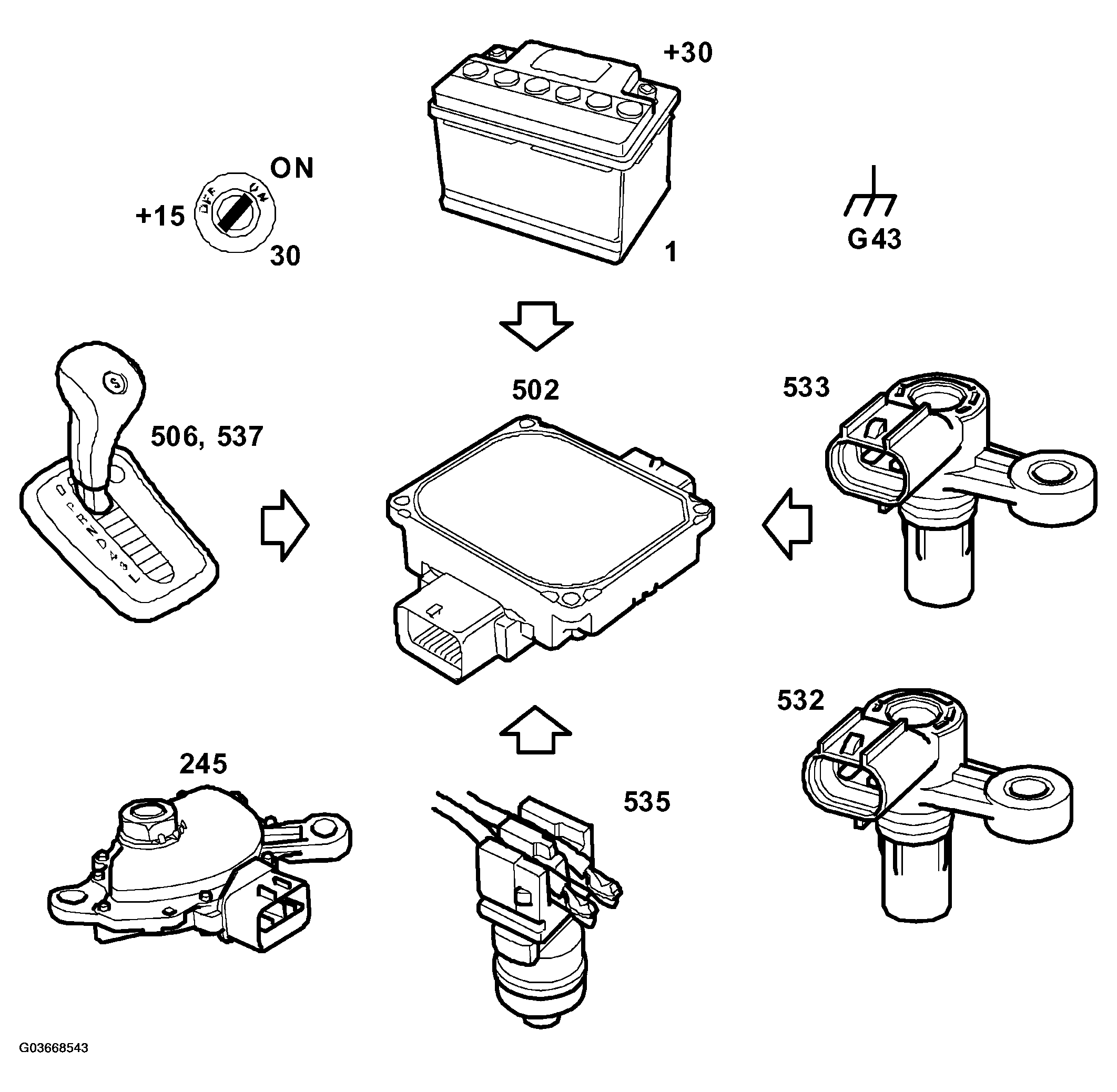

Fig 2: Identifying Communication Diagram Of Control Module Inputs (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Battery voltage +30 (A33), see CONTROL MODULE POWER SUPPLY .
Battery voltage +15 (A31, A22), see CONTROL MODULE POWER SUPPLY .
Ground (G43), see CONTROL MODULE GROUND .
Speed sensor, input shaft (532), see INPUT SHAFT SPEED SENSOR .
Speed sensor, output shaft (533), see OUTPUT SHAFT SPEED SENSOR .
Temperature sensor, transmission fluid (535), see TRANSMISSION FLUID TEMPERATURE SENSOR .
Gear selector position sensor (245), see GEAR SELECTOR POSITION SENSOR - GEAR ENGAGED .
Switch, SPORT (537), see WINTER AND SPORT .
Switch, WINTER (506), see WINTER AND SPORT .
Switch, up and down gear changing, pin 8 (A)
