Home >> Saab >> 2003 >> 9-5 Arc, 4D Wagon >> Repair and Diagnosis >> Steering >> Power Steering System >> Technical Data >> Power steering pump >> Notes

Power steering pump: Notes

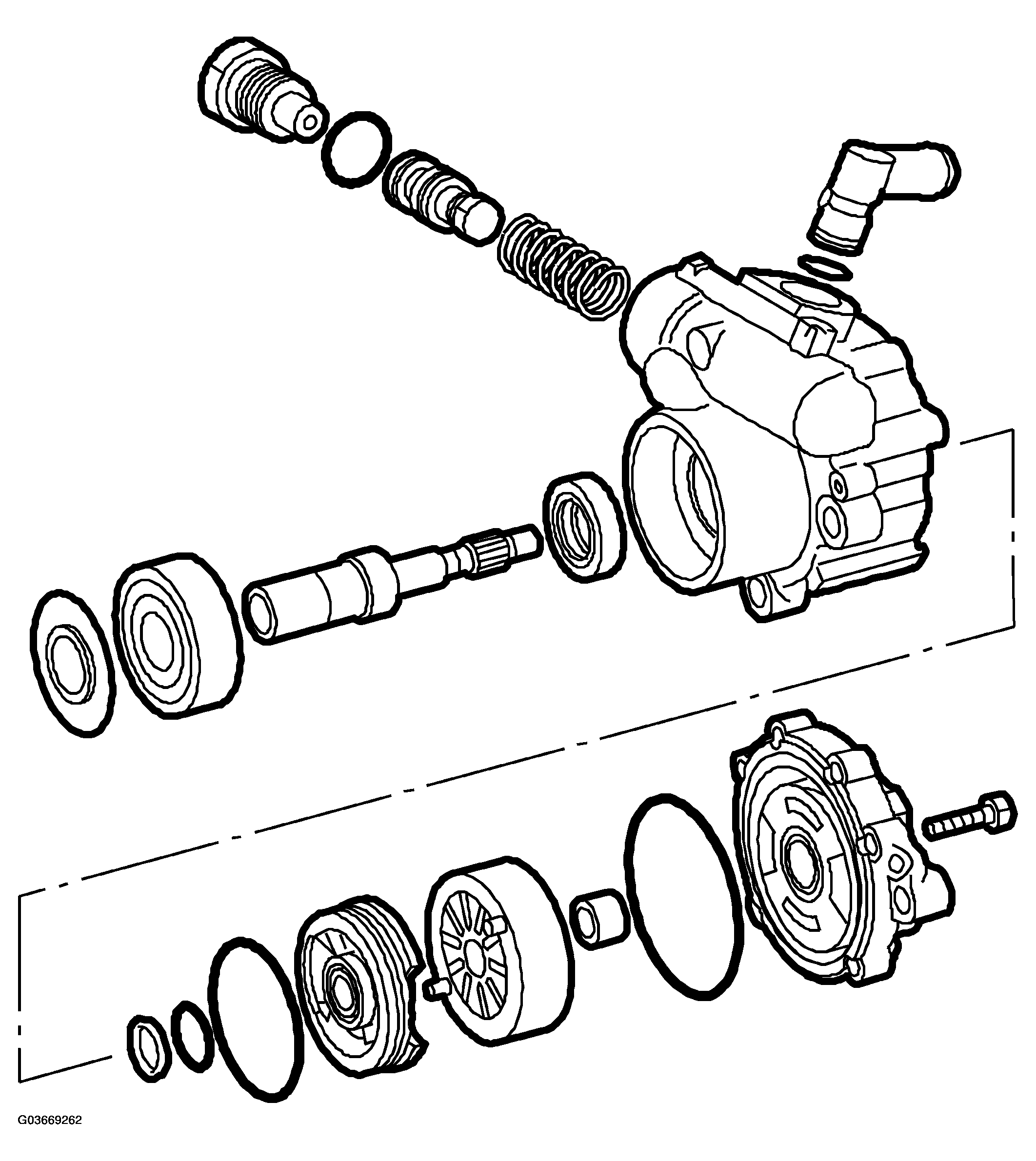

Fig 1: Exploded View Of Power Steering Pump

G03669262

Courtesy of SAAB-SCANIA OF AMERICA, INC.
