TRIONIC T7 Fuel Control System, V6
>>
Technical Description
>>
Control module power supply
>>
Notes
Control module power supply: Notes

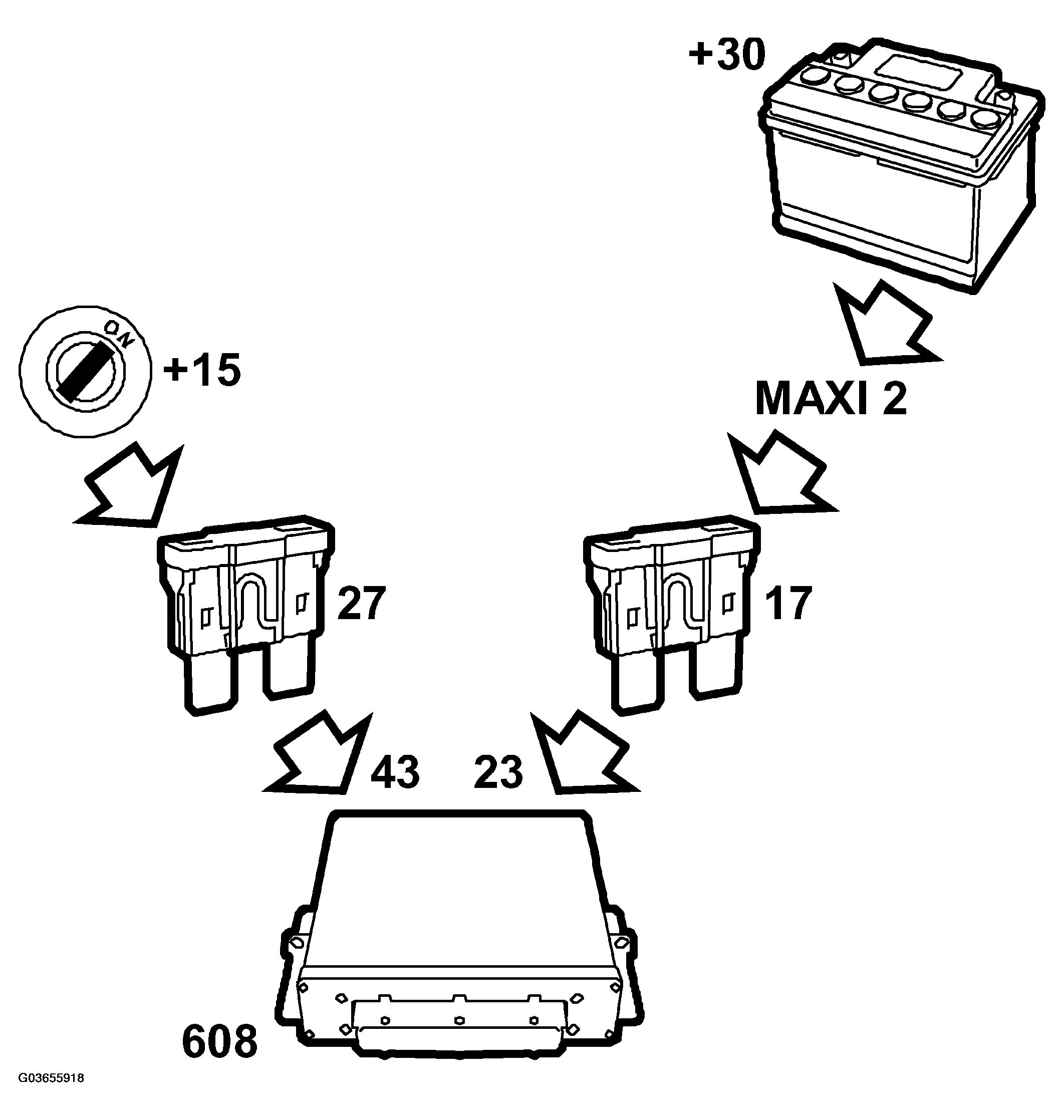

Fig 1: Control Module Power Supply Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.

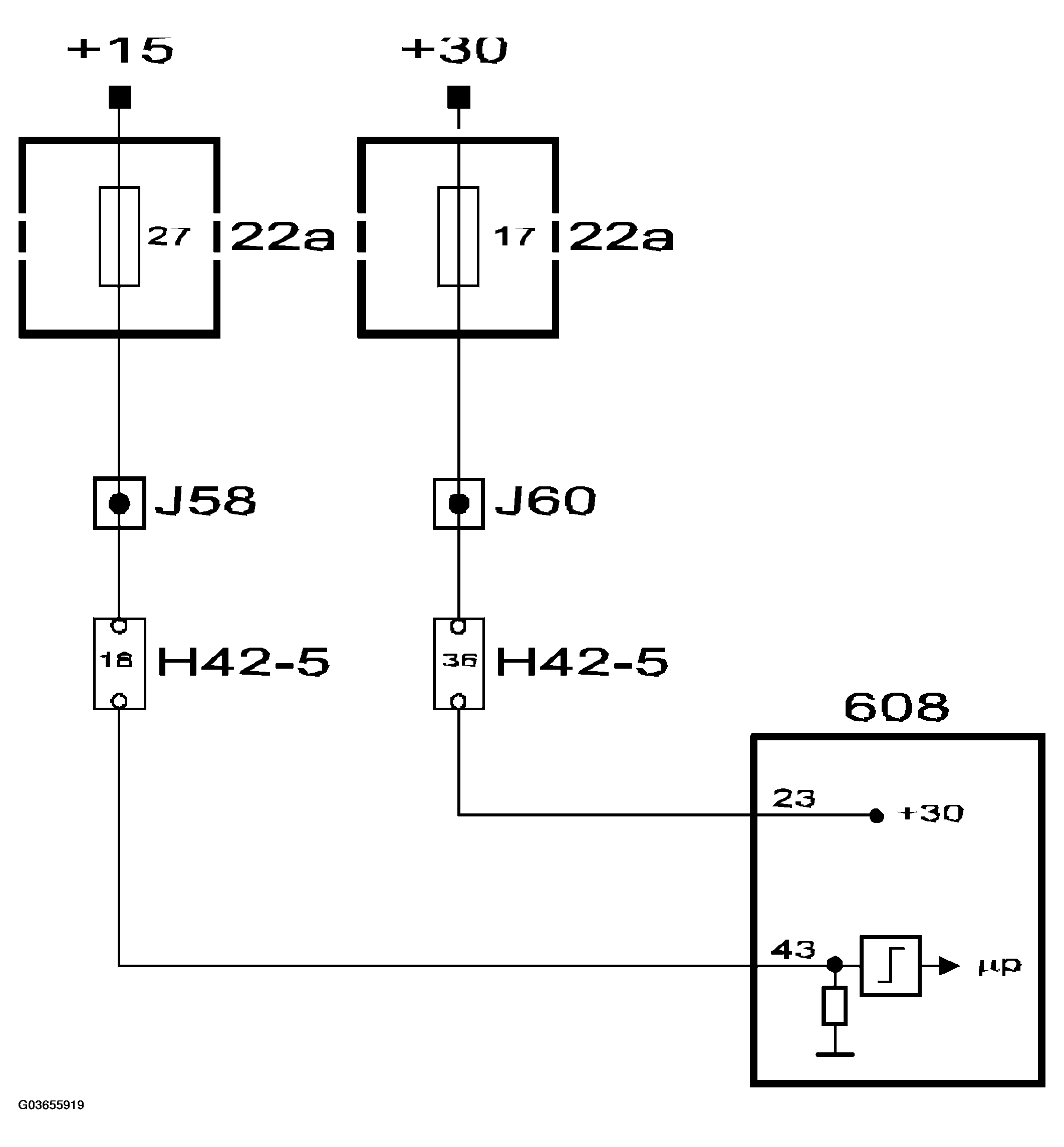

Fig 2: Circuit Diagram - Control Module
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
