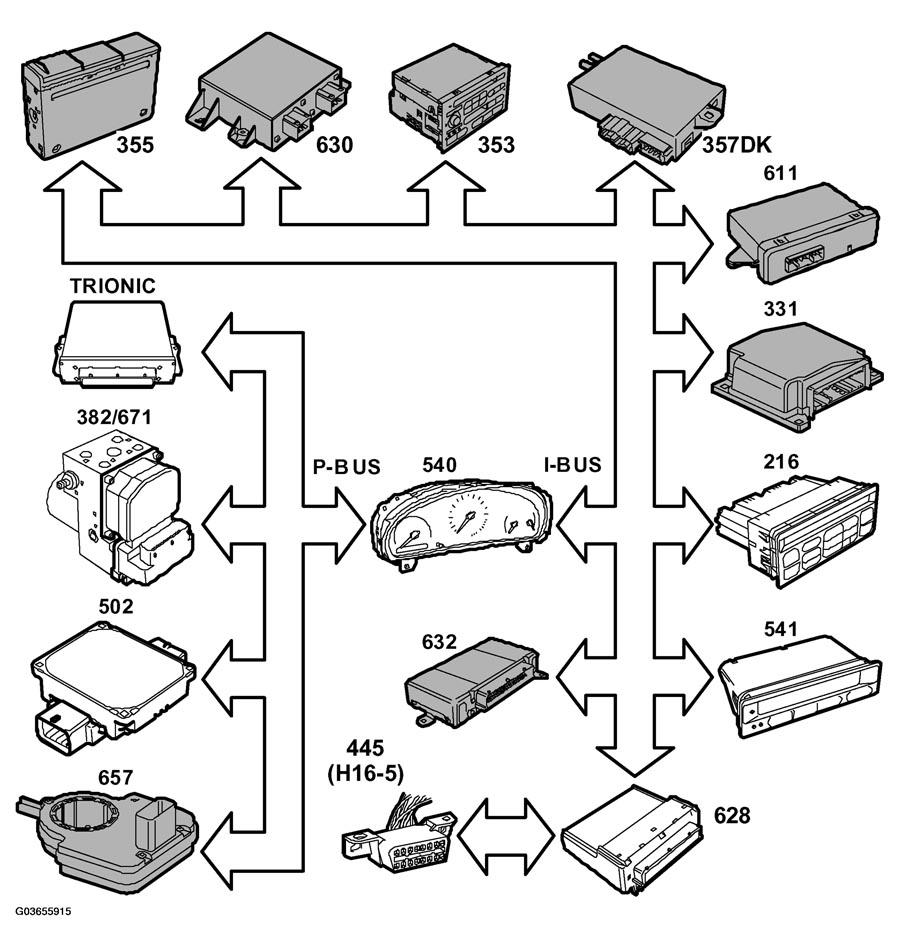

Control module bus outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Engine torque, used by TCM (502)
- Accelerator position, used by TCM (502)
- Kickdown, used by TCM (502)
- Engine speed, used by TCM (502), ACC (216) and MIU (540)
- Coolant temperature, used by ACC (216), MIU (540) and DICE (628)
- Engine running, used by ACC (216)
- Tighten fuel filler cap, used by SID (541)
- Turbo gauge reading, used by MIU (540)
- CHECK ENGINE, used by MIU (540)
- SHIFT UP, used by MIU (540)
- CRUISE lamp, used by MIU (540)
- Pedal position, used by TC/ABS (382)
- Engine torque, used by TC/ABS (382), see
- Engine speed, used by TC/ABS (382), see
- Fuel consumed since start, used by MIU (540)
- Diagnostics, used by DICE (628)/ diagnostic tool
