Relay, A/C (156)

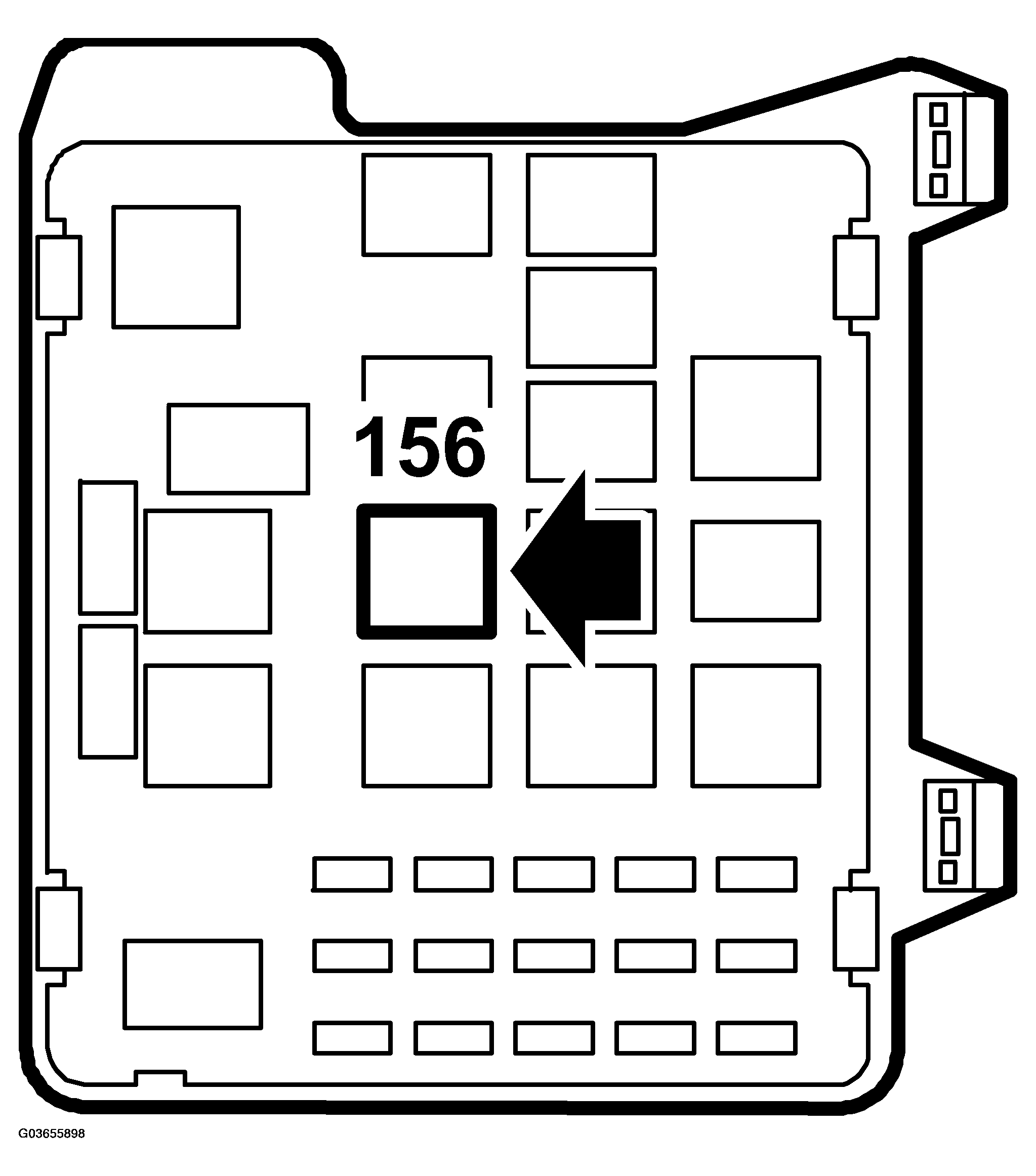

Fig 1: Identifying Relay (A/C)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

RELAY (A/C) TECHNICAL DATA

Location		In main relay board in engine bay
Resistance, coil at 20 °C (68 °F)	Ohms	85+/-5
Nominal control voltage	V	12
Rated current	A	30
