To remove

  1. Turn the steering wheel and remove the two screws securing the steering column cover.

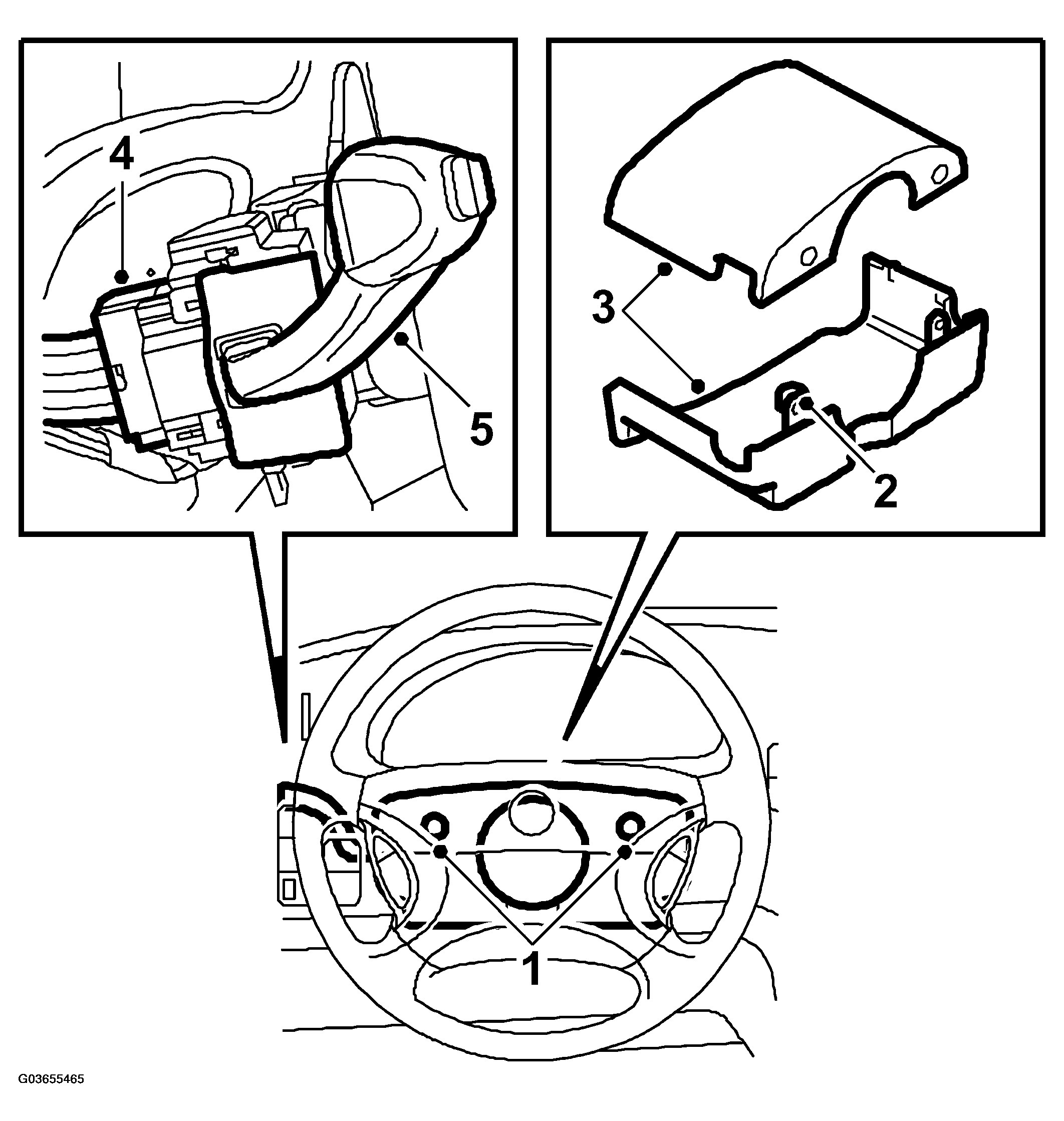

    Fig 1: Illustration For Steps 1-5
    G03655465Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the lower screw.
  3. Remove the cover. Mind the hooks on the cover.
  4. Unplug the connector.
  5. Remove the switch.
