To remove

  1. Remove the caps over the nuts on the wiper spindles and slacken the nuts slightly.

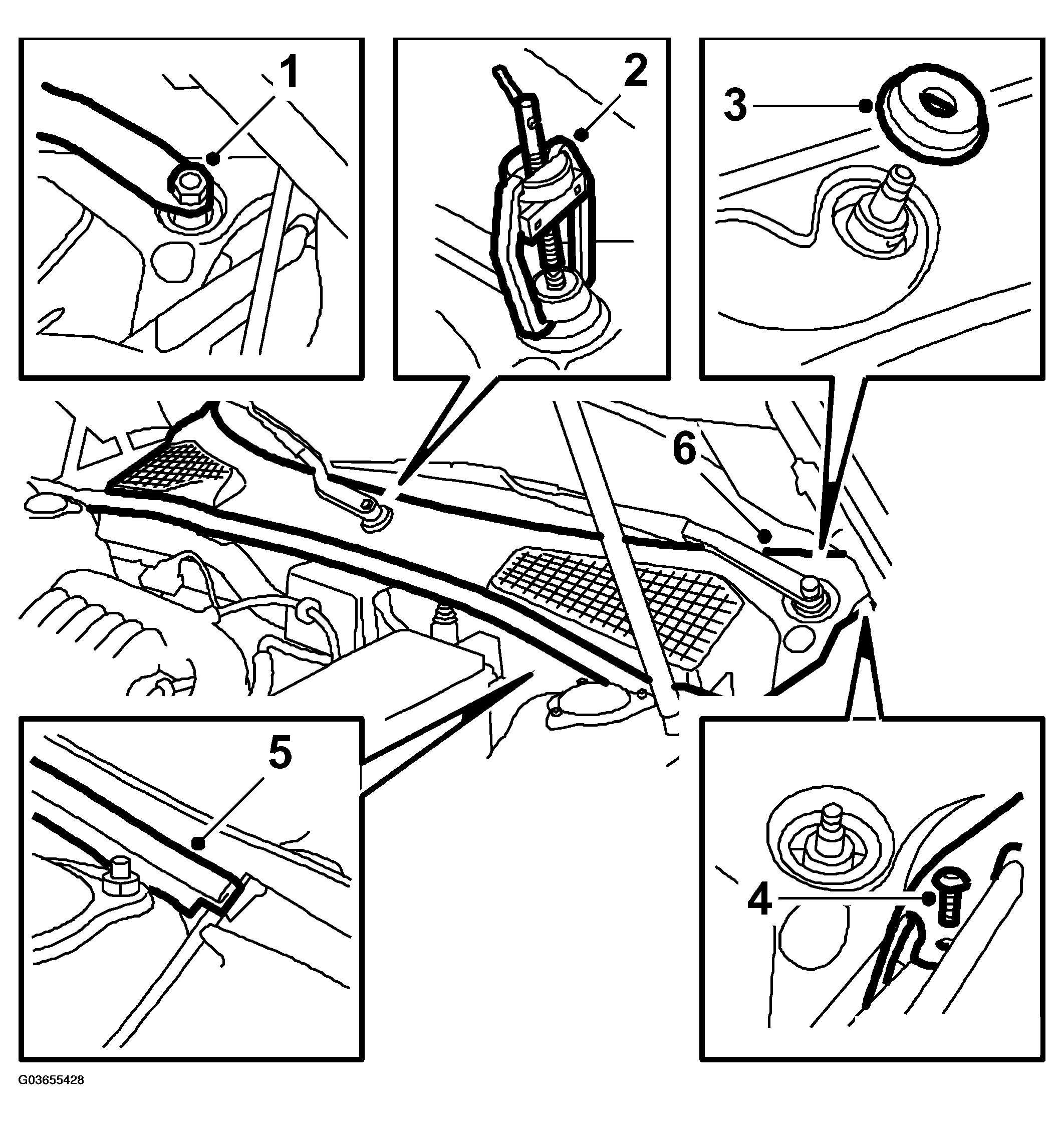

    Fig 1: Illustration For Steps 1-6
    G03655428Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Use a puller, special tool No. 85 80 144 to remove the wiper arms. Remove the nuts and wiper arms.
  3. Remove the rubber seals from the wiper spindles.
  4. Remove the two screws in the short sides of the windscreen cover panel.
  5. Remove the rubber seal.
  6. Remove the windscreen cover panel by grasping its front edge and lifting it up and forwards. Mind the bonnet release cable's lead-through on the left-hand side.
  7. Undo the 4 nuts securing the control module's protective cover.

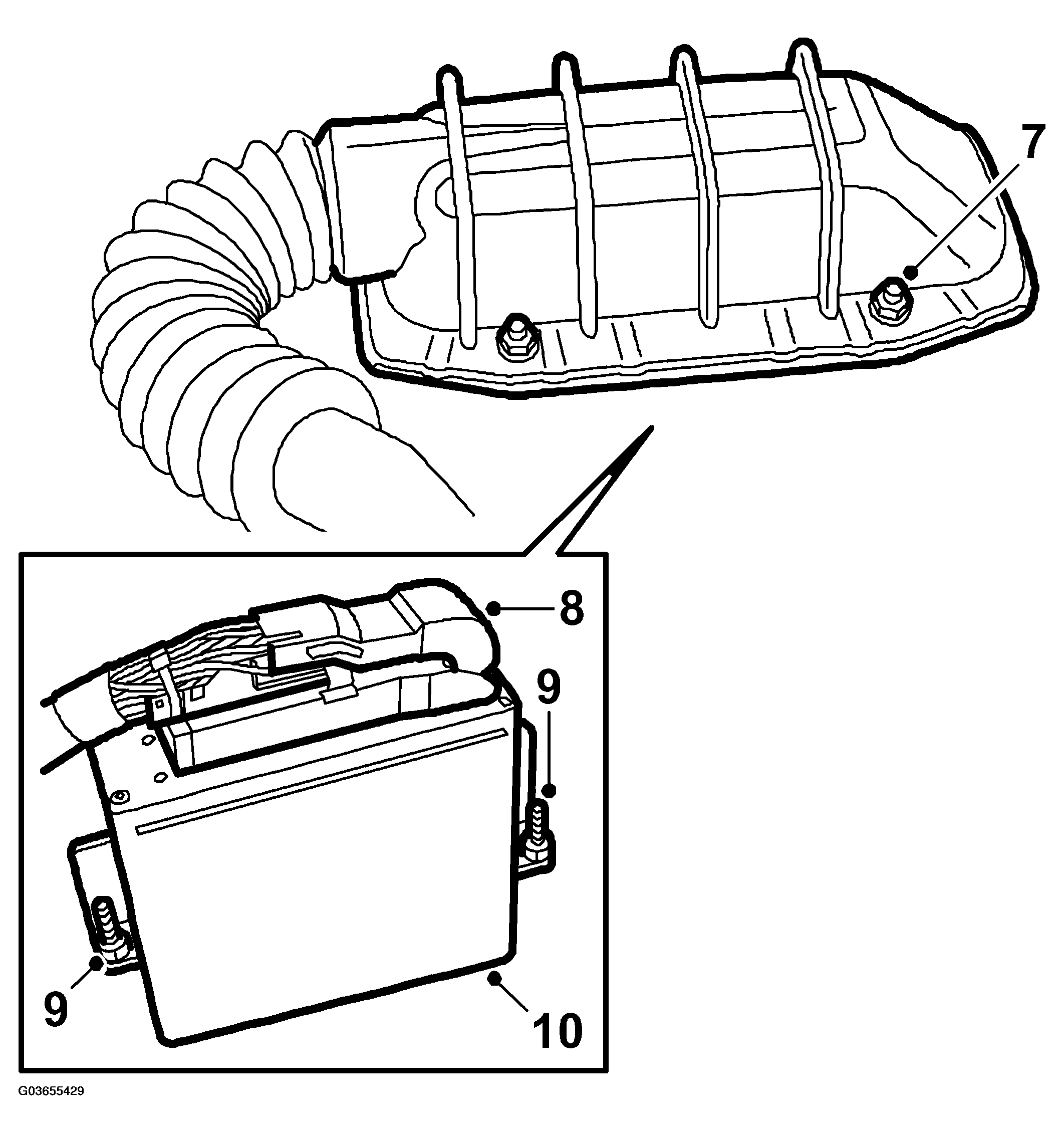

    Fig 2: Illustration For Steps 7-10
    G03655429Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Open the cover and unplug the control module's multi-pin connector by releasing the catch on the right.
  9. Undo the control module's 2 retaining nuts and remove them. A 10 mm magnetic socket will be useful for this.
  10. Lift the control module straight up.
    IMPORTANT: ESD-SENSITIVE COMPONENT
    Earth yourself by touching the car body before plugging in/unplugging components. Do not touch the component pins  . Read BEFORE CHANGING A CONTROL MODULE  before changing a control module.
