To fit

  1. Position the control module from above.

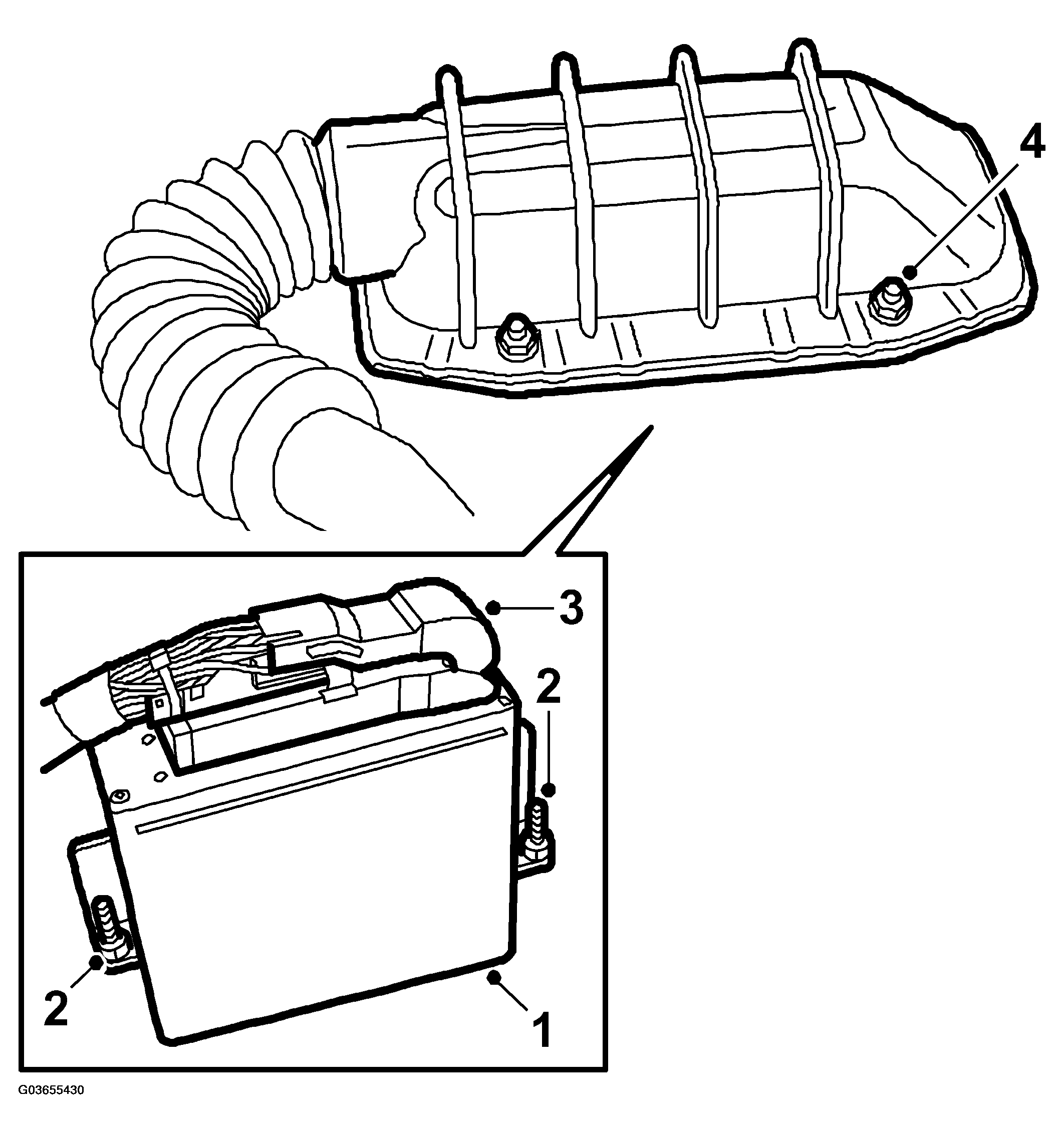

    Fig 1: Illustration For Steps 1-4
    G03655430Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the 2 mounting nuts on the control module.
  3. Spray the multi-pin connector on the control module with Kontakt 61 (part no. 30 04 520) and connect it.
  4. Fit the 4 nuts to the control module cover.
  5. Fit the windscreen cover panel. Mind the bonnet release cable's lead-through on the left-hand side.

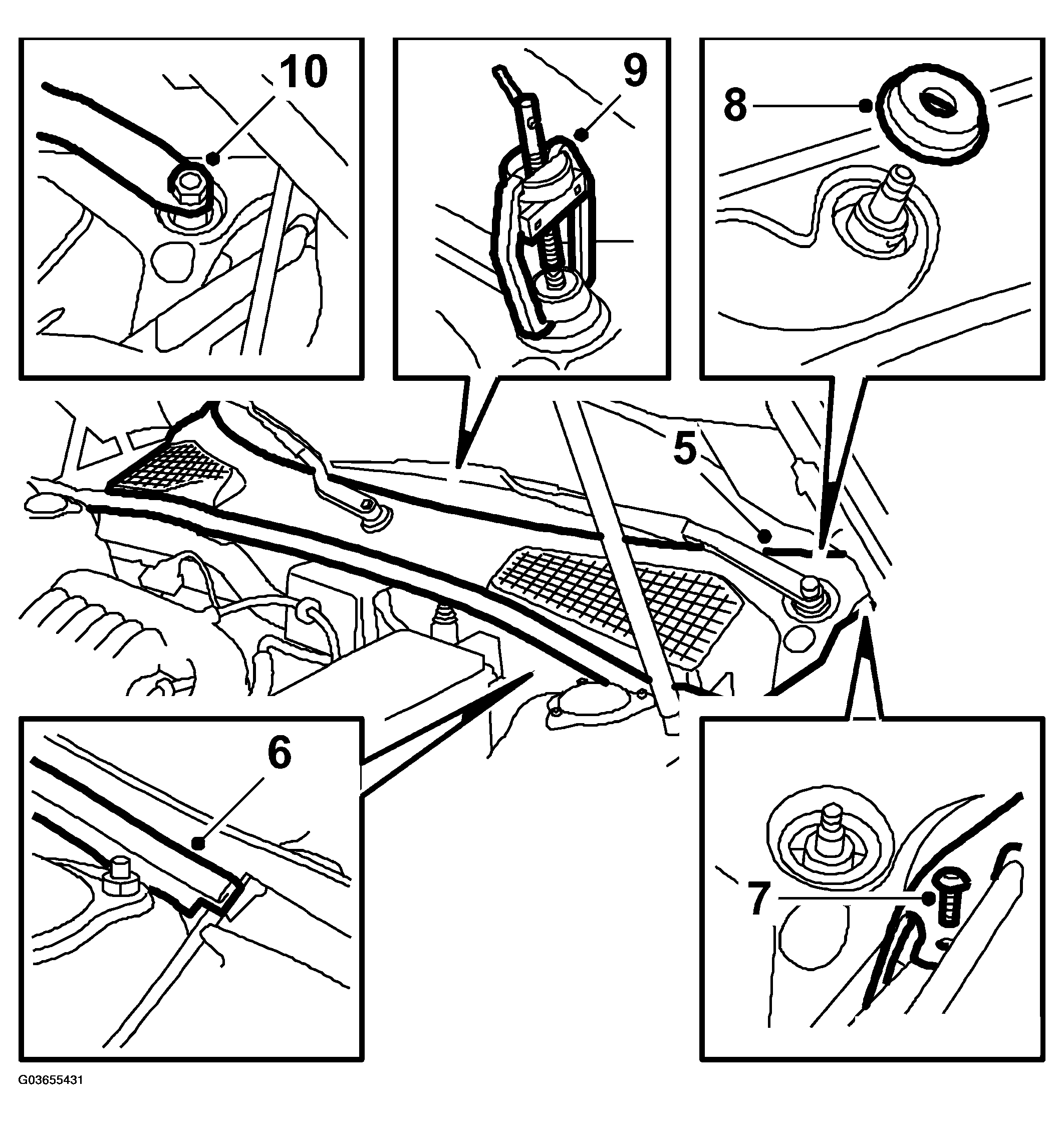

    Fig 2: Illustration For Steps 5-10
    G03655431Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the rubber seal.
  7. Fit the two screws in the short sides of the windscreen cover panel.
  8. Fit the rubber seals on the wiper spindles.
  9. Fit the wiper arms and nuts.

    Adjust the wipers to their correct position of rest according to the two markings on the windscreen.

  10. Fit the nuts to the wiper spindles with the caps on the nuts.
  11. Perform Measures after changing a control module.
  12. Reset immobilization as follows:
    • Connect TECH 2  and turn the ignition to ON
    • Select Body and TWICE
    • Select Immobilization. After 10 seconds the immobilizer is programmed.
