To remove

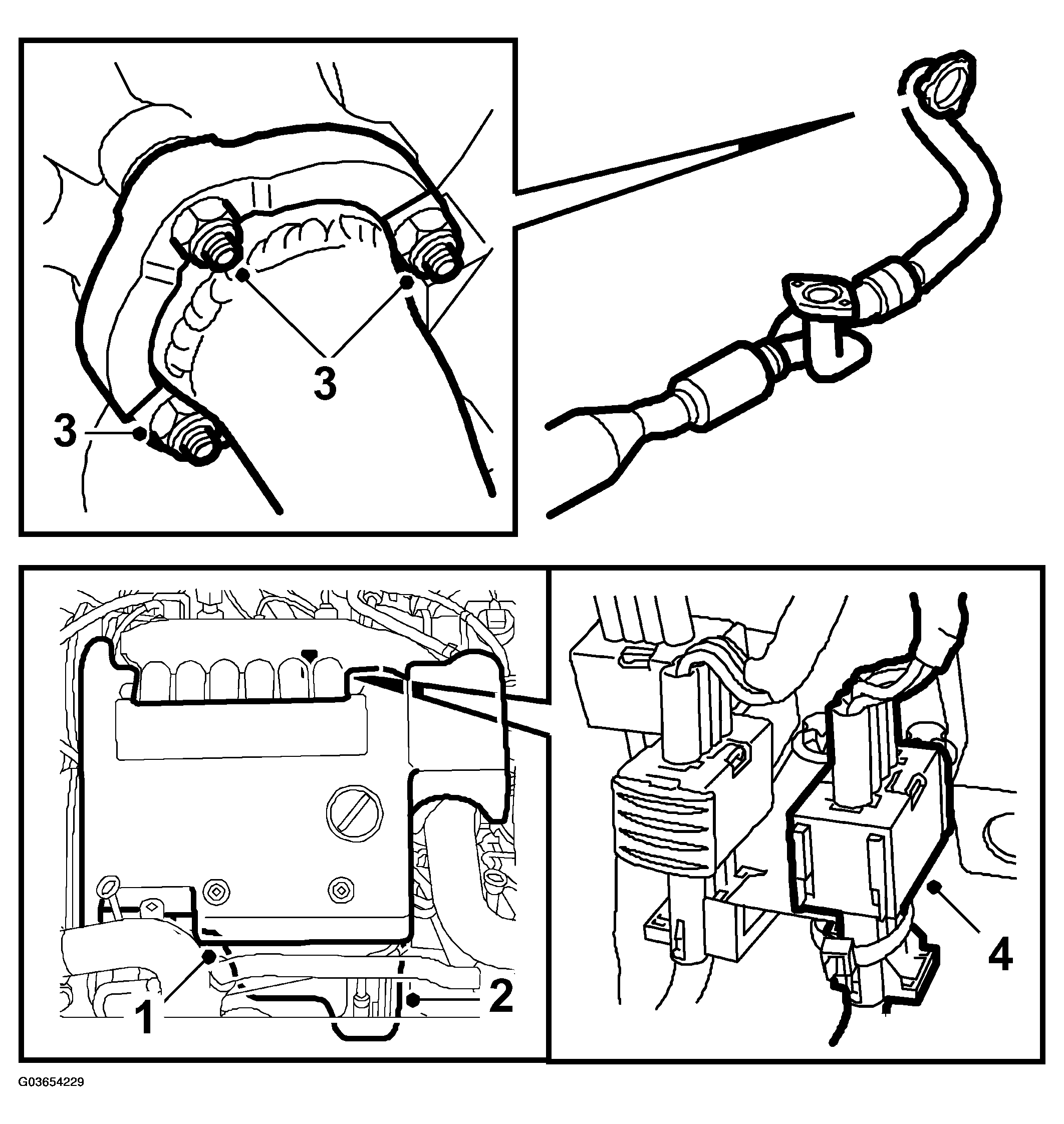

Fig 1: Illustration For Steps 2-4

Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: The oxygen sensor cable must not be of twisted type. Twisted cables exposed to vibration can break.
The oxygen sensor is sensitive to impacts and jolting and must be handled with care.

Drape wing protectors over the wings and remove the engine cover.
Remove the front exhaust manifold's heat shield.
Unbolt the front pipe from the turbo.
Unplug the oxygen sensor's connector.
Fit the front and rear lifting eyes (included in holder part No. 83 95 287). The rear lifting eye fits on the rear of the rear cylinder head while the front lifting eye is fitted by undoing the water pipe's retaining bolt, on the side of the front cylinder head, sufficiently to allow the lifting eye to be hooked on it. Fit the holder (included in holder, part No. 83 95 287), and 83 94 850 LIFTING BEAM and raise the engine.

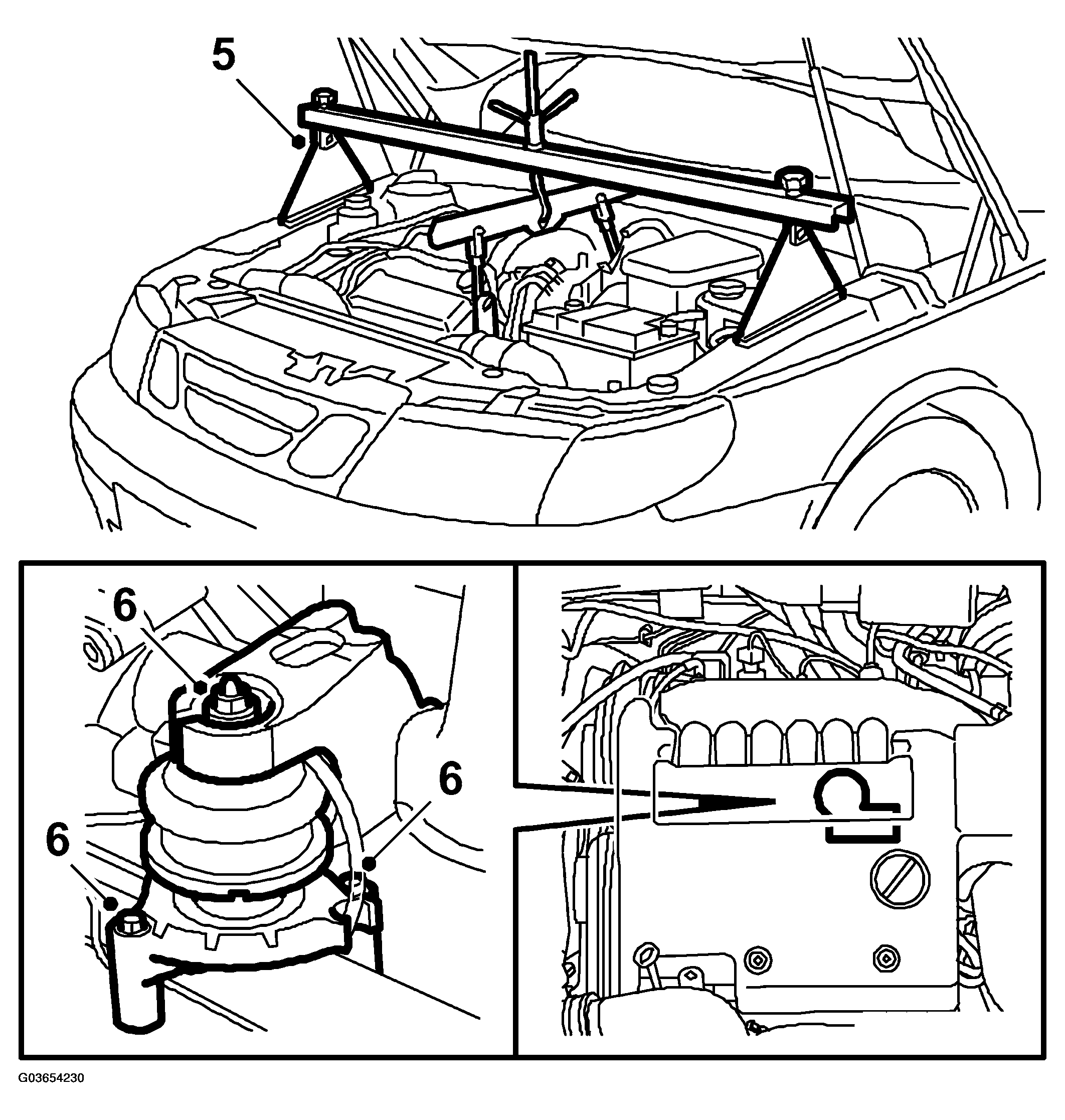

Fig 2: Illustration For Steps 5-6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the engine mounting's upper lock nut and its subframe retaining bolts.
Raise the car.
Snip the cable tie securing the oxygen sensor cable. Note the way the cable is run and lower the cable.

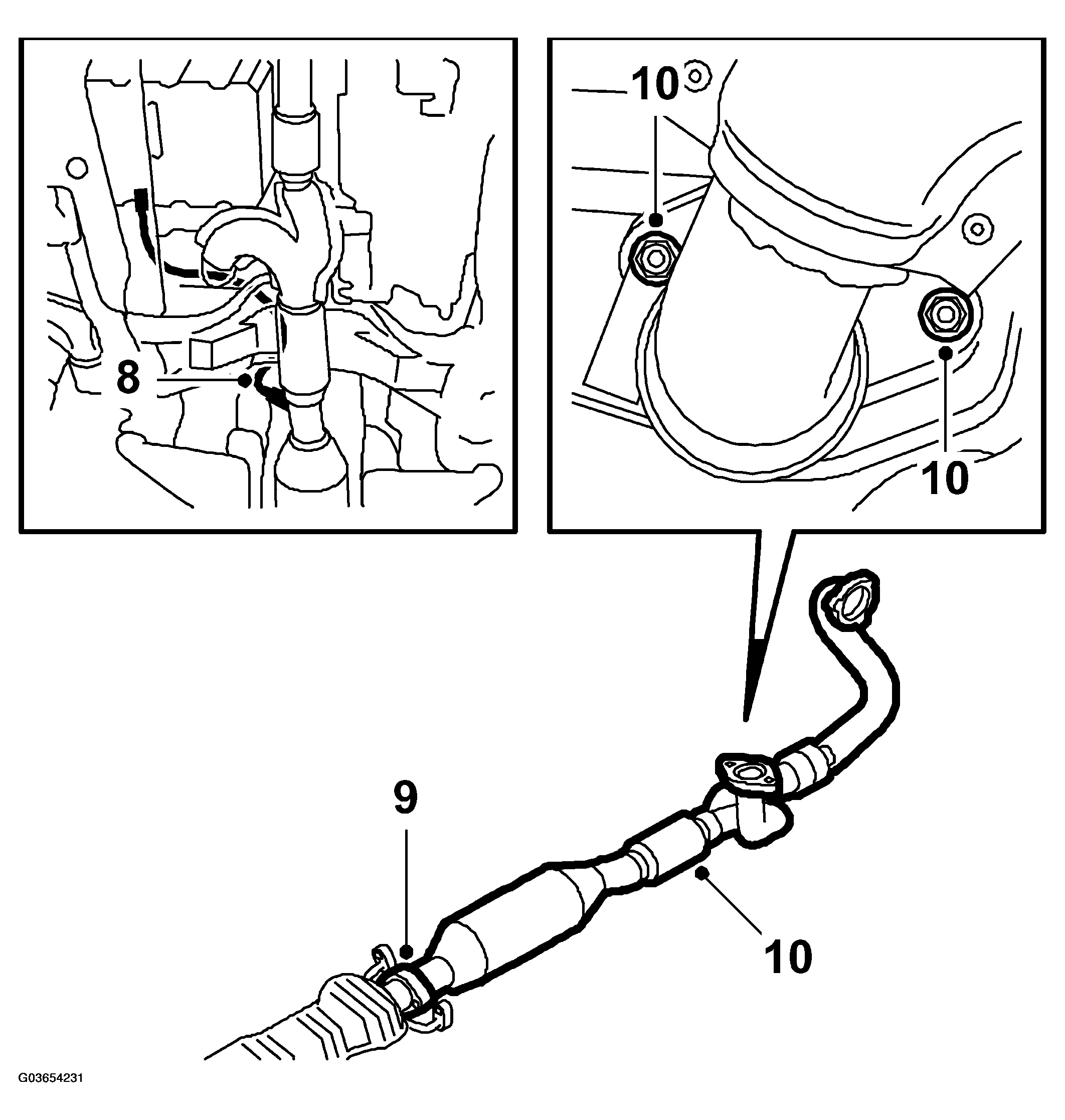

Fig 3: Illustration For Steps 8-10
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Separate the pipe joint between the front and rear exhaust systems.
NOTE: To ease disassembly of the front exhaust system, attach a 83 95 212 Cable tie around the front pipe.
Detach the front exhaust pipe from the rear exhaust manifold and lower away the front exhaust system.
Unbolt the engine mounting's upper bracket from the gearbox. Remove the bracket downwards.

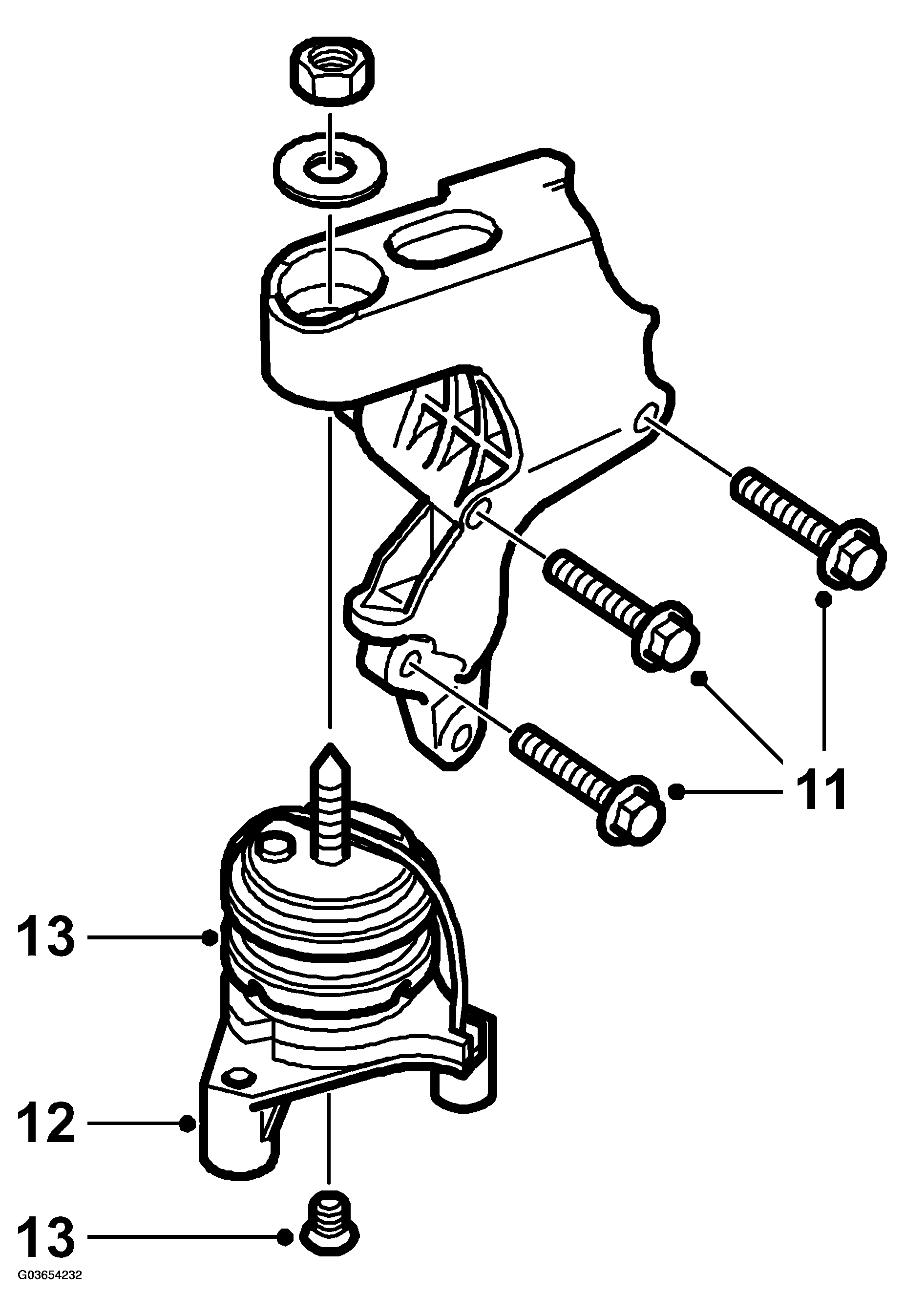

Fig 4: Illustration For Steps 11-13
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the engine mounting with lower bracket. Remove the engine mounting downwards.
Unbolt the engine mounting from the lower bracket.
