Alarm Tripped
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

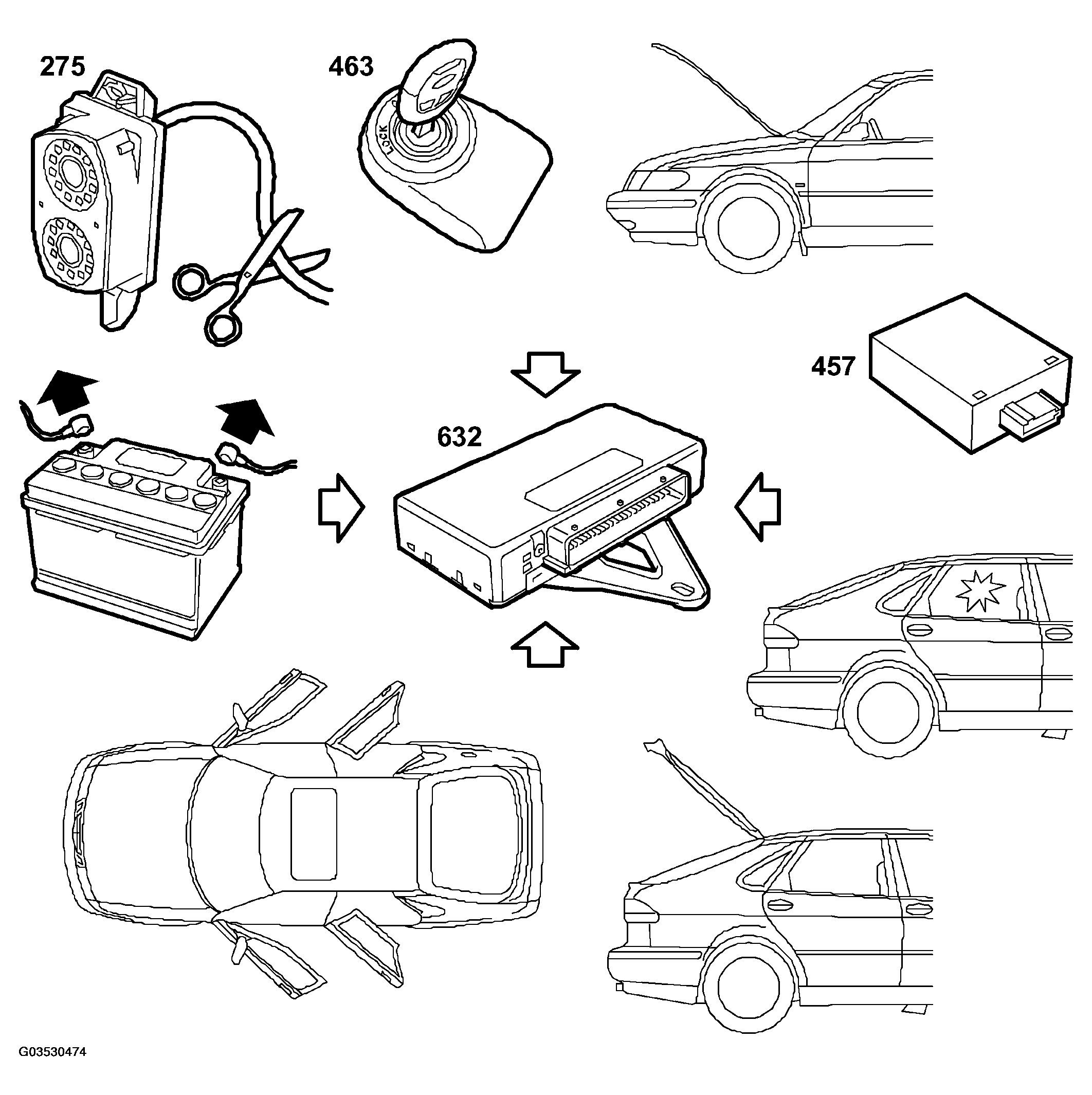

When the alarm is armed, it is tripped if alarm information reaches the TWICE control module at the connections given in the following situations:
PINOUT REFERENCE
| Driver's door switch grounded | Pin 61 |
| Passenger door switch grounded | Pin 60 |
| Left rear door switch grounded | Pin 12 |
| Right rear door switch grounded | Pin 36 |
| Luggage compartment switch grounded | Pin 35 |
| Bonnet switch grounded | Pin 41 |
| Signal from glass breakage sensor | Pin 58 |
| Signal from tilt sensor | Pin 19 |
| Ignition turned ON with wrong key or ignition lock bypassed | Pin 16 |
| Any wires to the siren cut | Pin 29 |
| Car battery disconnected |
When the alarm is tripped, the siren sounds for 30 seconds and the direction indicators flash for 5 minutes. If a door is open, this is repeated 10 times .
To stop an alarm, it must be disarmed with the remote control. This is done by pressing one of the UNLOCK buttons on the remote control or by turning the key in the ignition .
IMPORTANT:
This type of alarm tripping is standard (on delivery). The flash and sound times can be reprogrammed as required for the market concerned.
