Connected Components
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTED COMPONENTS

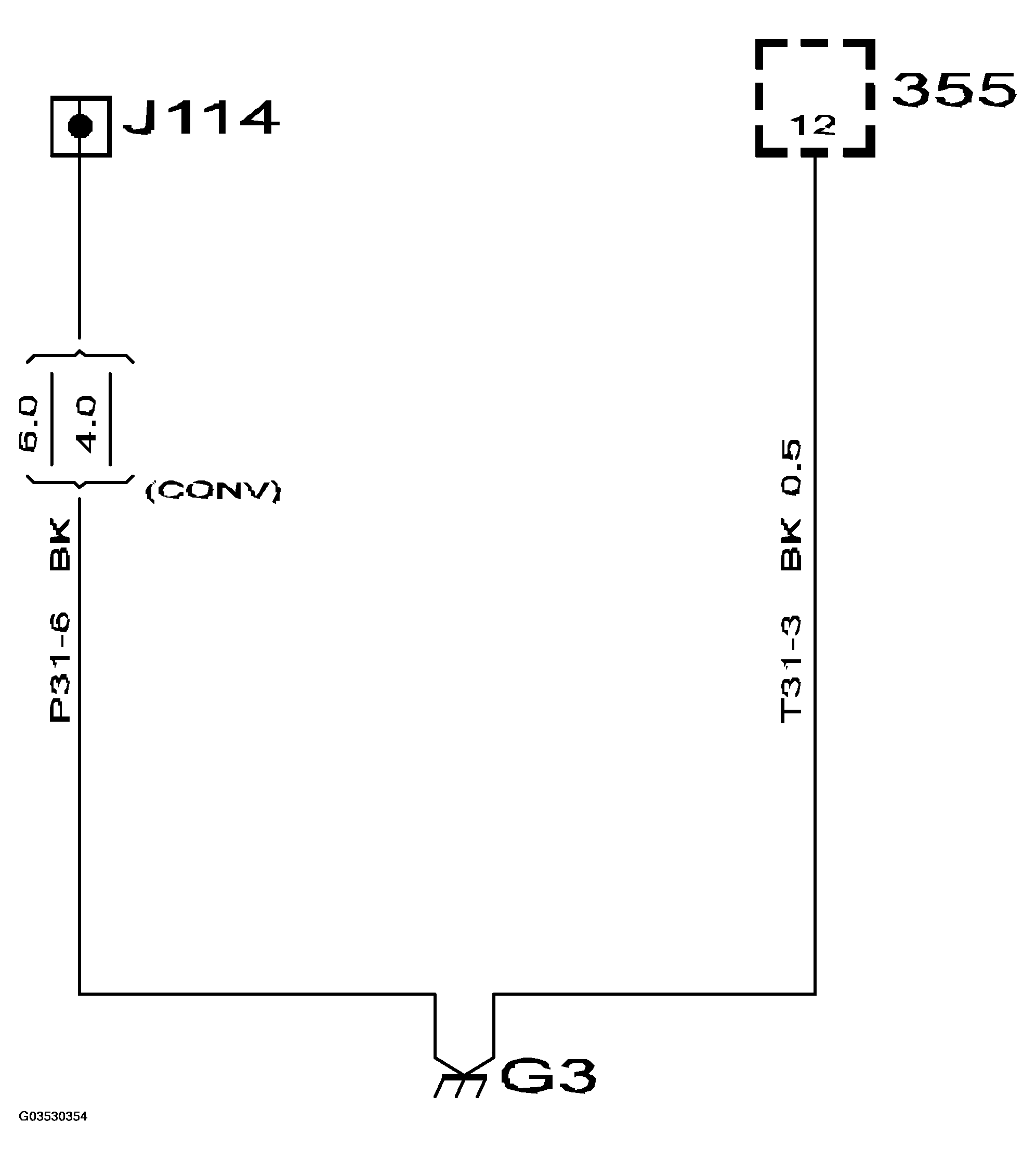

| 355h | Connection, CD changer |
| Via crimp J114 ; CRIMP J114, REAR HARNESS | |
| 13RL | Rear light bulb, LH |
| 13RR | Rear light bulb, RH |
| 27RL | Rear direction indicator bulb, LH |
| 27RR | Rear direction indicator bulb, RH |
| 30RL | Brake light bulb, LH |
| 30RR | Brake light bulb, RH |
| 55 | Luggage compartment light bulb |
| 115 | Heating element, rear window (CONV) |
| 225LH | Rear left reading lamp (CONV) |
| 225RH | Rear right reading lamp (CONV) |
| 323 | Motor, fuel pump |
| 355h | Connection, audio system amplifier speaker output |
| 410 | Heater element, fuel filter |
| 579a | Hydraulic pump pressure relay, convertible |
| 579b | Hydraulic pump pressure relay, convertible |
| 647a/b | Soft top control valve, convertible |
| 648a/b | Soft top control valve, convertible |
| Via crimp J163
; CRIMP J163, REAR HARNESS Which is connected to crimp J114 |
|
| 15 | Licence plate light bulb |
| 30RC | High-level brake light bulb |
| 32HL | LH reversing light bulb |
| 32HR | RH reversing light bulb |
| 33HL | LH rear fog light bulb |
| 33HR | RH rear fog light bulb |
| 56 | Luggage compartment illumination switch |
| 62R | Motor, rear window wiper |
| 115 | Heater element, rear window |
| 622 | Microswitch, luggage compartment lock |
| Via crimp J168
; CRIMP J114, REAR HARNESS Which is connected to crimp J114 |
|
| 359LH | Vanity mirror light bulb, LH |
| 359RH | Vanity mirror light bulb, RH |
