To Fit

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

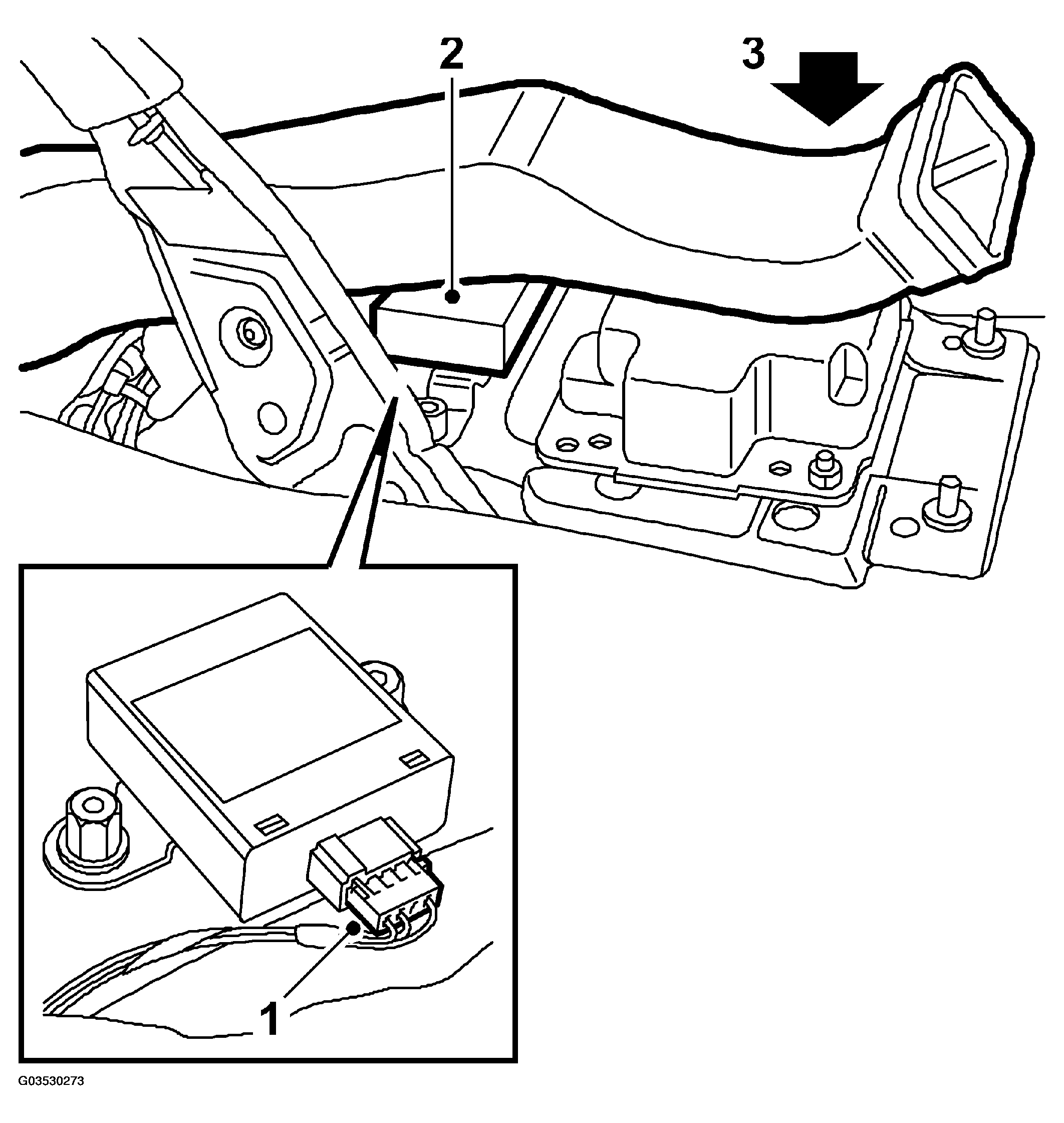

Fig 1: Illustration For Steps 1-3
G03530273Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the connector to the tilt sensor.
  2. Fit the sensor on its holder.
  3. Fit the floor duct in position.
  4. Fit the floor console in position.

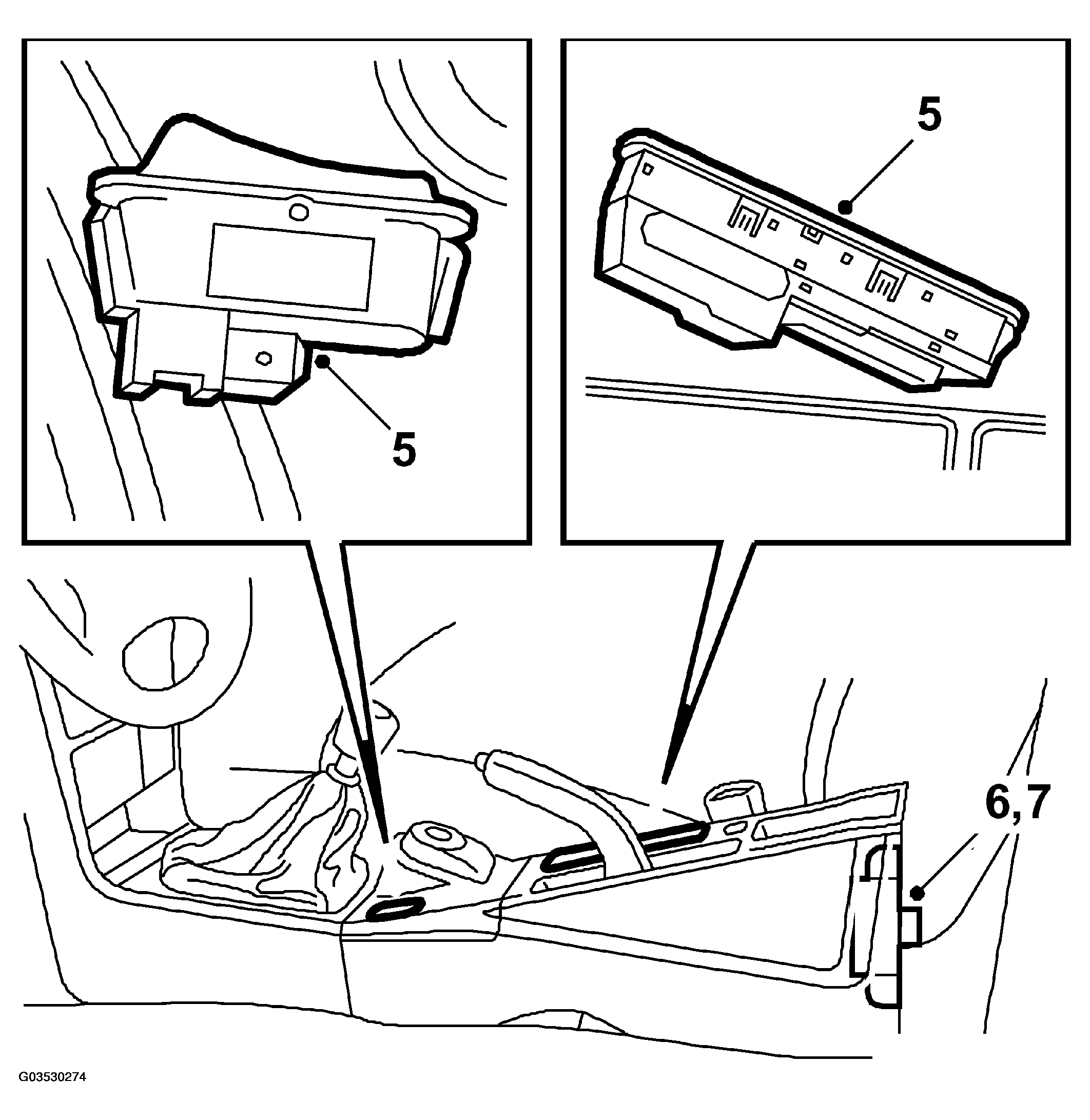

    Fig 2: Illustration For Steps 5-7
    G03530274Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the switch.
  6. Fit the remote control receiver.
  7. Fit the connector on the receiver.
  8. Screw the floor console in position with the 2 screws and 2 nuts.

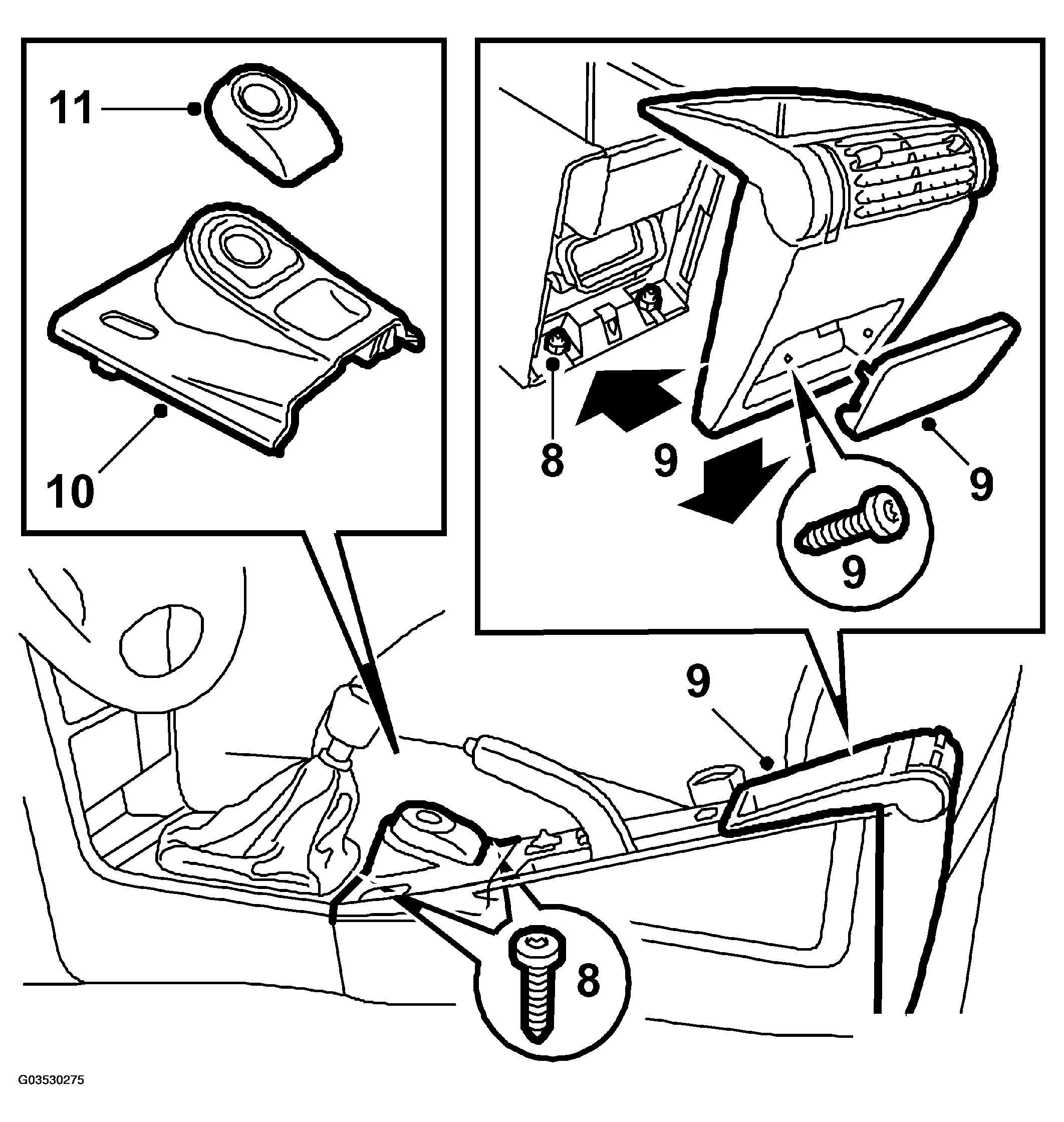

    Fig 3: Illustration For Steps 8-11
    G03530275Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Fit the rear section of the floor console.
  10. Fit the ignition switch cover.
  11. Fit the antenna unit.
