To Remove

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

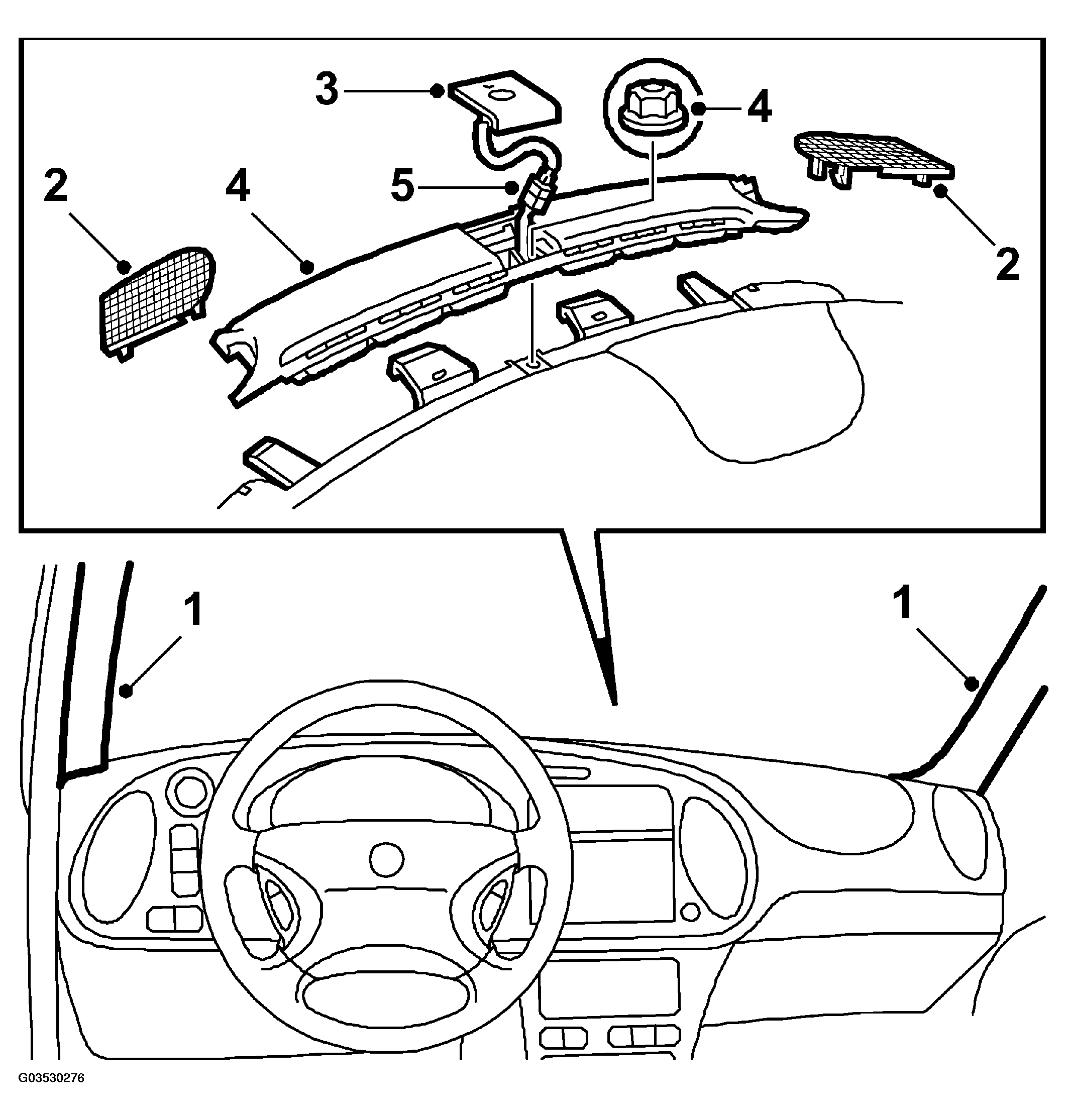

Fig 1: Illustration For Steps 1-5
G03530276Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the trim from the A-pillar by loosening the rubber strip and pulling off the trim (attached with clips).
  2. Remove the right-hand loudspeaker grille.
  3. Loosen the plate on which the LED is mounted by pushing it backwards and lifting it slightly.
  4. Remove the defroster cover by loosening the nut and lifting the cover straight upwards at the rear edge (attached by clips).
  5. Disconnect the electrical connector and remove the plate on which the LED is mounted. Remove the LED from the plate.
