Main components, interior lighting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

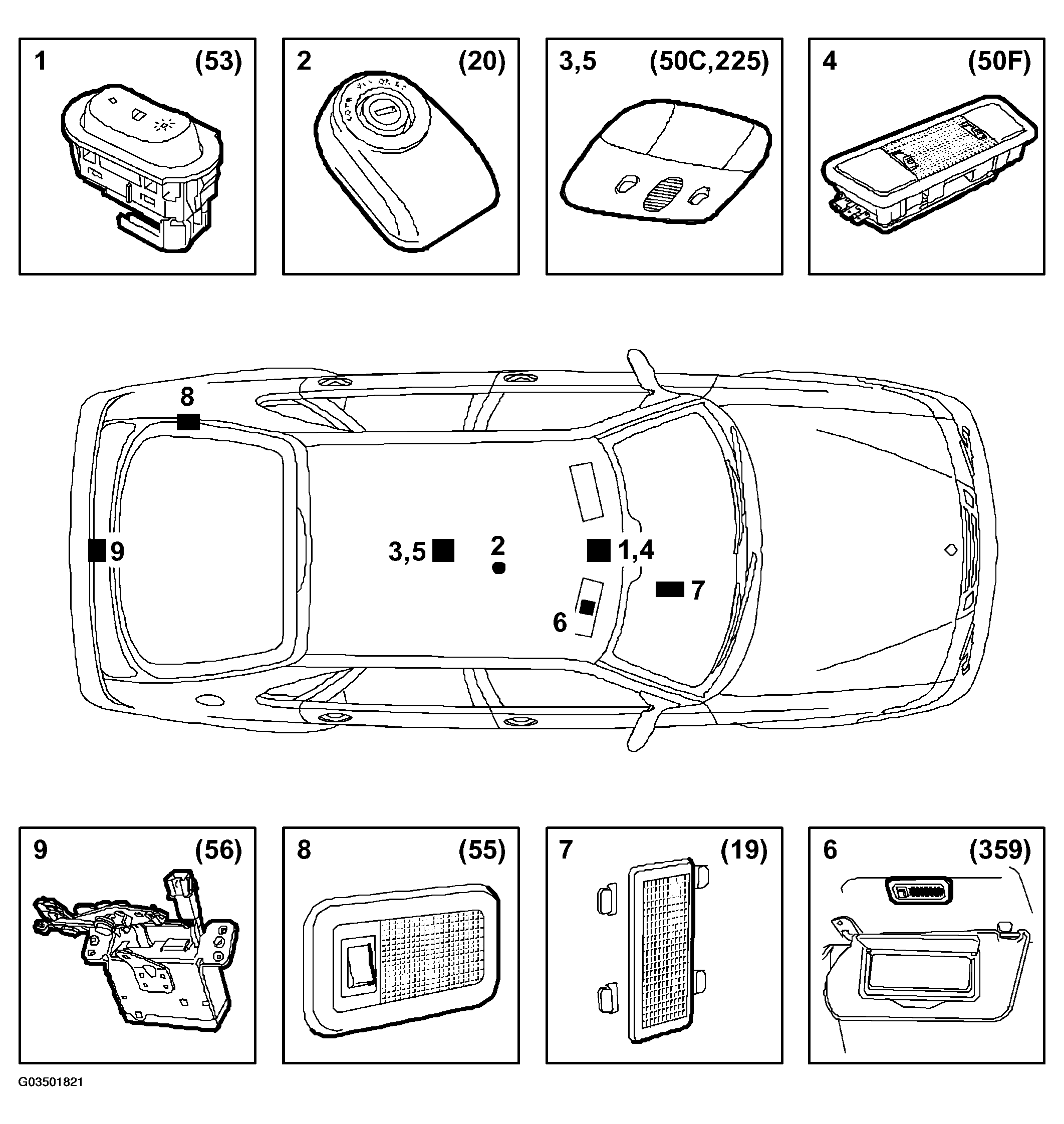

Fig 1: Interior Lighting Main Components
G03501821Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Interior lighting switch (53)
  2. Ignition switch (20)
  3. Roof lamp, middle (50C)
  4. Roof lamp, front (50F)
  5. Reading lamps (225)
  6. Vanity mirror lighting (359)
  7. Glove box light (19)
  8. Luggage compartment lighting (55)
  9. Luggage compartment light switch (56)
