To Remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

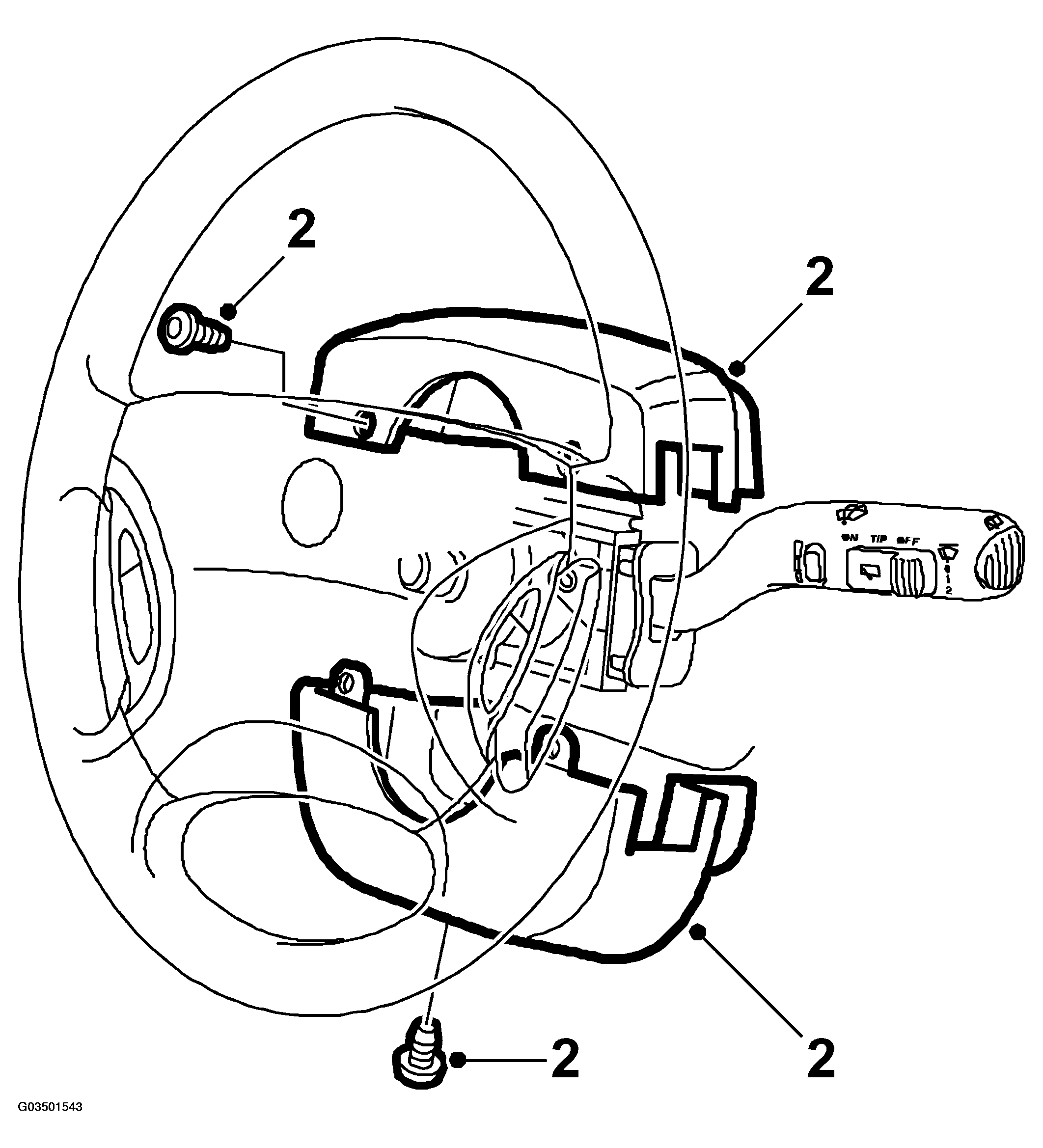

Fig 1: Illustration For Step 2
G03501543Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Pull out the steering wheel to its outermost position.
  2. Remove the steering column bearing bracket cowls (3 screws).
    NOTE: Be careful when removing because there are 4 locking hooks in the lower cowl.
  3. Pull out the stalk switch (2 clips).

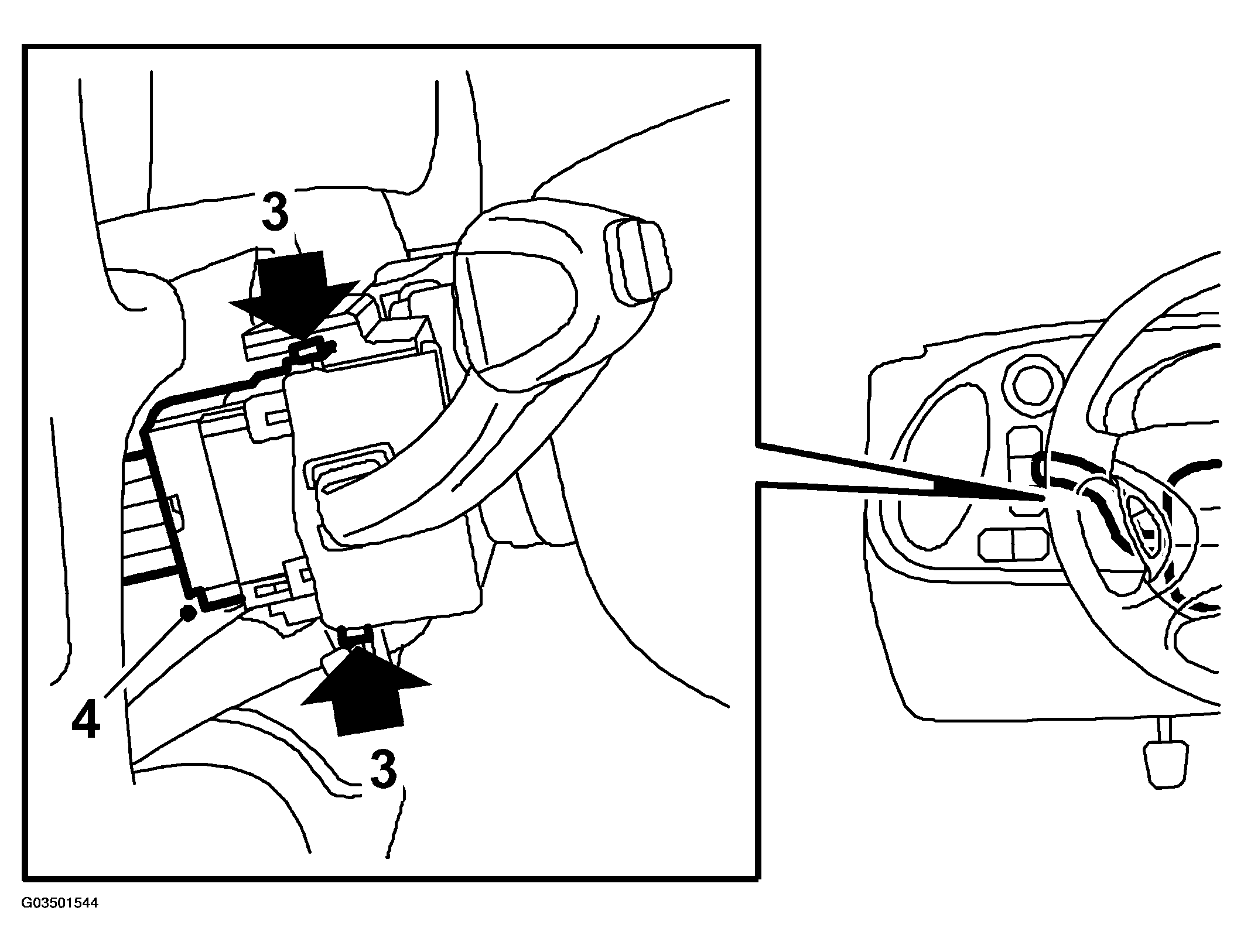

    Fig 2: Illustration For Step 3-4
    G03501544Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the 10-pin connector.
