Center Console: Installation

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put the center console in place over the gear lever.
  2. Plug in all the connectors on the center console. (Orange connector - right seat heater, Yellow connector - left seat heater).
  3. Install the expansion rivets that secure the console to the dashboard (first, press in the rivet and then the center pin). DO NOT tighten the rear retaining screw as it also secures the floor console.
  4. On Automatic Climate Control (ACC) equipped models, plug in the ACC module connector and press the module into place.

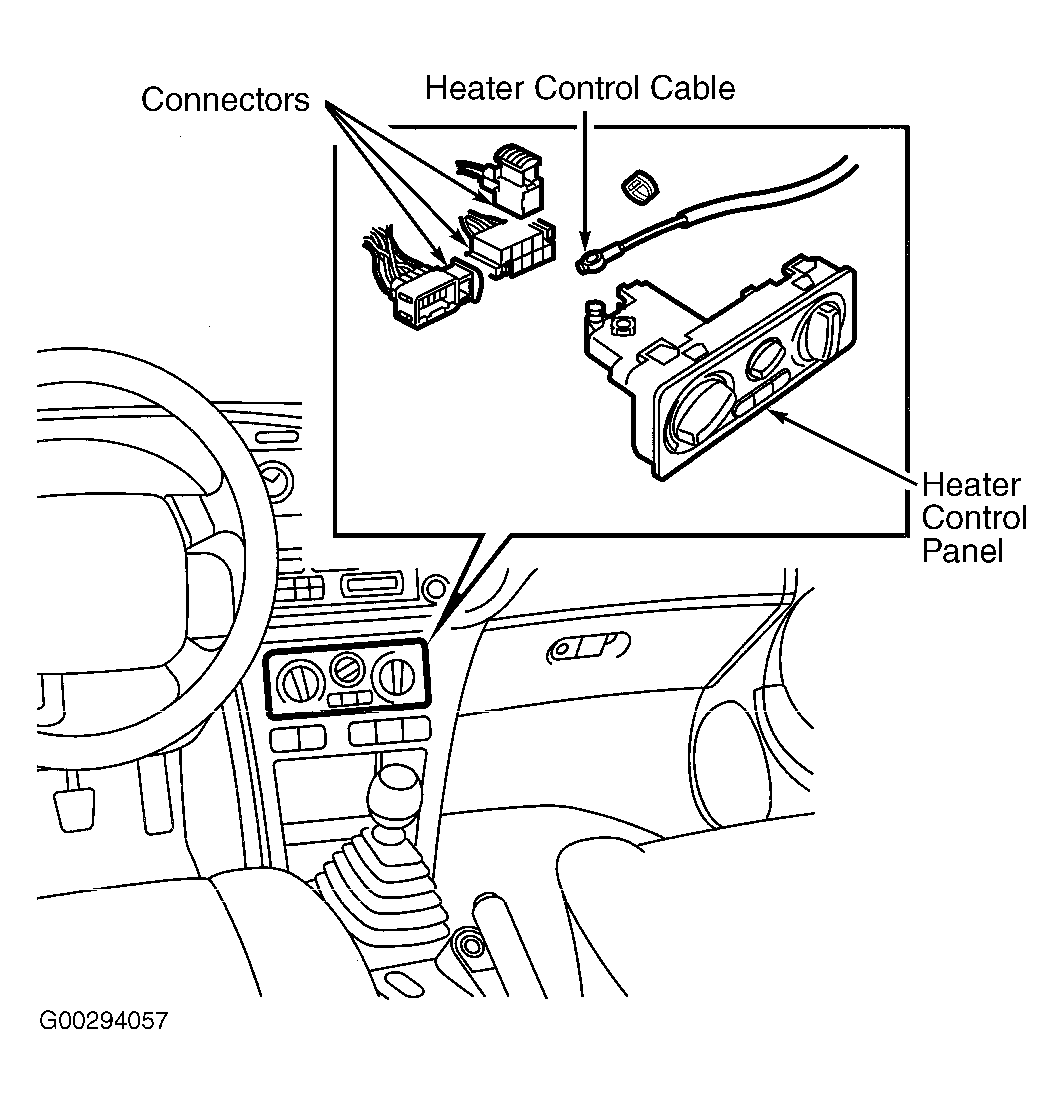

  5. On models not equipped with ACC, install the heater control cable to the vent control module. The cable is held with an eyebolt and secured with a lock washer. See Figure .
  6. Plug in the connectors for the vent control lighting, fan speed, electrically heated rear window and air recirculation.
  7. Attach the air distribution shaft to the air distribution control.
  8. Install the heater control panel.

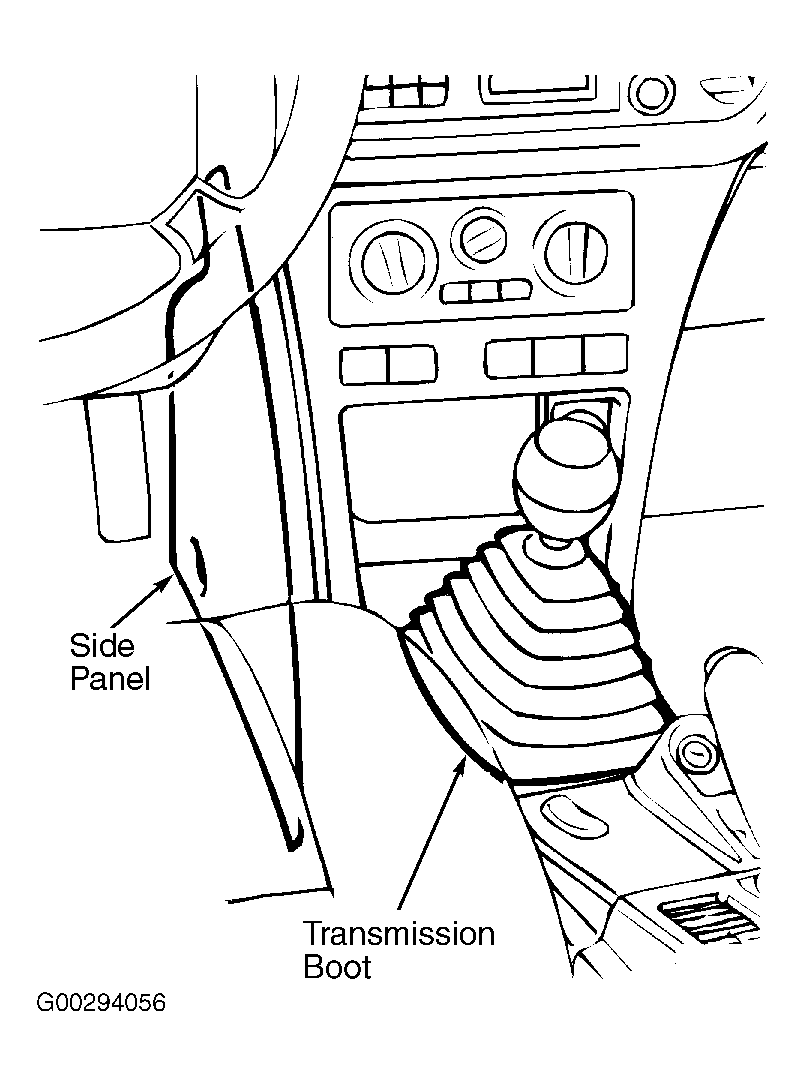

  9. On manual transmission equipped models, install the gear lever boot (fastened with clips). See Figure . Install the rim.
  10. Install the right and left side panels by pressing each part into the center console and tightening the retaining screws (one screw is located behind the glove compartment).
