Pressure sensor, A/C (620)

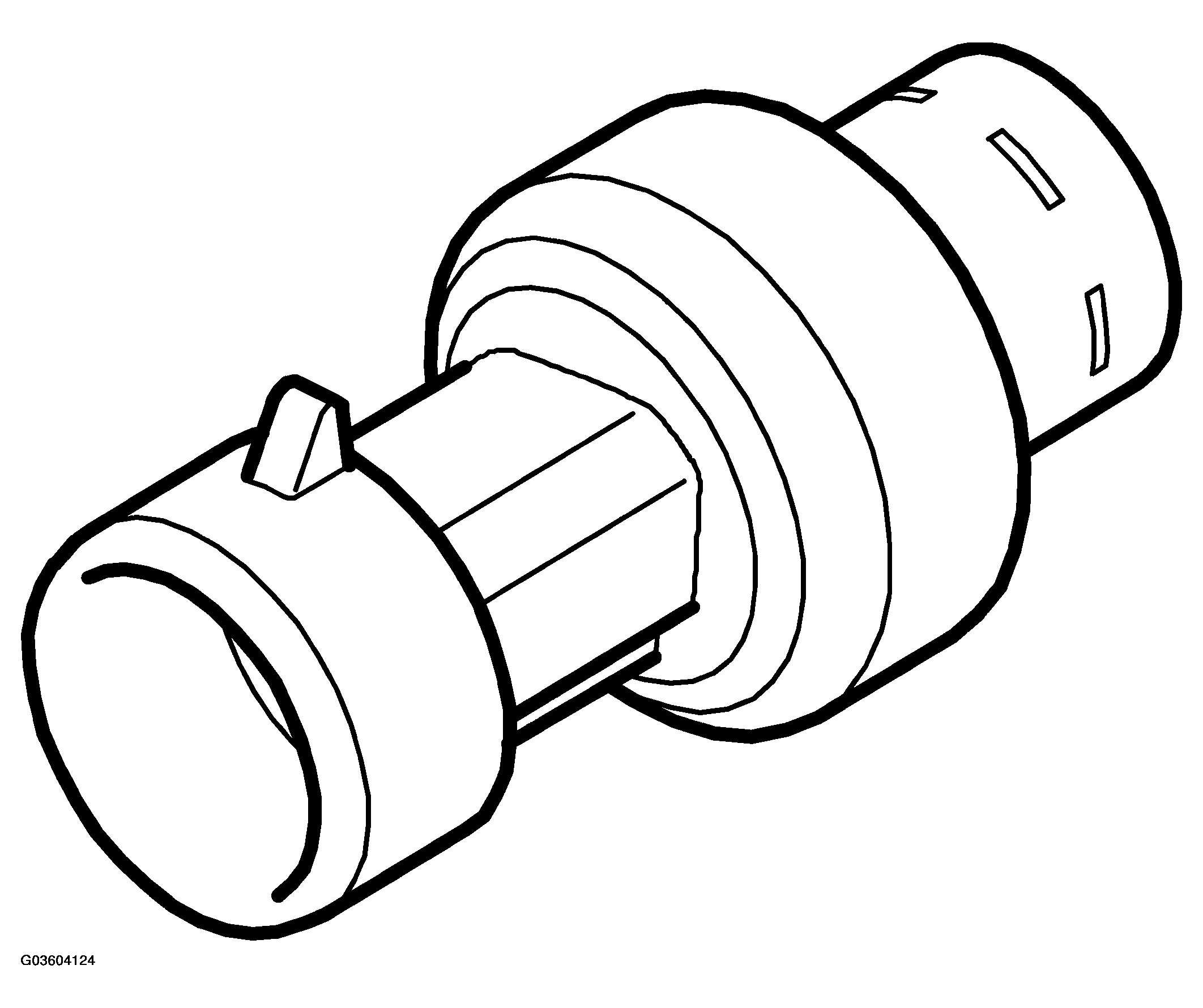

Fig 1: Identifying A/C Pressure Sensor (620)
G03604124Courtesy of SAAB-SCANIA OF AMERICA, INC.
PRESSURE SENSOR TECHNICAL DATA

Power supply, pin B 5 V
Ground Pin A
Voltage on Pin C
280 kPa (2.8 bar) approx. 0.5 V
27000 kPa (270 bar) approx. 3.8 V
