Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T8 Fuel Control System (Late; 9440) >> Fault Diagnosis, Symptoms >> Check Engine lamp, faulty function >> Notes

Check Engine lamp, faulty function: Notes

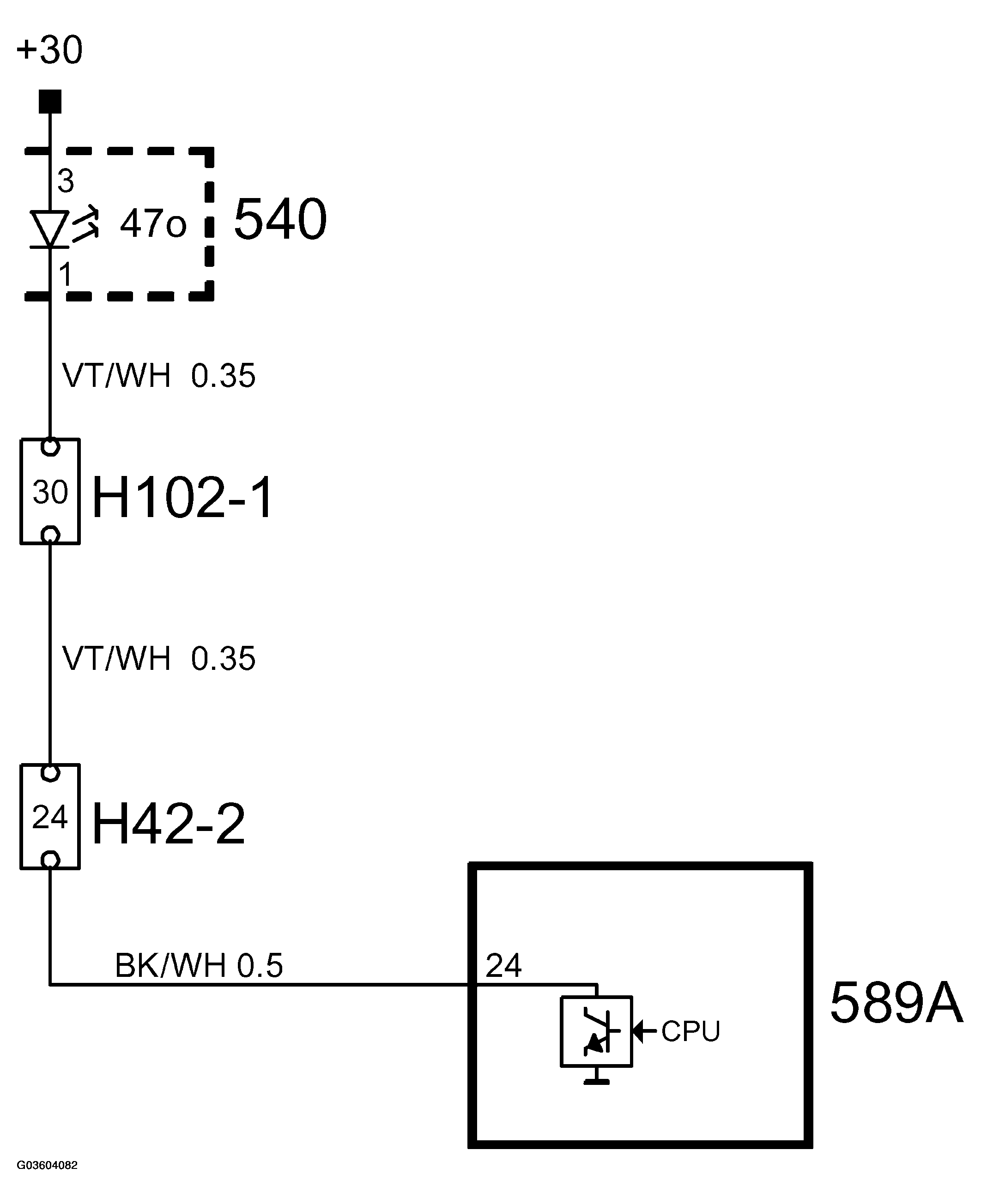

Fig 1: Identifying Engine Lamp Faulty Function Wiring Diagram

G03604082

Courtesy of SAAB-SCANIA OF AMERICA, INC.
