Grounding point G34S: Notes

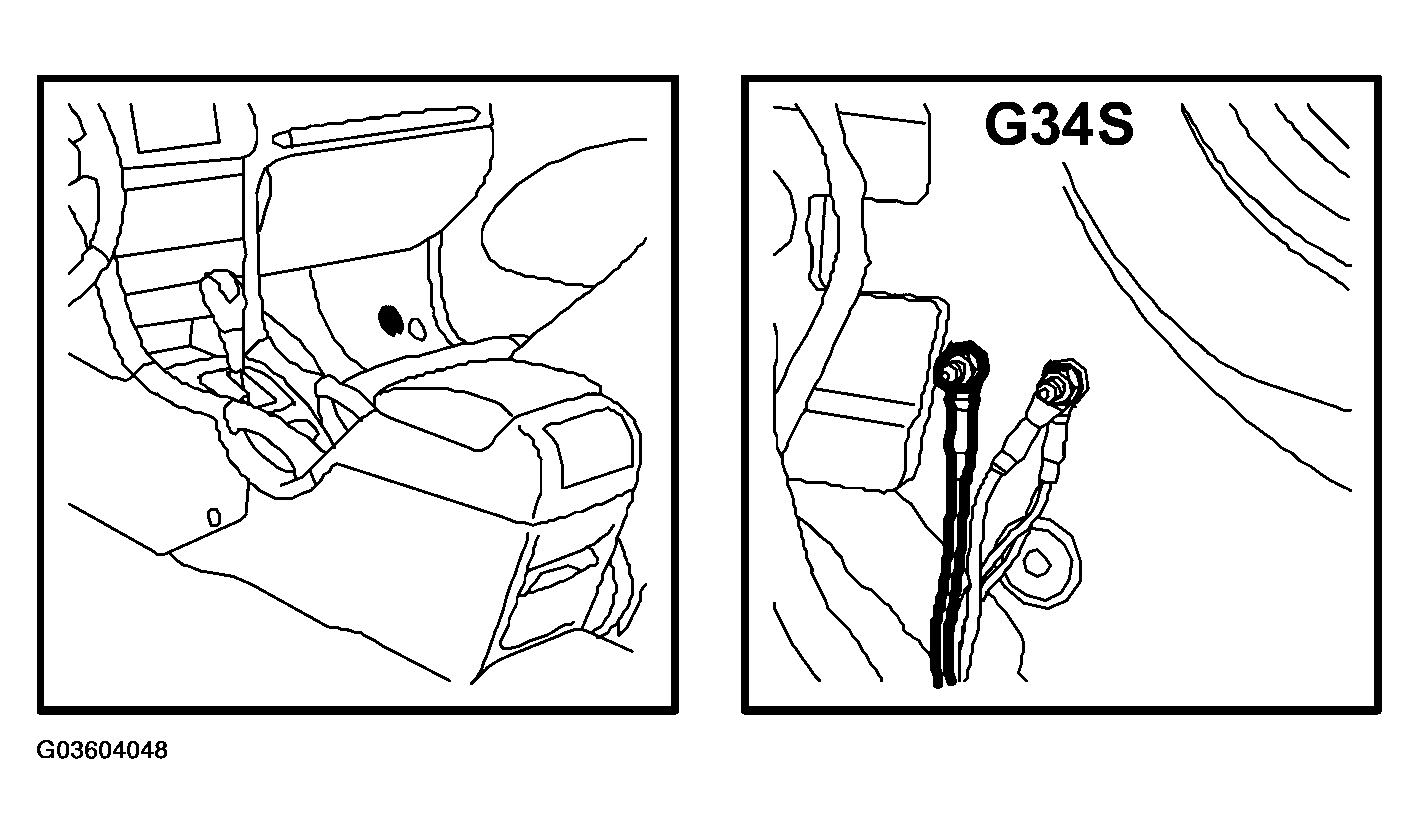

Fig 1: Identifying Grounding Point G34S
G03604048Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location  : By floor below RH A-pillar (green tape)

The grounding point is connected to the G43 grounding point via crimp connectors J108 and J80.
