To remove

  1. Move the seat as far back as possible.
  2. Remove the center console front side piece.

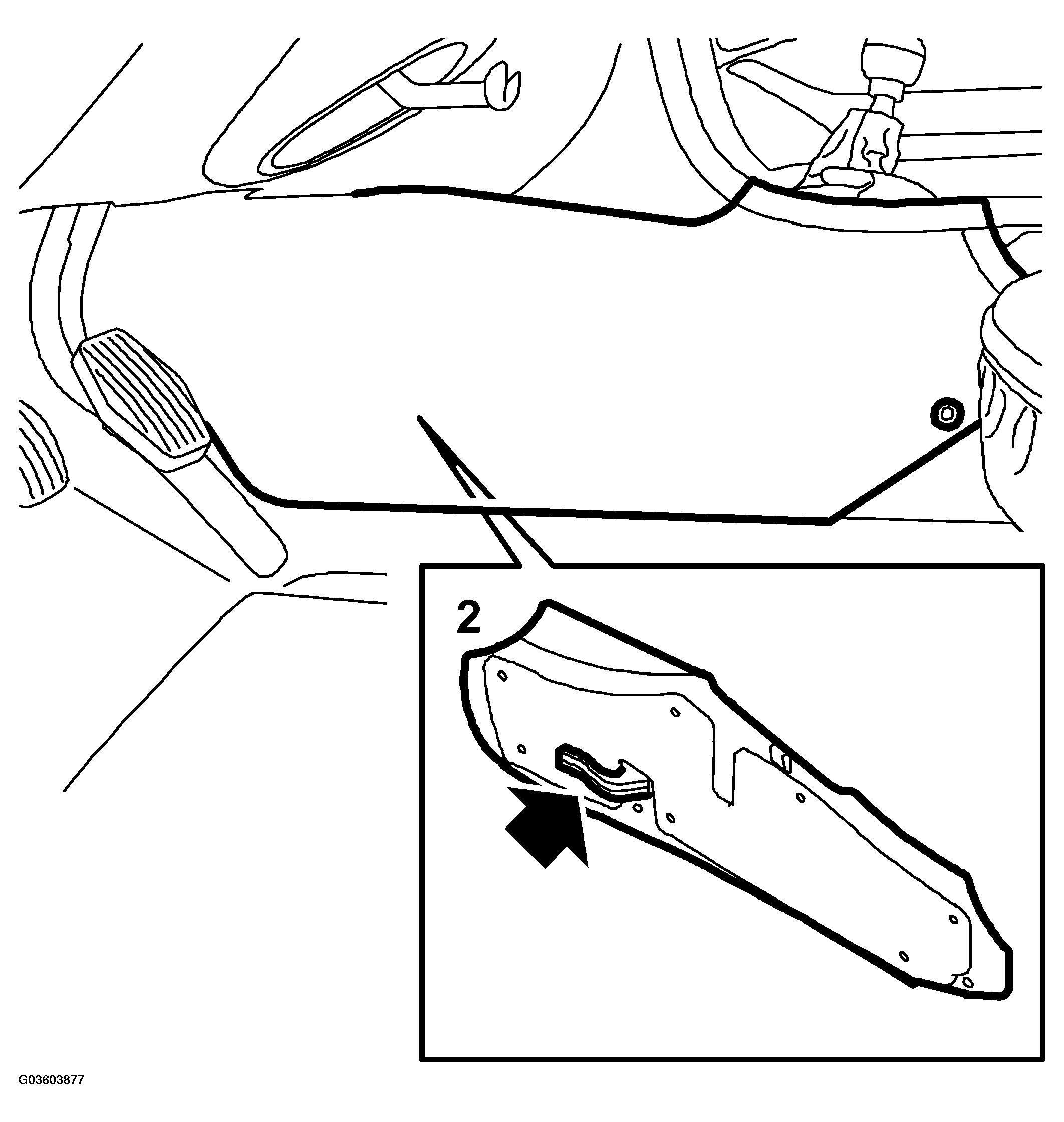

    Fig 1: Illustration For Step 2
    G03603877Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the 2 sound insulating baffle screws from the climate housing and instrument panel.

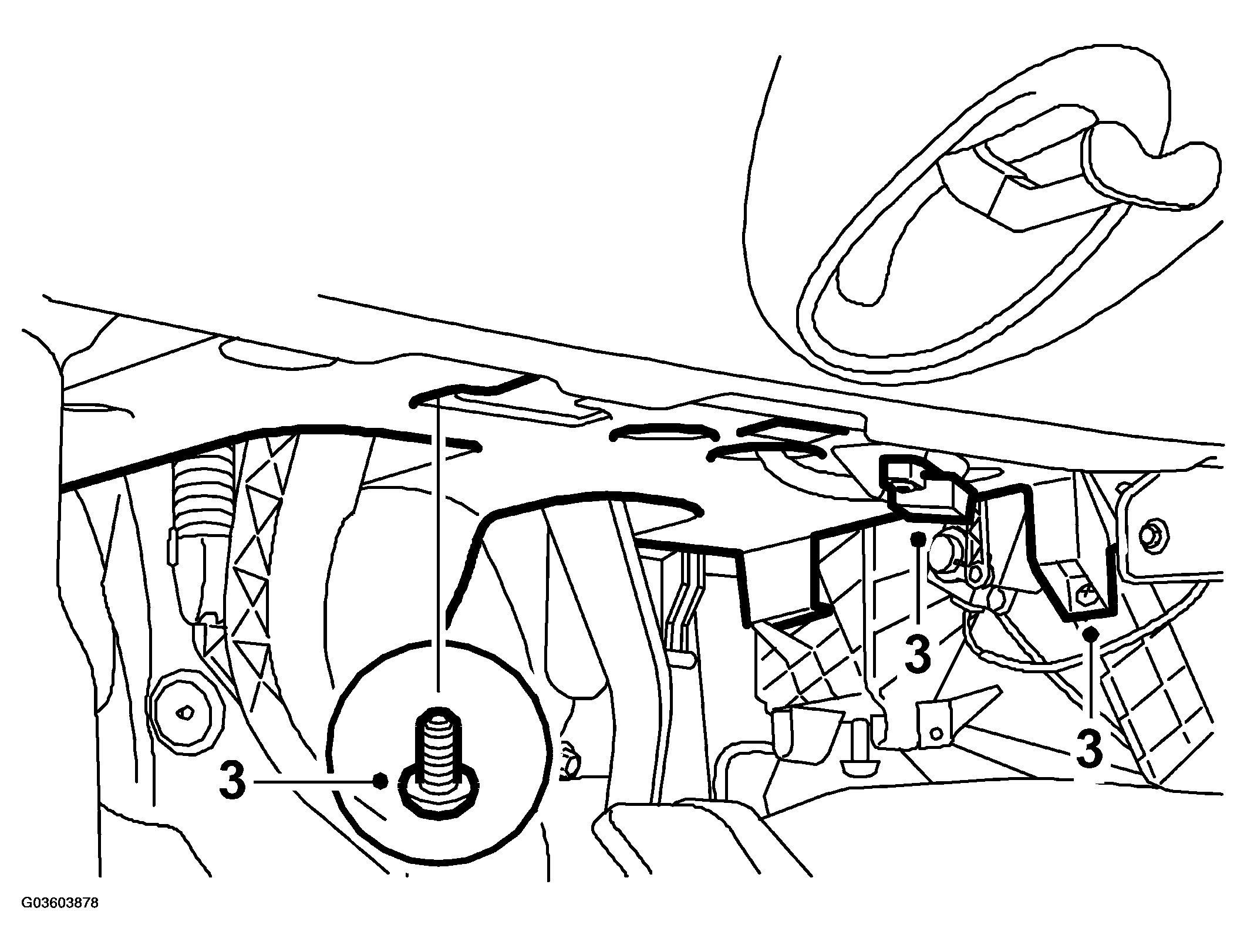

    Fig 2: Illustration For Step 3
    G03603878Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Lower the sound insulating baffle and unplug the connector to the position sensor.

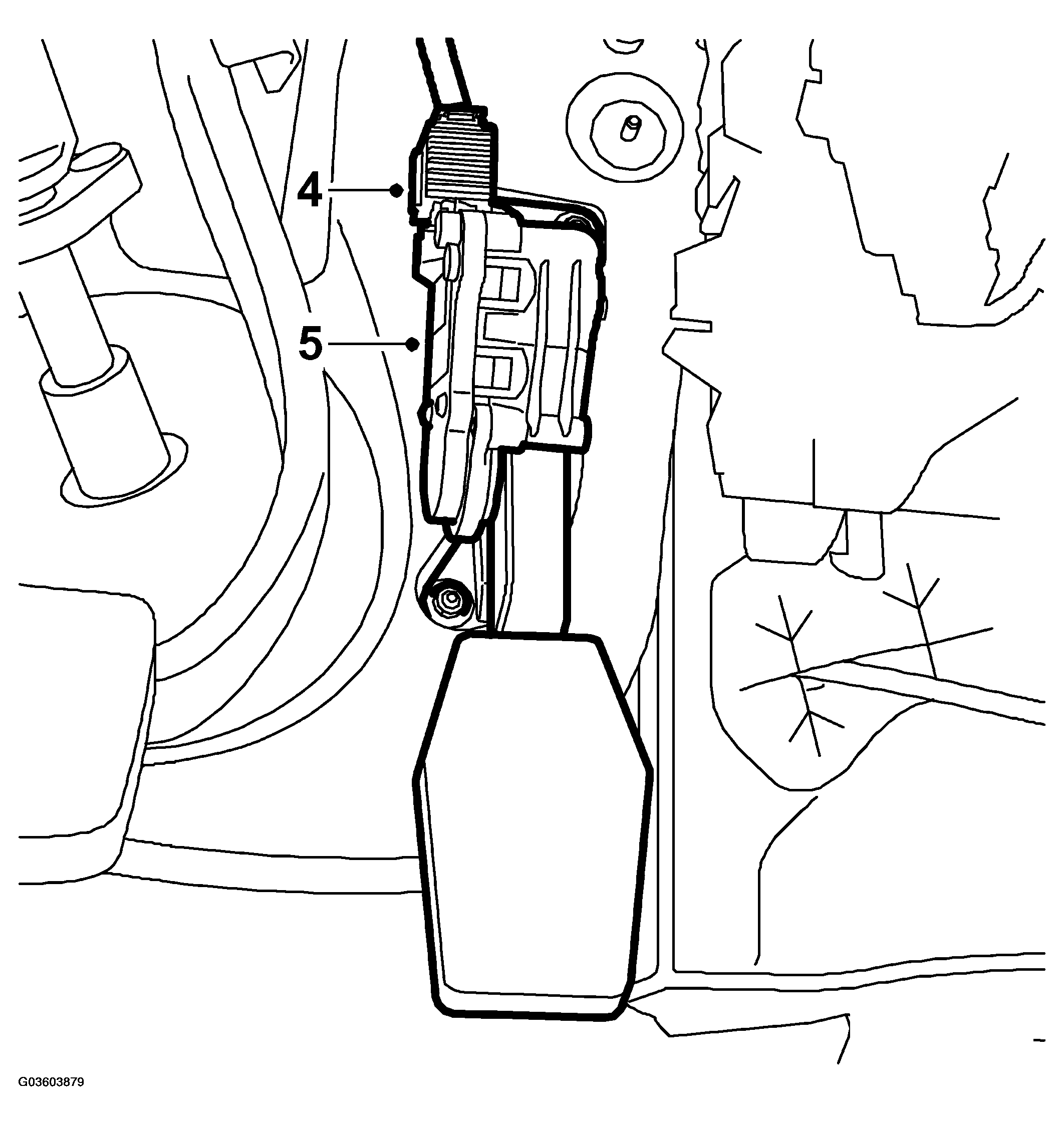

    Fig 3: Illustration For Steps 4-5
    G03603879Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the three position sensor nuts.
