DTC P1531: Pedal Position Sensor 1 and 2 Circuit. Adapted Sum Out of Range.: Notes

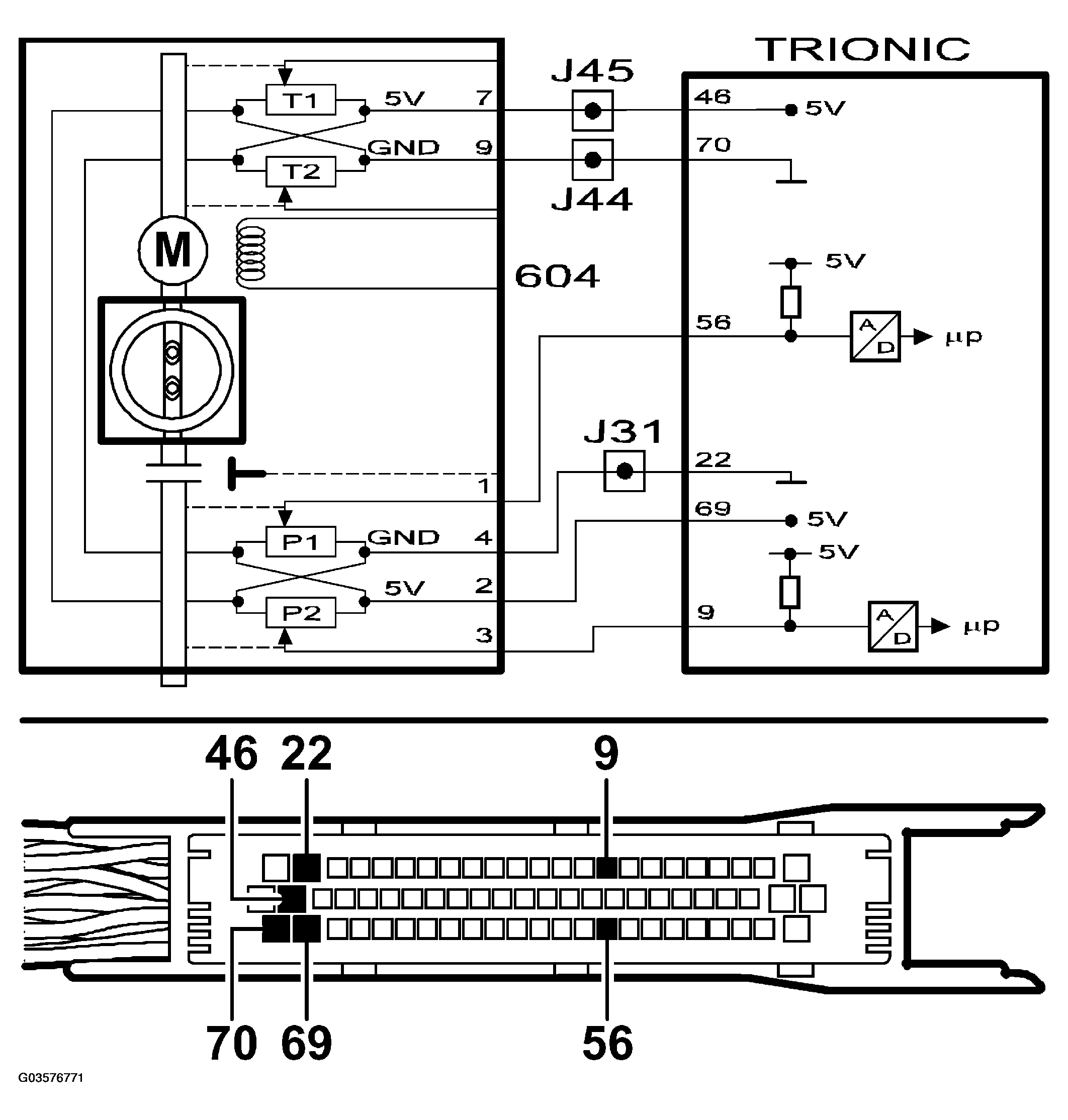

Fig 1: Pedal Position Sensor 1 And 2 Circuit Diagram - Adapted Sum Out Of Range
G03576771Courtesy of SAAB-SCANIA OF AMERICA, INC.
