Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Fault Diagnosis Fault Codes >> DTC P1444: Canister Close Valve Circuit. Open/Short to Ground. >> Notes

DTC P1444: Canister Close Valve Circuit. Open/Short to Ground.: Notes

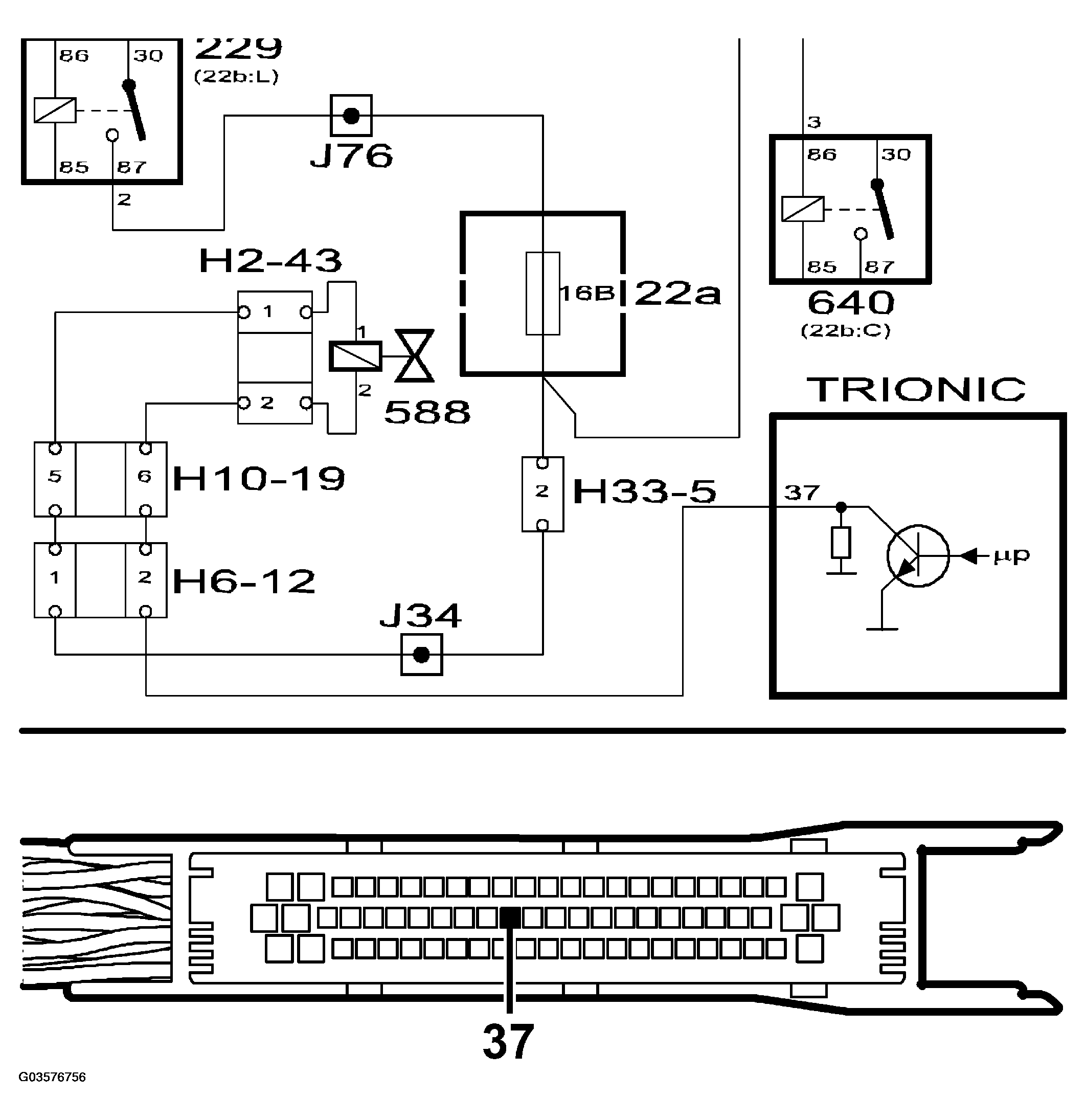

Fig 1: Canister Close Valve Circuit Diagram - Open/Short To Ground

G03576756

Courtesy of SAAB-SCANIA OF AMERICA, INC.
