DTC P1442: EVAP Small Leakage In System And Malfunctional Fuel Level Sensor.: Notes

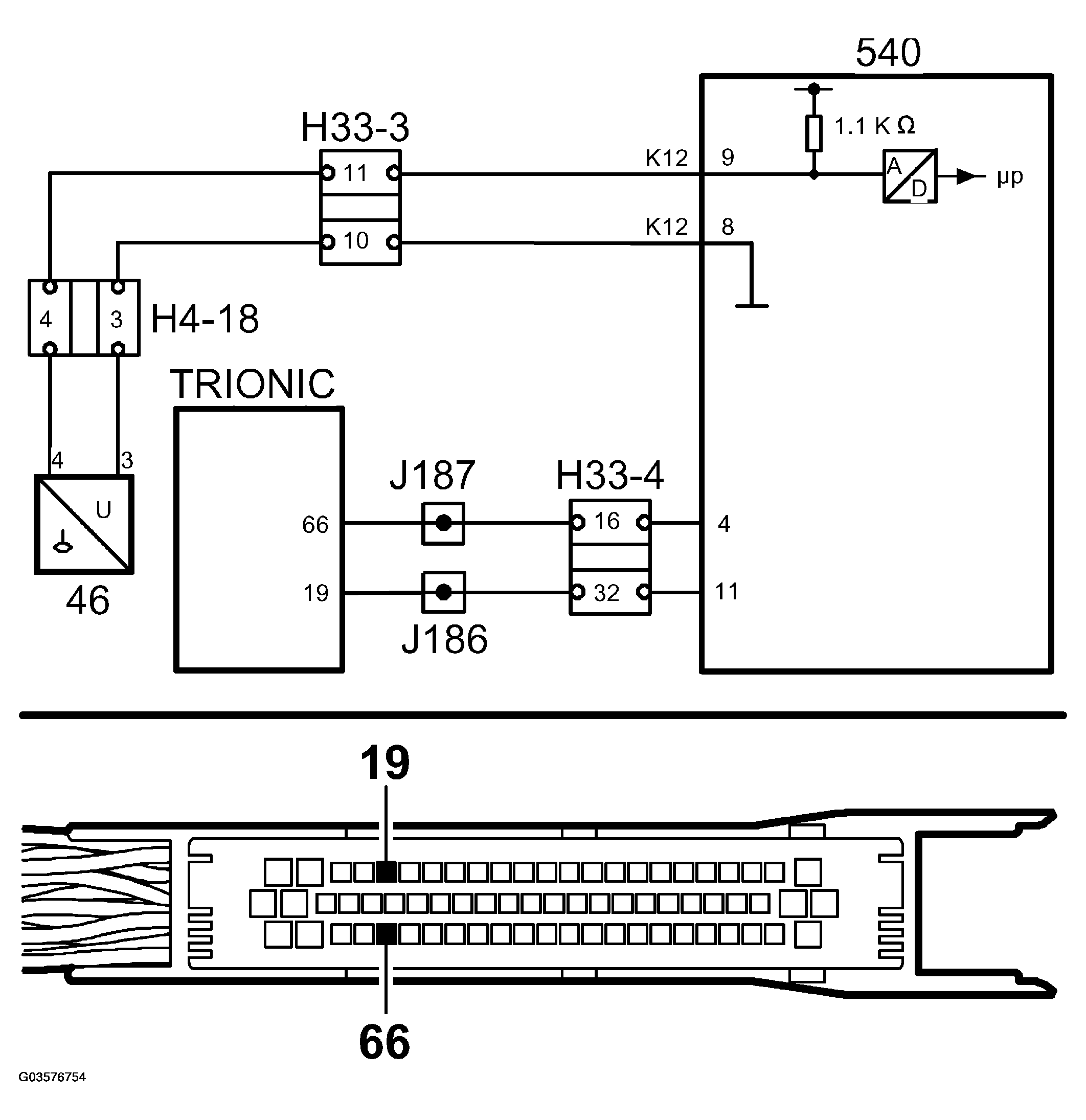

Fig 1: Fuel Level Sensor Circuit Diagram - Small Leakage In System
G03576754Courtesy of SAAB-SCANIA OF AMERICA, INC.

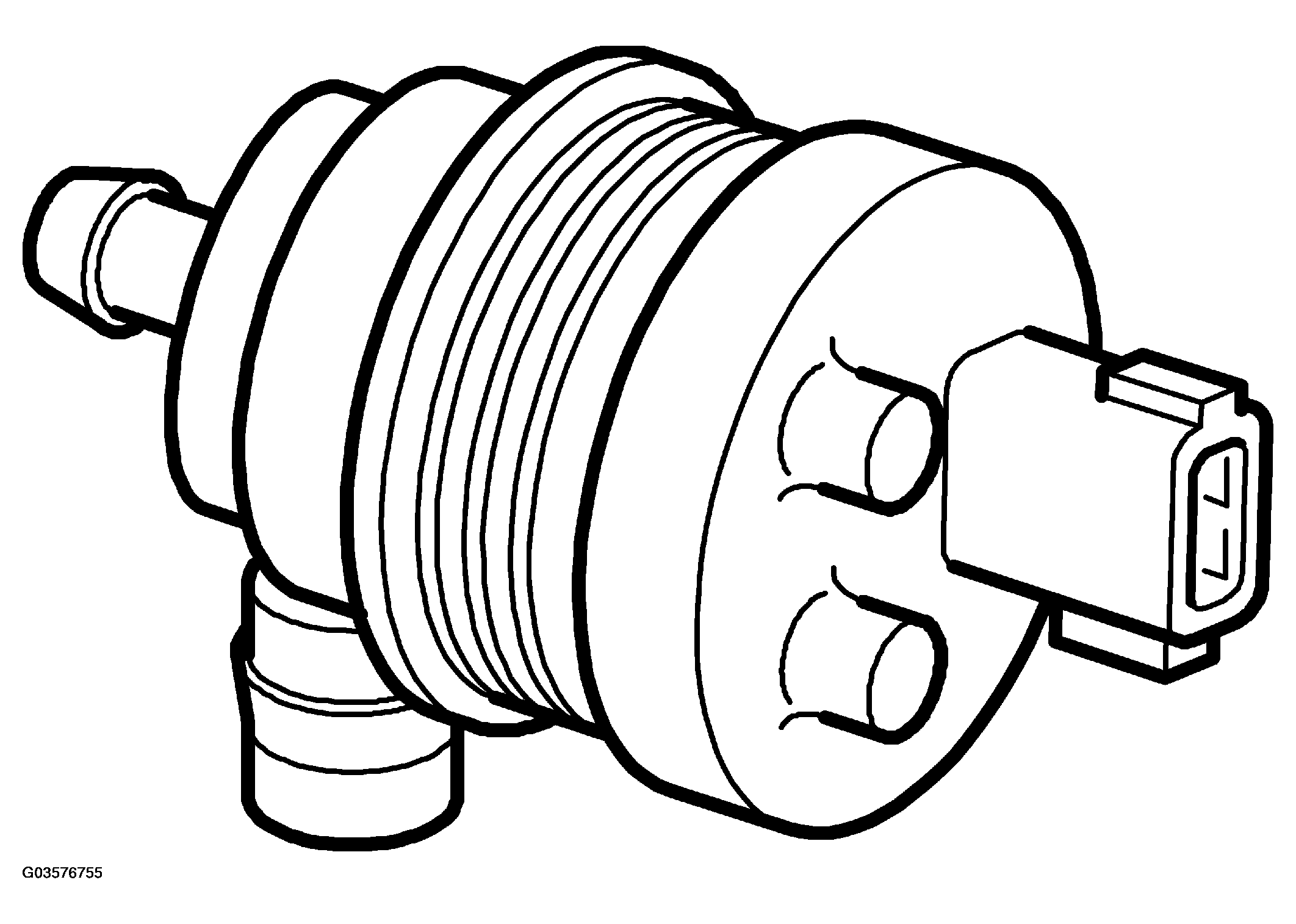

Fig 2: Identifying Fuel Level Sensor
G03576755Courtesy of SAAB-SCANIA OF AMERICA, INC.
