Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Fault Diagnosis Fault Codes >> DTC P1301: Cylinder 1 Misfire Detected. Catalyst Damaging. >> Notes

DTC P1301: Cylinder 1 Misfire Detected. Catalyst Damaging.: Notes

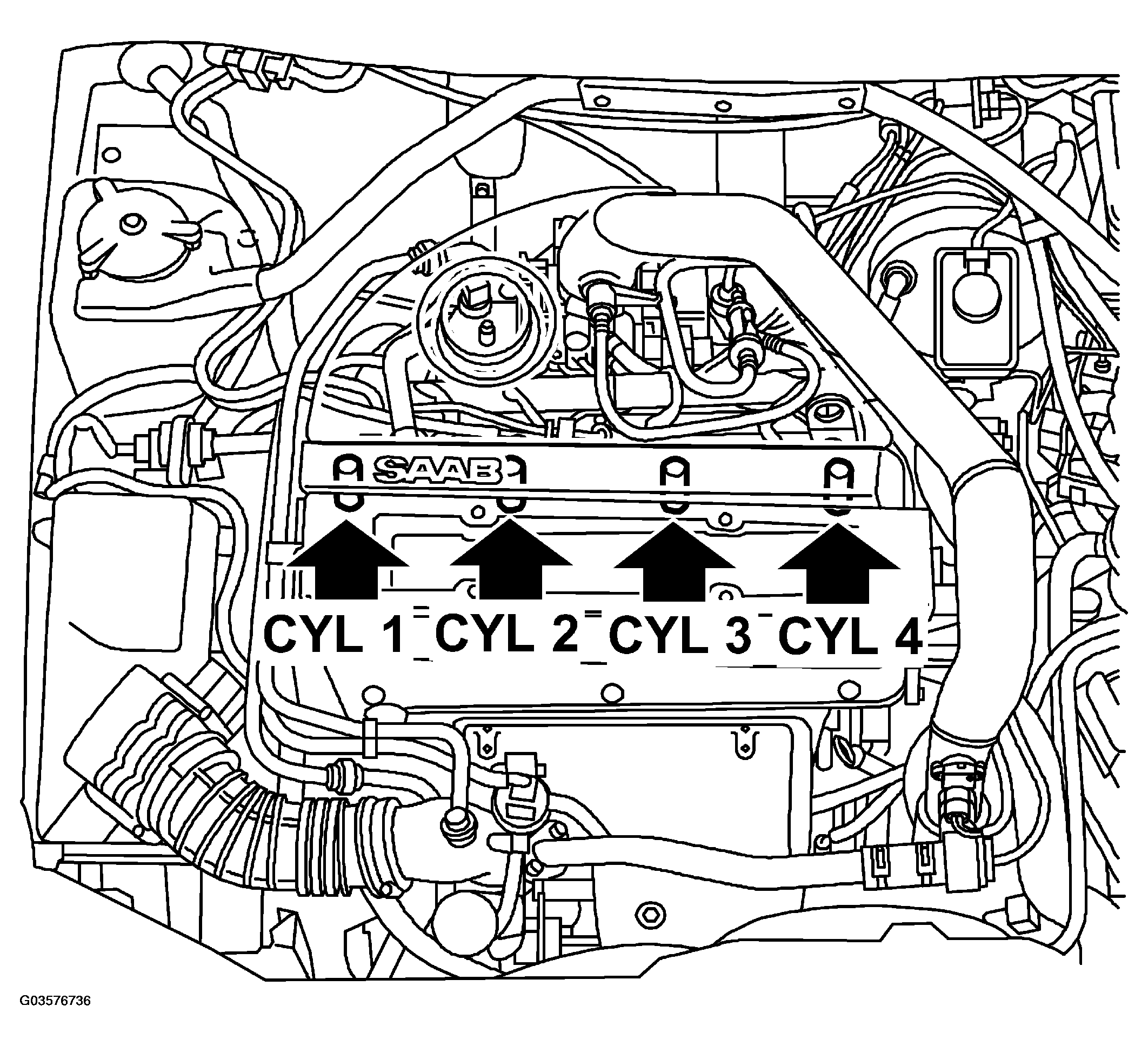

Fig 1: Identifying Cylinders
G03576736Courtesy of SAAB-SCANIA OF AMERICA, INC.

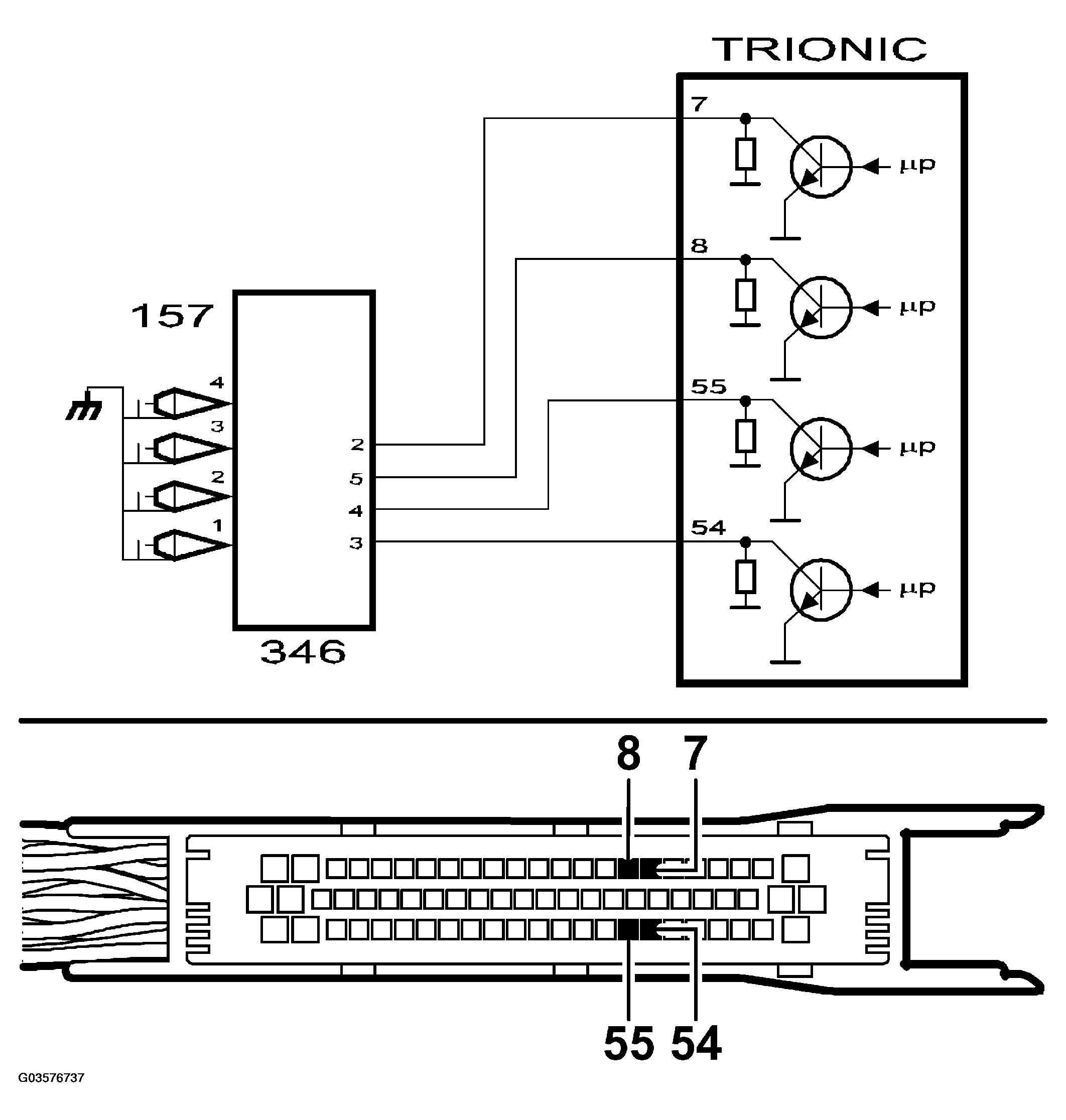

Fig 2: Ignition System Circuit Diagram
G03576737Courtesy of SAAB-SCANIA OF AMERICA, INC.
