DTC P1251: Throttle Motor. Full PWM in Closing Direction. NOTE. May set if Mechanism is not Reseted.: Notes

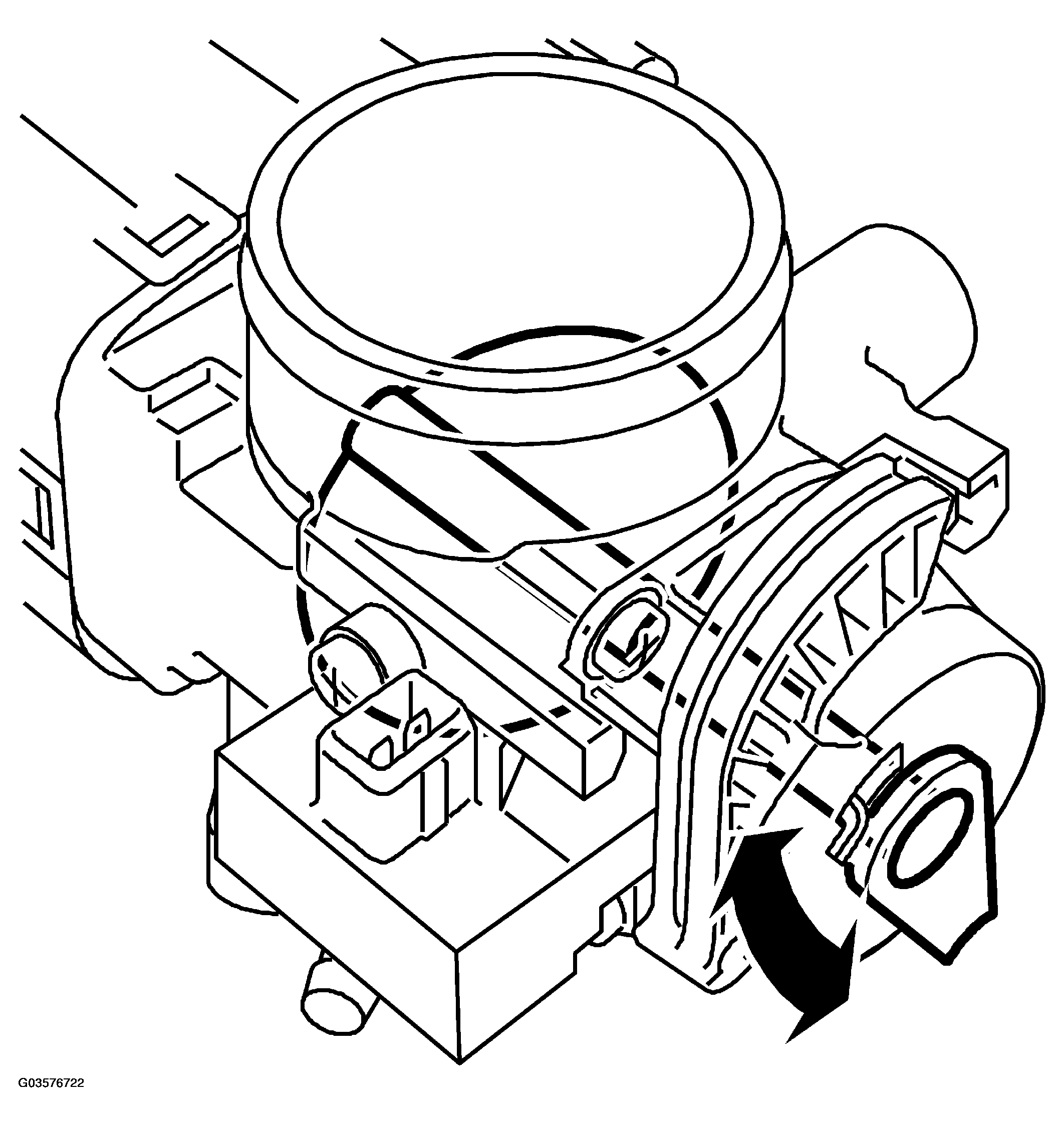

Fig 1: Identifying Throttle Motor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

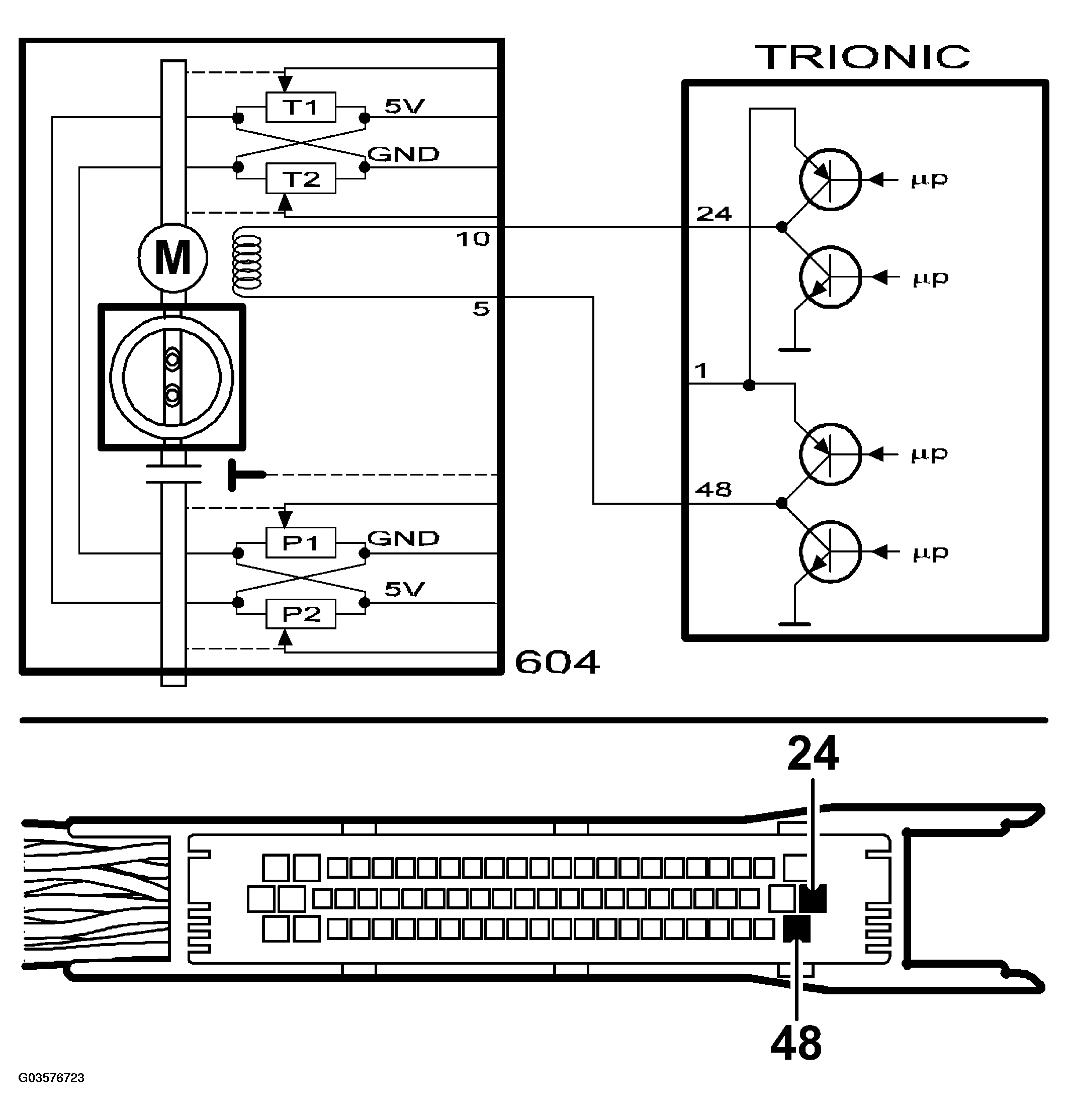

Fig 2: Circuit Diagram - Full PWM in Closing Direction

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: The system cannot close the throttle disc.
