DTC P1240: Throttle Motor Circuit. Shorted.: Notes

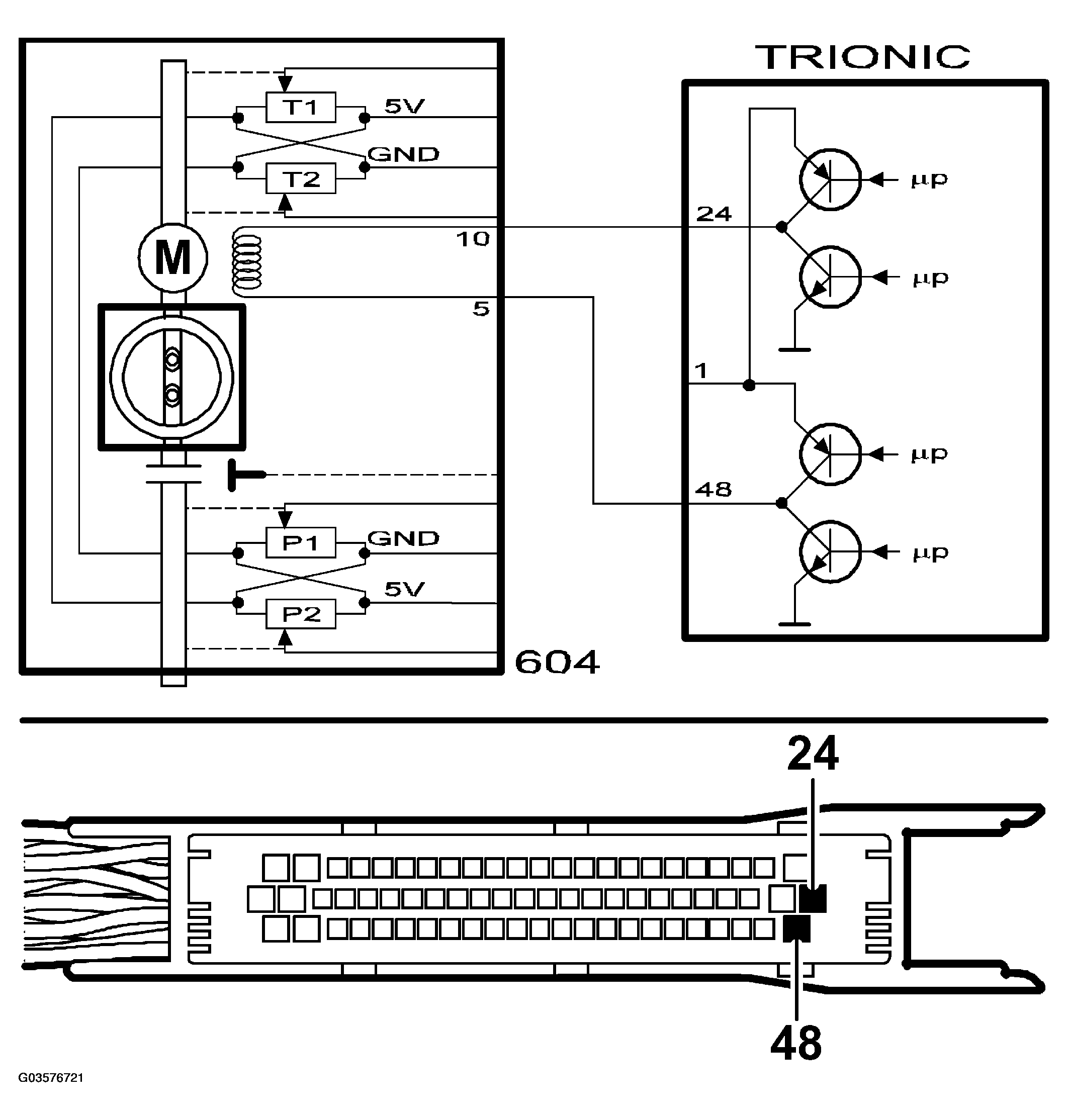

Fig 1: Circuit Diagram - Throttle Motor Circuit. Shorted.

G03576721

Courtesy of SAAB-SCANIA OF AMERICA, INC.
