DTC P1142: O2S Heater Circuit. Current too High, Sensor 2.: Notes

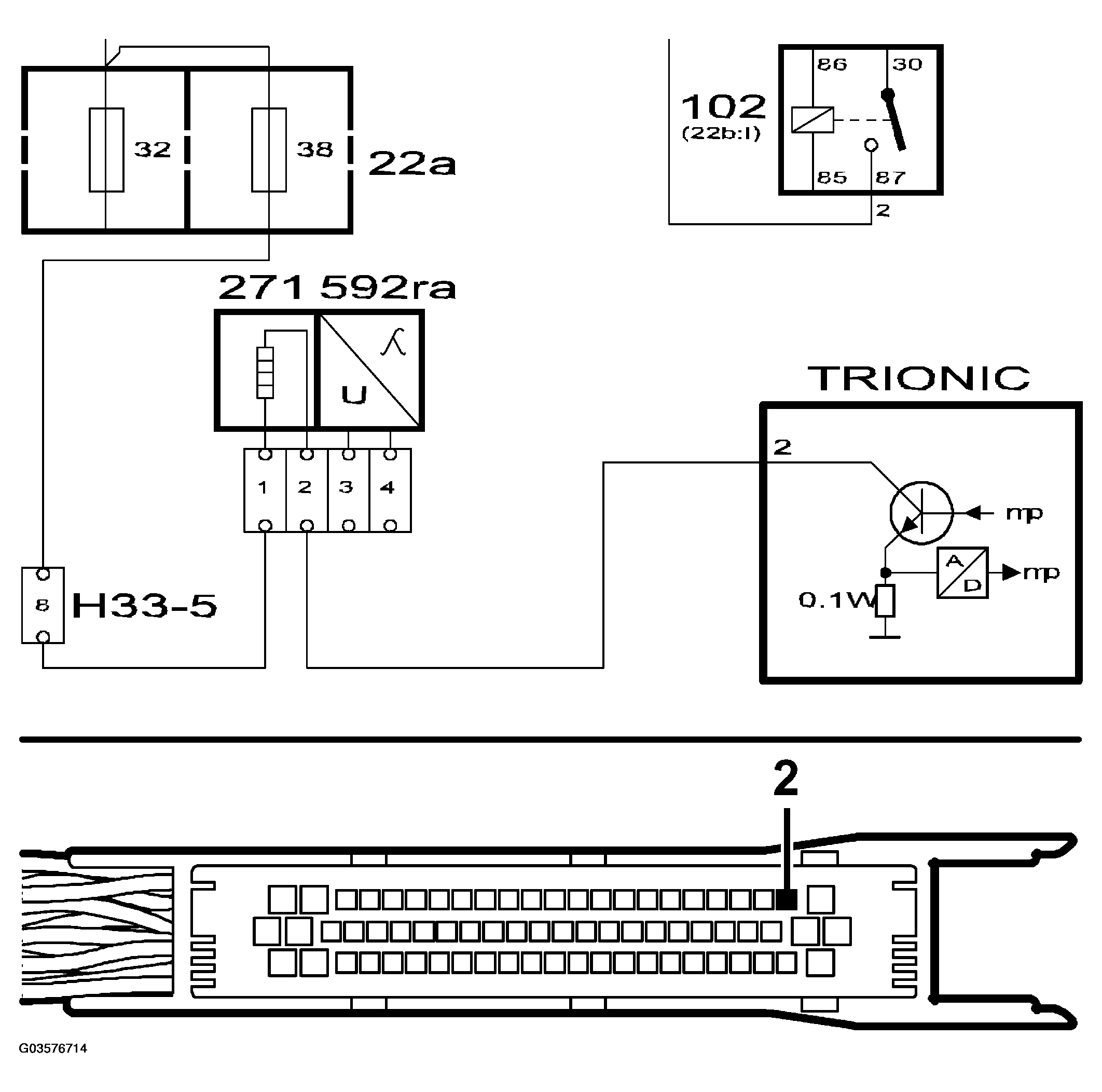

Fig 1: Circuit Diagram - O2S Heater Circuit. Current Too High (Sensor 2)

G03576714

Courtesy of SAAB-SCANIA OF AMERICA, INC.
