DTC P0502: Vehicle Speed. No input signal.: Notes

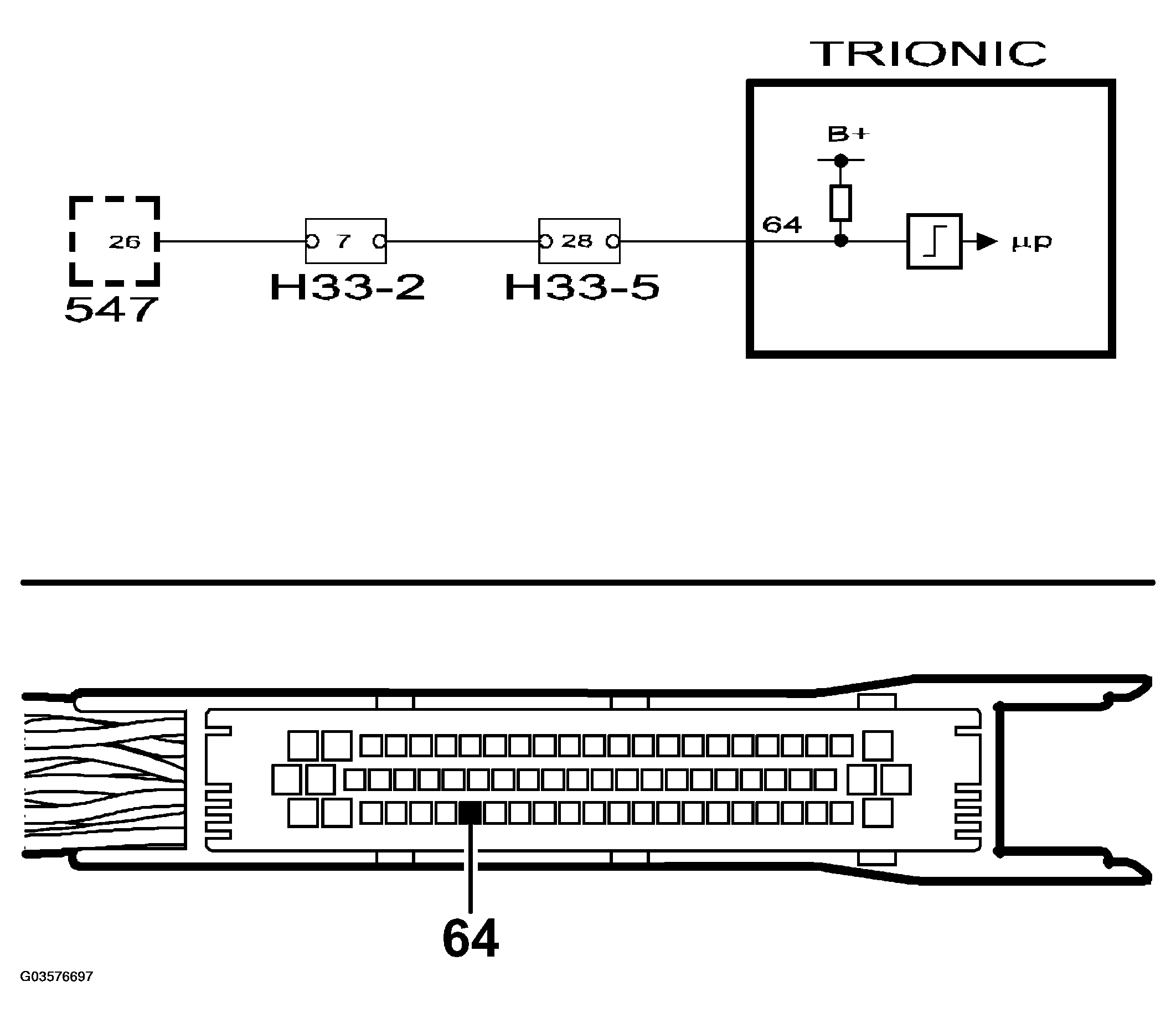

Fig 1: Circuit Diagram - Vehicle Speed - No Input Signal

G03576697

Courtesy of SAAB-SCANIA OF AMERICA, INC.
