Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Fault Diagnosis Fault Codes >> DTC P0304: Cylinder 4 Misfire Detected. >> Notes

DTC P0304: Cylinder 4 Misfire Detected.: Notes

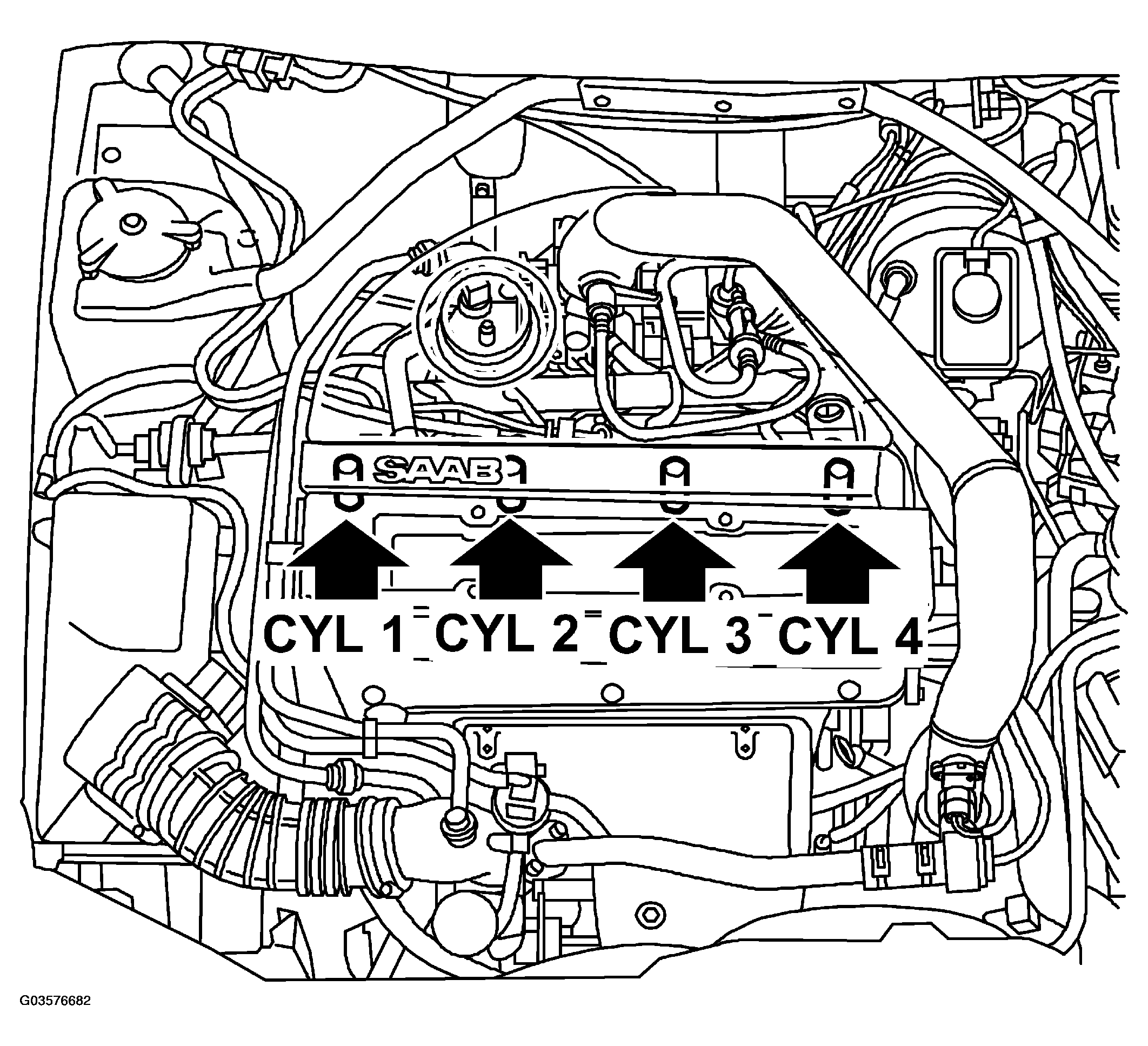

Fig 1: Identifying Cylinders
G03576682Courtesy of SAAB-SCANIA OF AMERICA, INC.

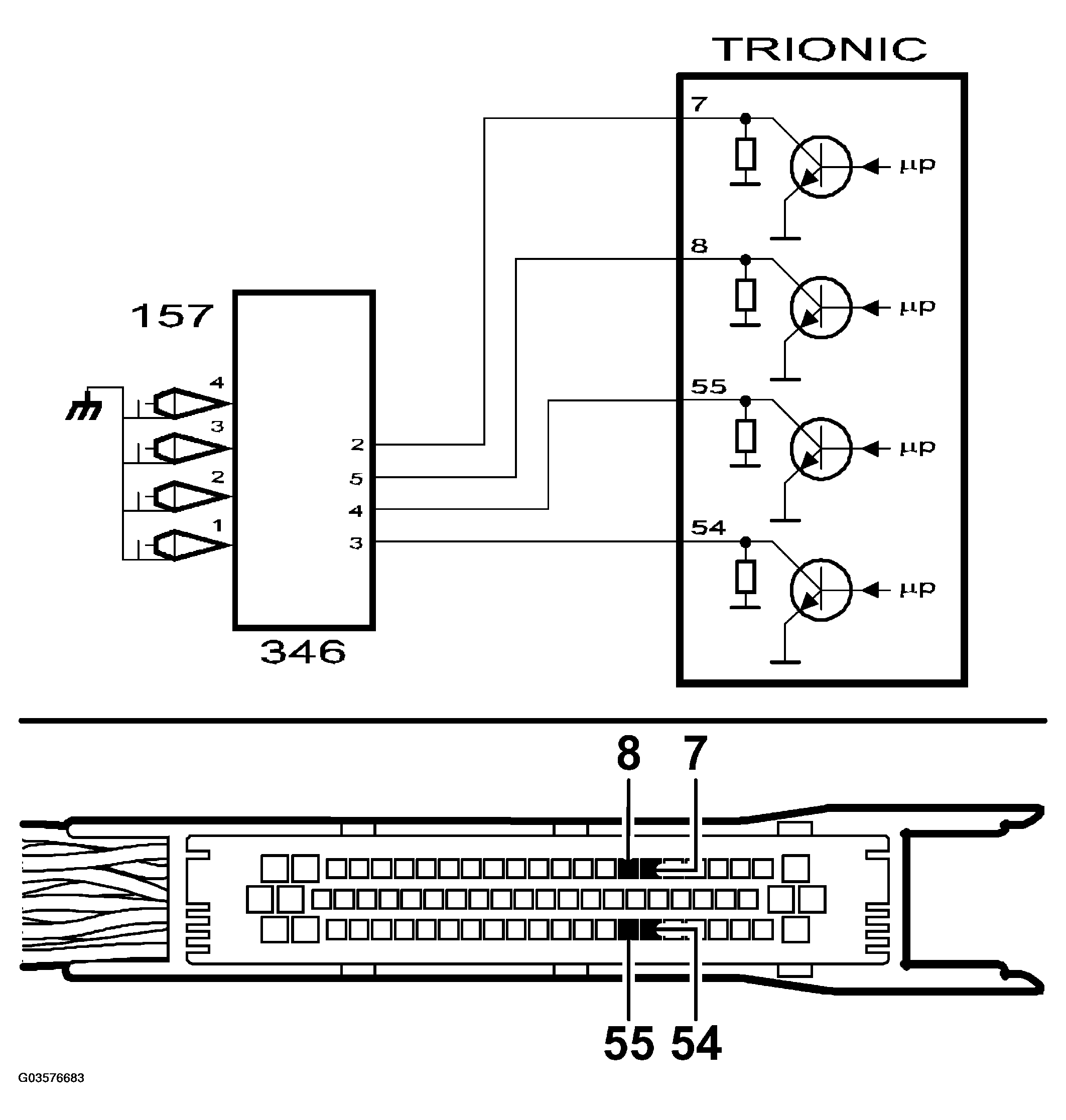

Fig 2: Circuit Diagram - Cylinder 4 Misfire Detected
G03576683Courtesy of SAAB-SCANIA OF AMERICA, INC.
