Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T7 Fuel Control System >> Fault Diagnosis Fault Codes >> DTC P0125: Excessive Time to Enter Closed Loop Fuel Control. >> Notes

DTC P0125: Excessive Time to Enter Closed Loop Fuel Control.: Notes

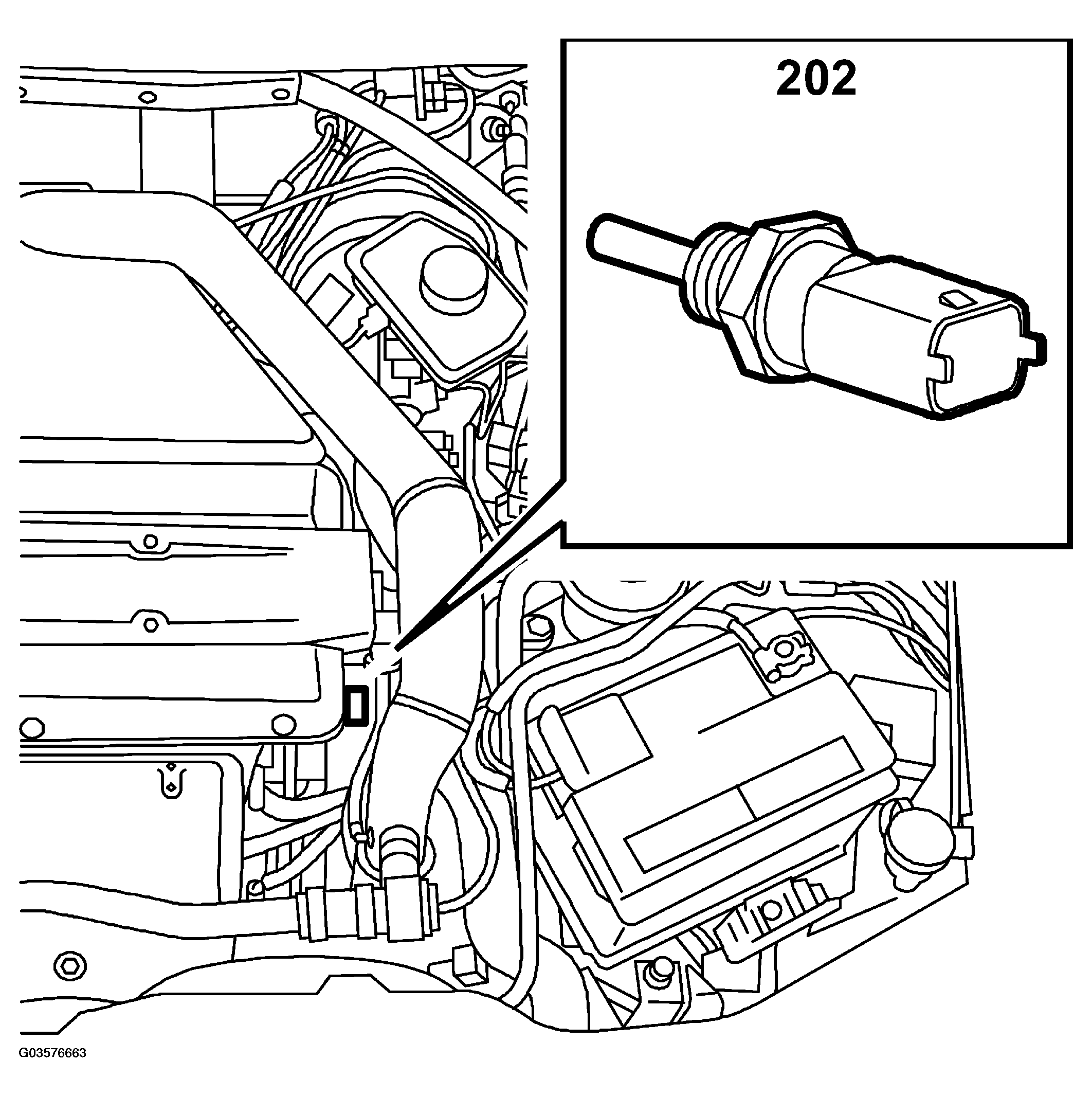

Fig 1: Locating Fuel Control Valve
G03576663Courtesy of SAAB-SCANIA OF AMERICA, INC.

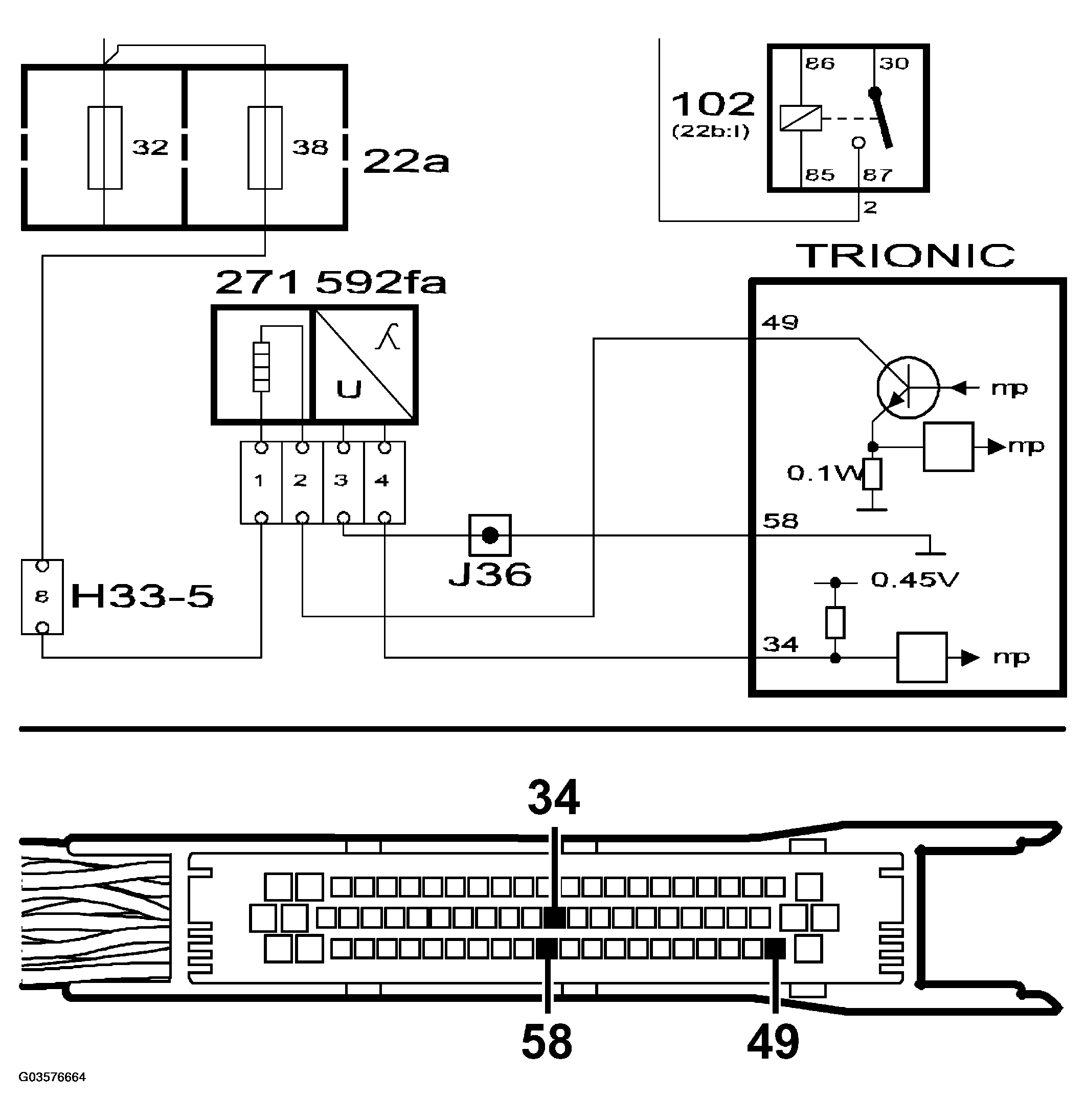

Fig 2: Identifying Circuit For Excessive Time to Enter Closed Loop Fuel Control
G03576664Courtesy of SAAB-SCANIA OF AMERICA, INC.
