DTC P0103: Mass Air Flow Circuit. High Input.: Notes

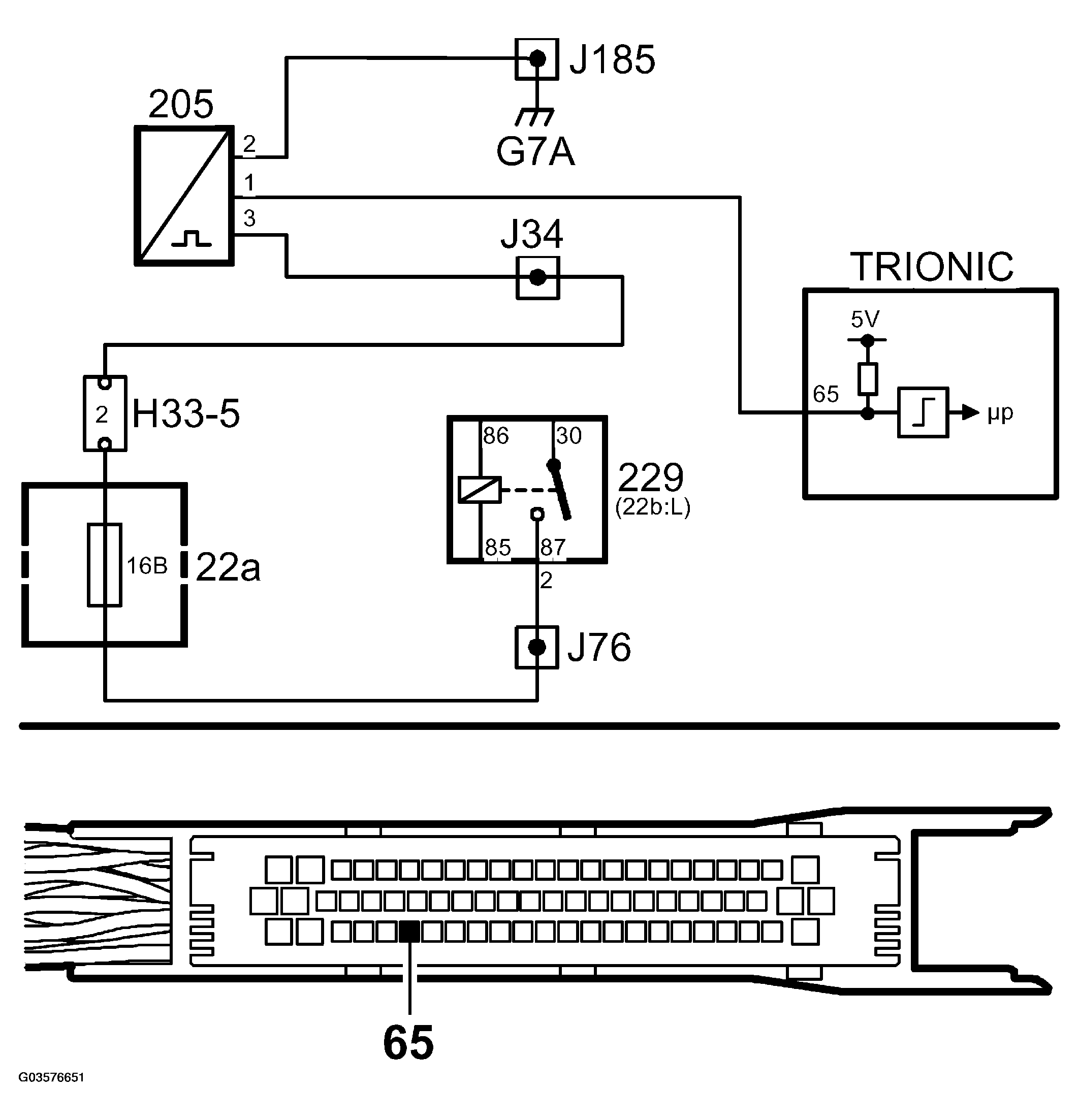

Fig 1: Mass Air Flow Circuit Diagram - High Input

G03576651

Courtesy of SAAB-SCANIA OF AMERICA, INC.
