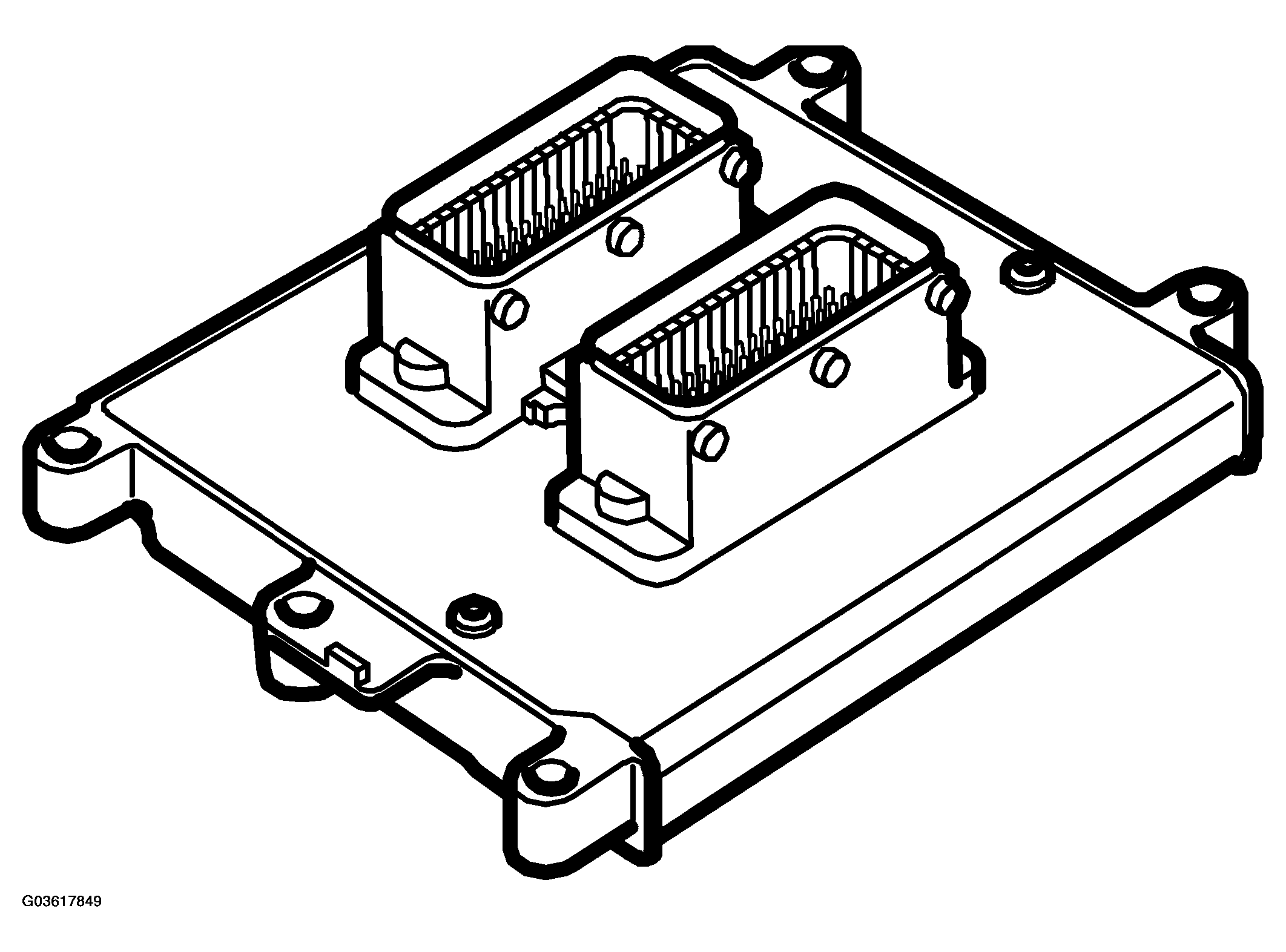

Control module, Trionic T8 (589)
TECHNICAL DATA - TRIONIC T8 CONTROL MODULE
| No. of pins | A=64 B=64 |
|
| Power supply, (+30 circuit) | Pin no. | 3(A), 20(A)0 |
| Power supply (+15 circuit) | Pin no. | 2(A), 19(A) |
| Power supply from main relay | Pin no. | 48(A), 64(A) |
| Power ground | Pin no. | 47(A), 57(A), 60(A) and 63(A) |
| P-bus + | Pin no. | 5(A) |
| P-bus - | Pin no. | 6(A) |
