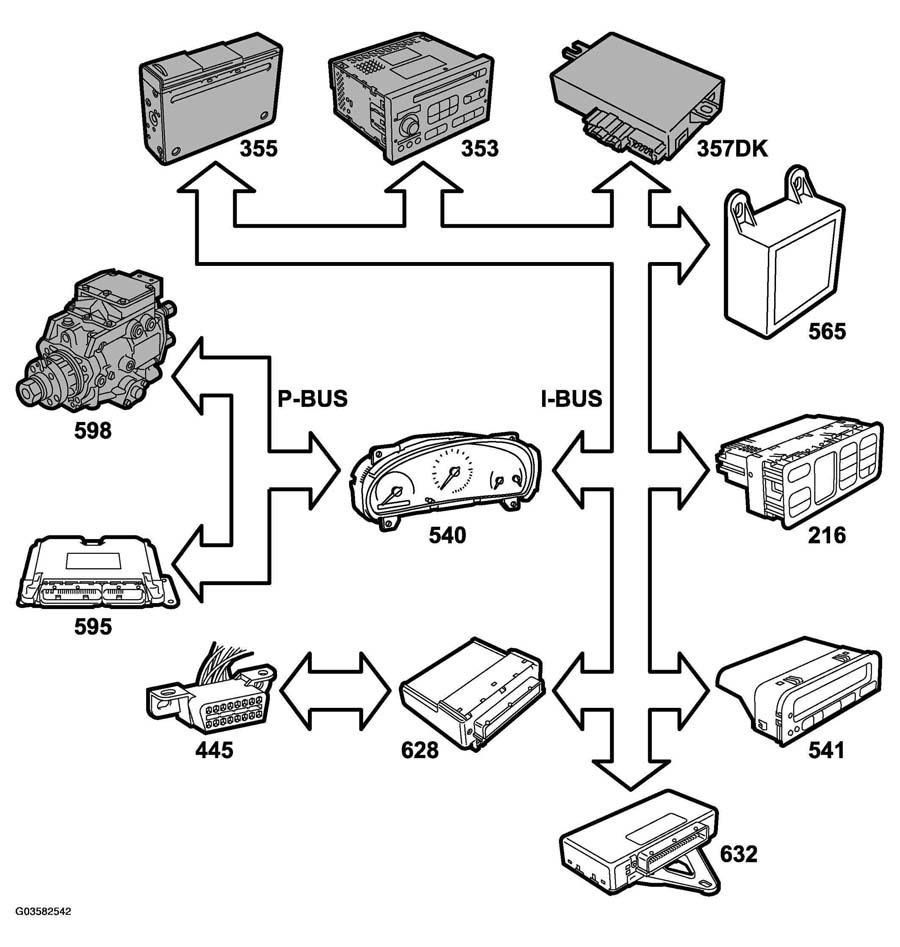

Control Module Inputs, Bus
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Electrically heated rear window, confirmation (DICE, 628)
- Travelling speed (MIU, 540)
- Unit (SID, 541)
- Language (SID, 541)
- Rheostat value (SID, 541)
- Rheostat value, night panel (SID, 541)
- Night panel (SID, 541)
- Display lighting (SID, 541)
- Time engine turned off (SID, 541)
- Steering wheel position (TWICE, 632)
- Outside temperature (SID, 541)
- Engine has started (MIU, 540)
- Engine speed (MIU, 540)
- Coolant temperature (MIU, 540)
- Diagnosis (DICE, 628/diagnostics tool)
- Soft top opening (STC, 565)
