Main relay, engine control system (229)

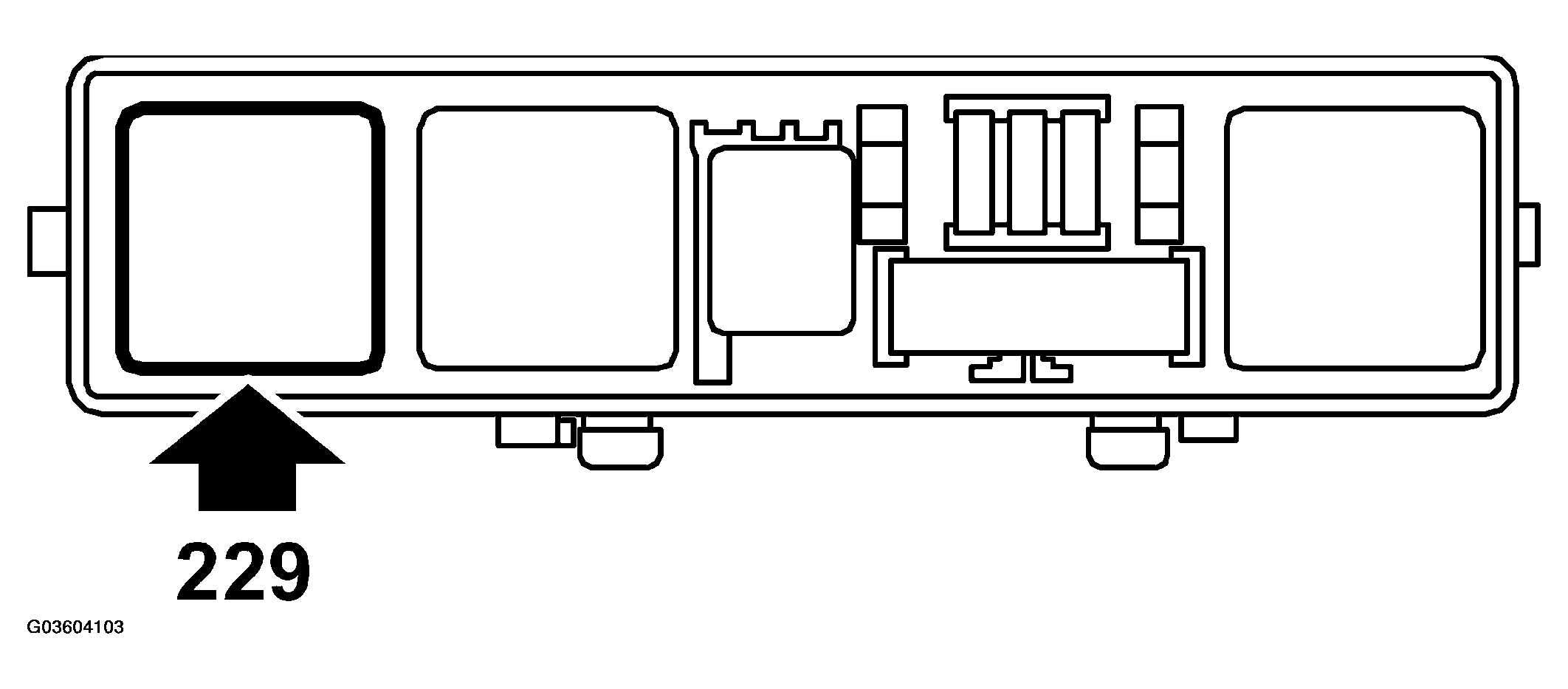

Fig 1: Identifying Engine Control System Main Relay (229)
G03604103Courtesy of SAAB-SCANIA OF AMERICA, INC.
ENGINE CONTROL SYSTEM MAIN RELAY TECHNICAL DATA

Resistance, winding at 20°C (68°F) 85+/-5 Ohm
Nominal control voltage 12 V
Nominal current 30 A
