Home >> Saab >> 2003 >> 9-3 Vector, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Gear Selector Mechanism (Automatic) >> Adjustment/Replacement >> Selector Lever >> To fit

To fit

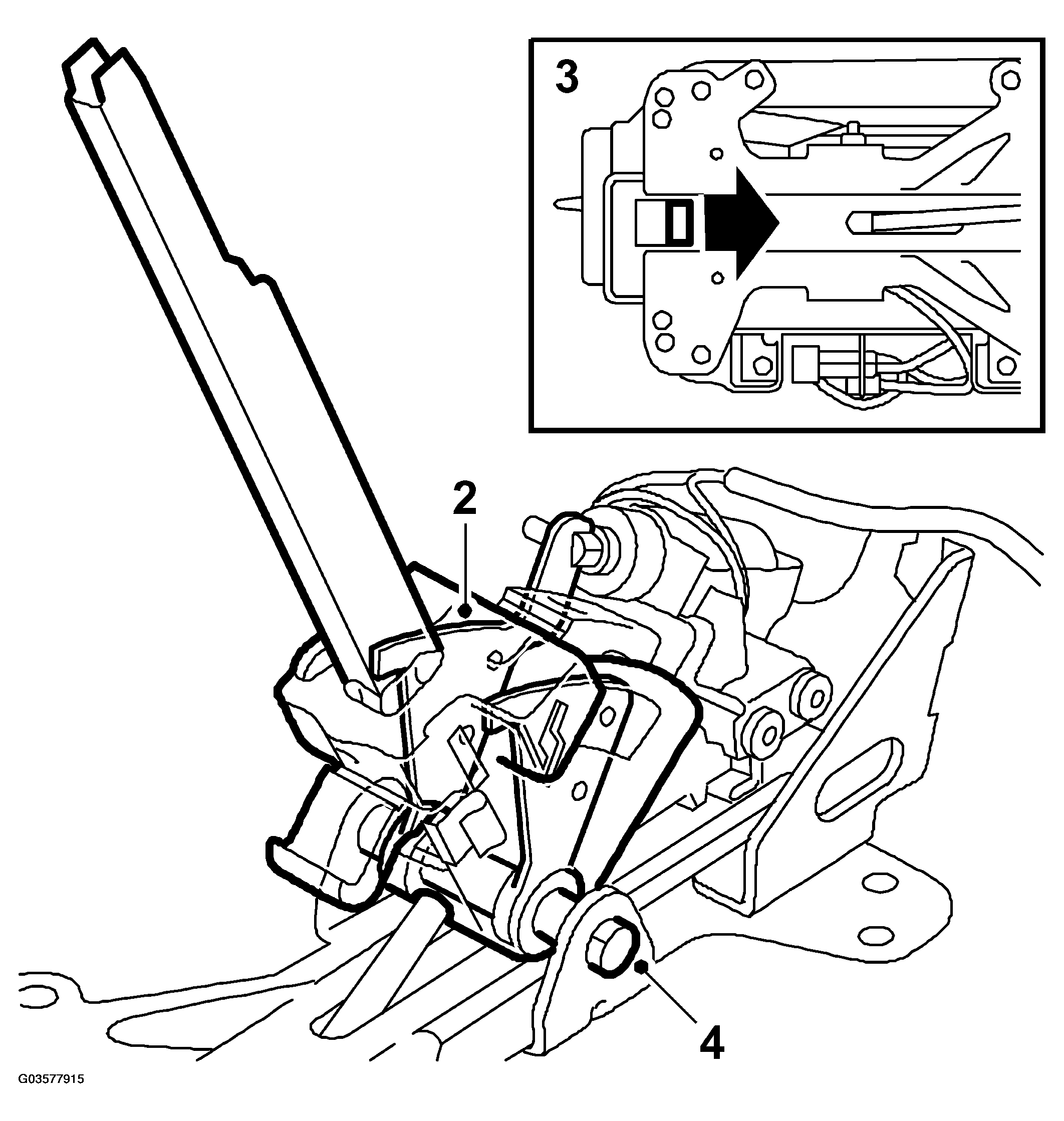

Fig 1: Illustration For Steps 2-4
G03577915Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the selector lever in the holder.
  2. Insert the spacer sleeve through the selector lever, ignition switch retaining catch, gear position detent retaining catch and holder.
  3. Fit the selector lever with holder into the groove at the front of the base plate.
  4. Fit the bolt and tighten it.
  5. Fit the selector lever and ignition switch in the selector lever housing. Place the sport button's lead in the clip.
  6. NOTE: the selector lever housing does not need to be riveted together.

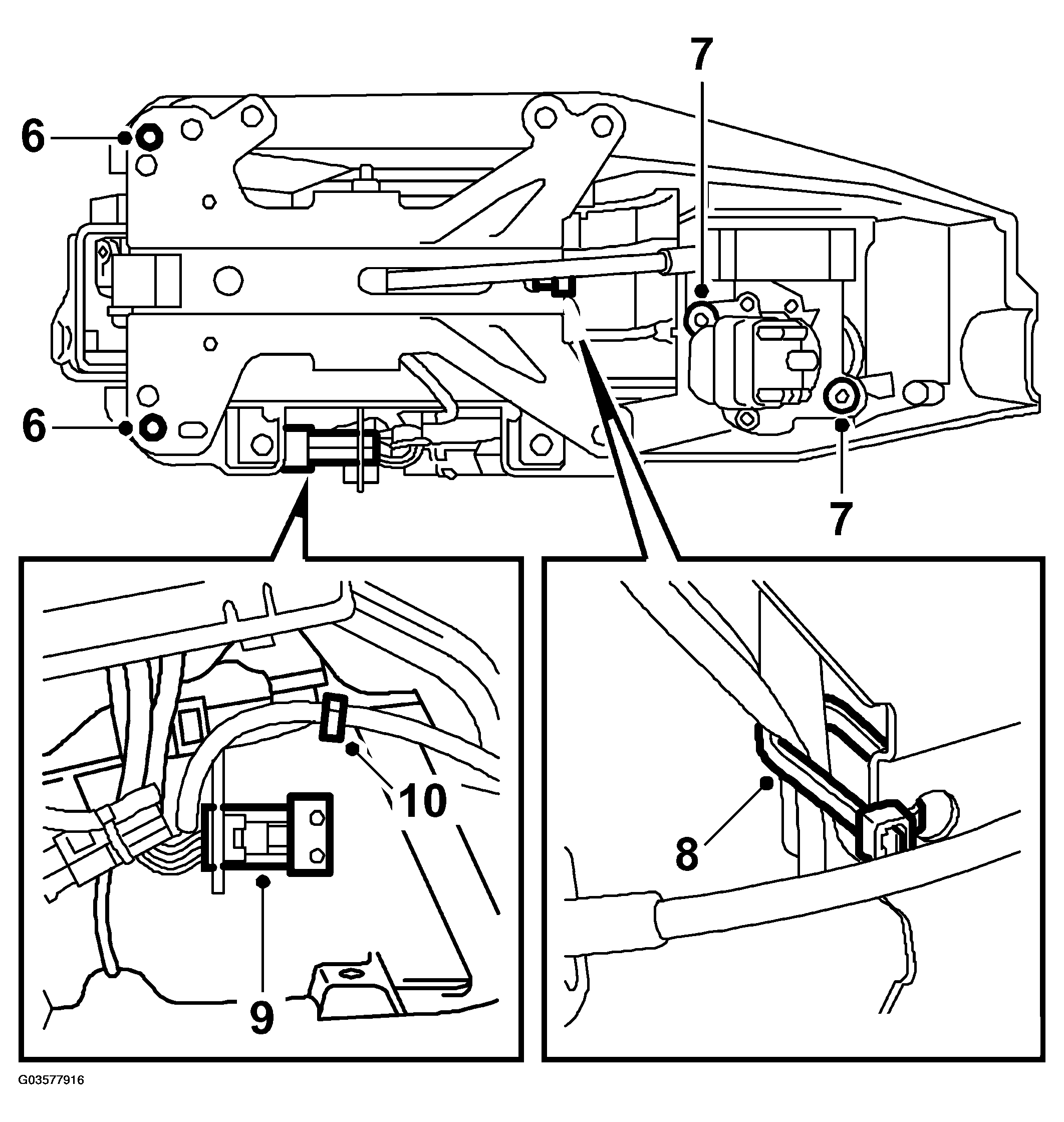

    Fig 2: Illustration For Steps 6-10
    G03577916Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Screw the ignition switch in place.
  8. Fit a cable tie to hold the lead for the lighting in place.
  9. Connect the electromagnet (cars with shift-lock).
  10. Insert a cable tie through the hole in the selector lever and round the electromagnet's and WINTER button's leads.
  11. Fit the selector lever casing, see TO FIT .
  12. Fit the selector lever housing.
