To fit

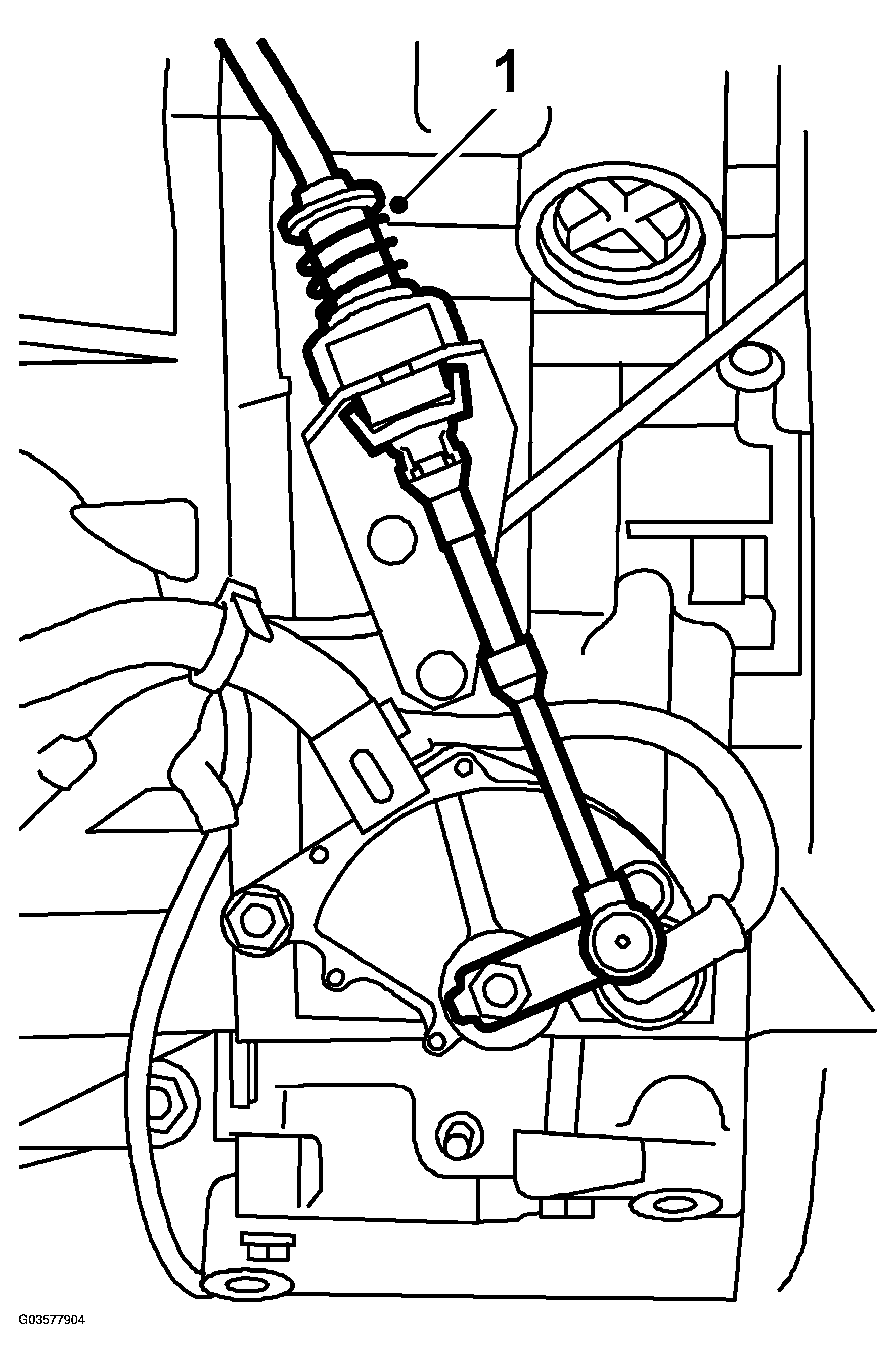

Fig 1: Illustration For Step 1
G03577904Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the cable from the engine bay. Make sure it is positioned correctly in the gear-lever housing and press in the rubber grommet.
  2. Connect the cable to the gear-lever housing and fit the clamp.

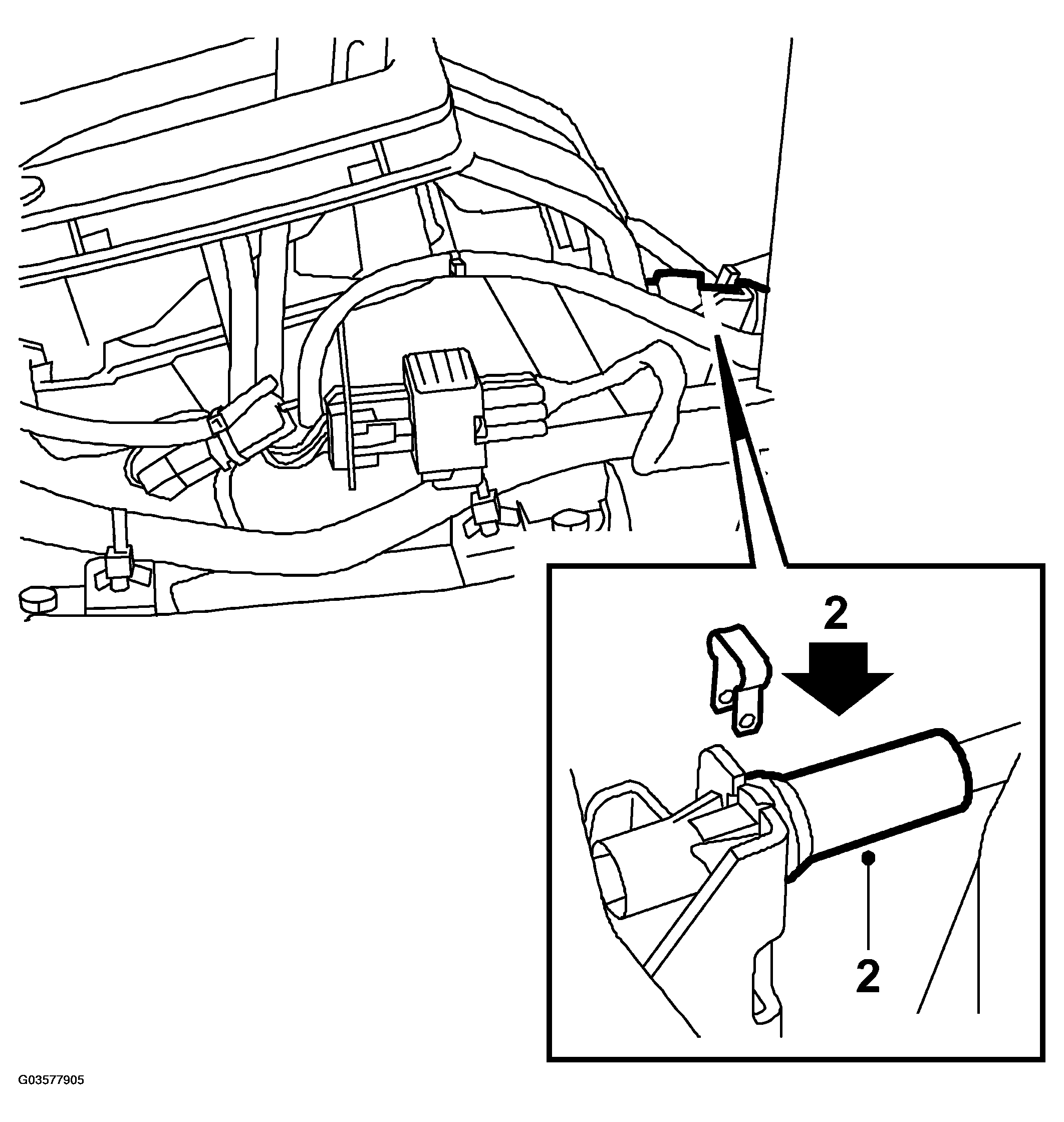

    Fig 2: Illustration For Step 2
    G03577905Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Tap in the pin at the same time as the ball enters the end of the cable.
  4. Fit the E-circlip and the anti-rattle clip.

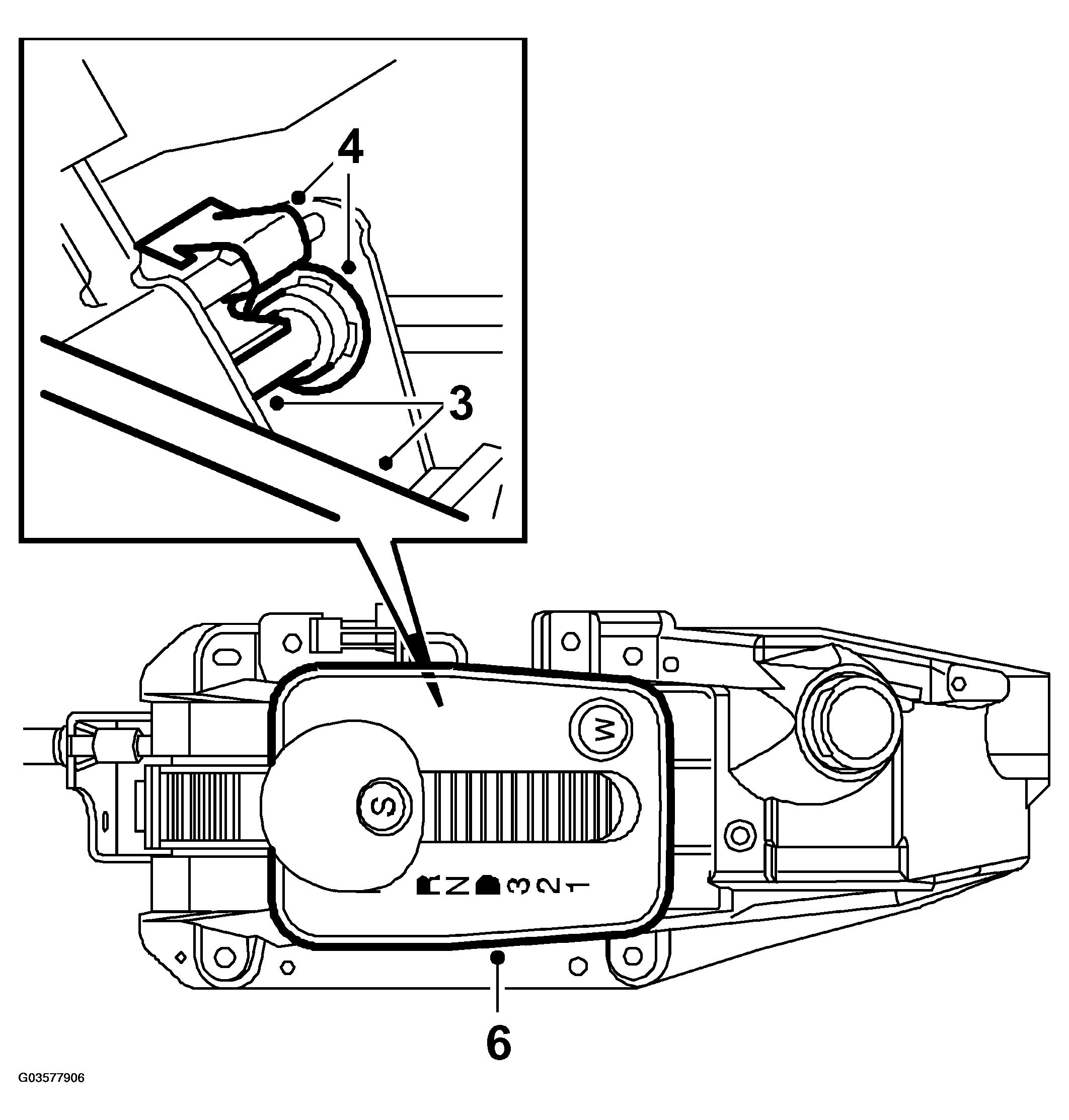

    Fig 3: Illustration For Steps 3, 4 & 6
    G03577906Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Refit the air duct to the rear air vent.
  6. Fit the center and floor consoles, see INTERIOR EQUIPMENT - 9-3 (9400) .

    Fit the rim.

  7. Attach the selector cable to its mounting and fit the clamp.
  8. Fit the lever to the gear selector.

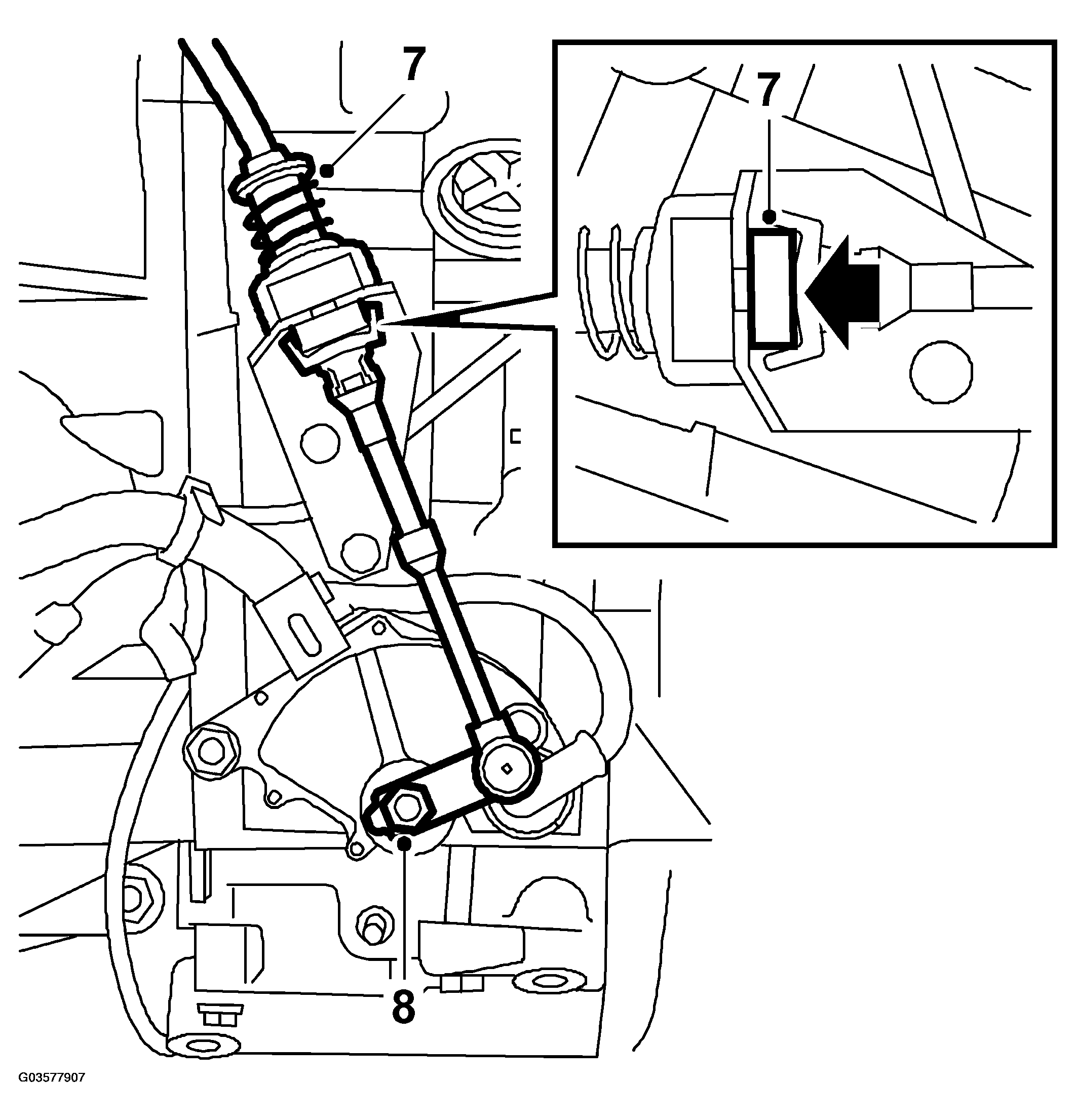

    Fig 4: Illustration For Step 7 & 8
    G03577907Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Fit the bracket for the A/C and servo pipes.
  10. Adjust the position of the cable.
  11. Fit the battery and battery cover.
