Home >> Saab >> 2003 >> 9-3 Vector, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Gear Selector Mechanism (Automatic) >> Adjustment/Replacement >> Ignition Switch Connector >> To fit

To fit

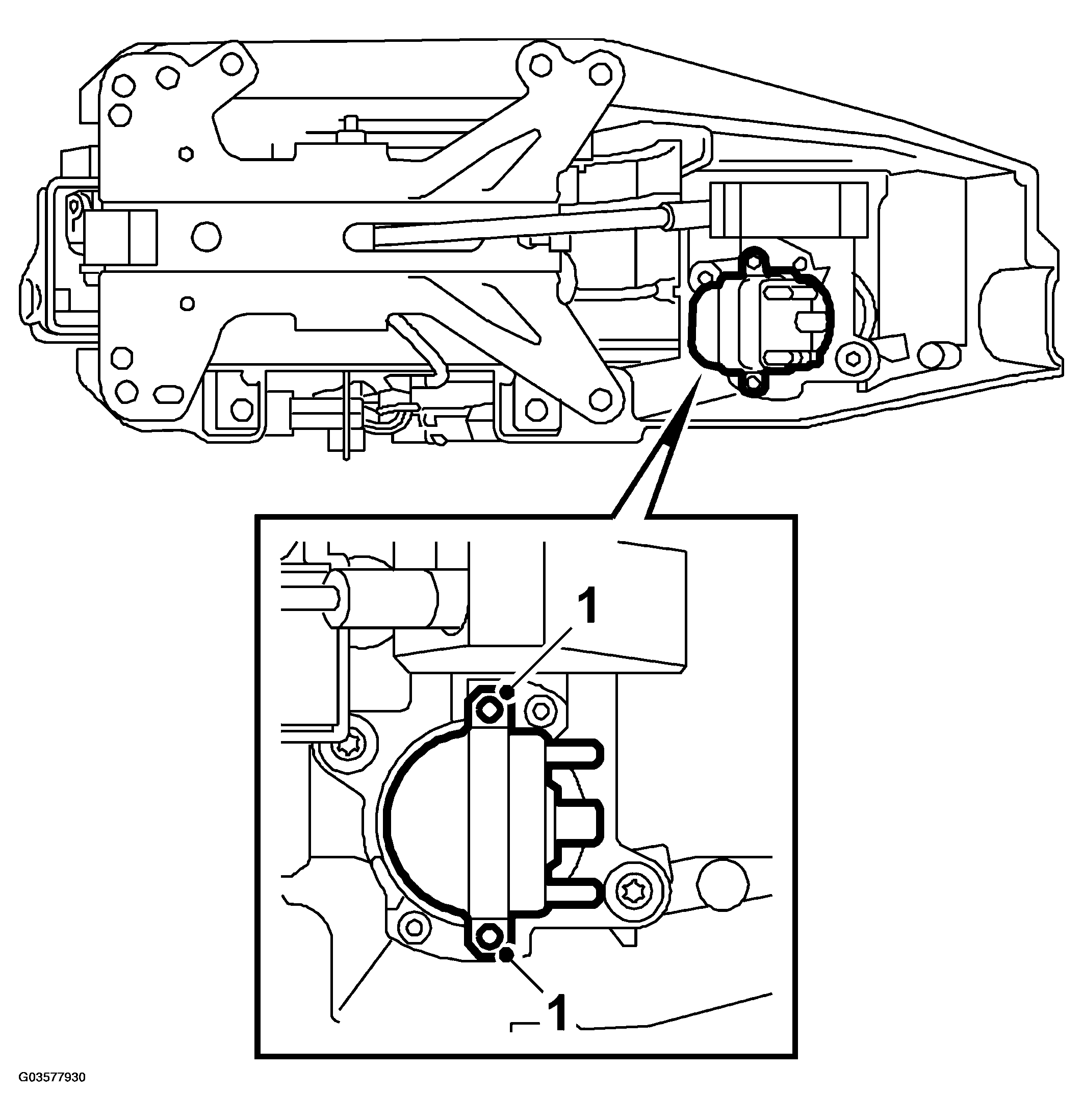

Fig 1: Illustration For Step 1
G03577930Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Screw the ignition switch connector in place. Use Loctite 242 thread-locking adhesive, part number 74 96 268, on the screws.
  2. Fit the selector lever housing, see SELECTOR LEVER HOUSING .
