Home >> Saab >> 2003 >> 9-3 Vector, Automatic >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System (Late; 9440) >> Adjustment/Replacement >> Height adjustment, front >> To remove

To remove

  1. Dismantle the B-pillar trim.
  2. Remove the strap guide screw.

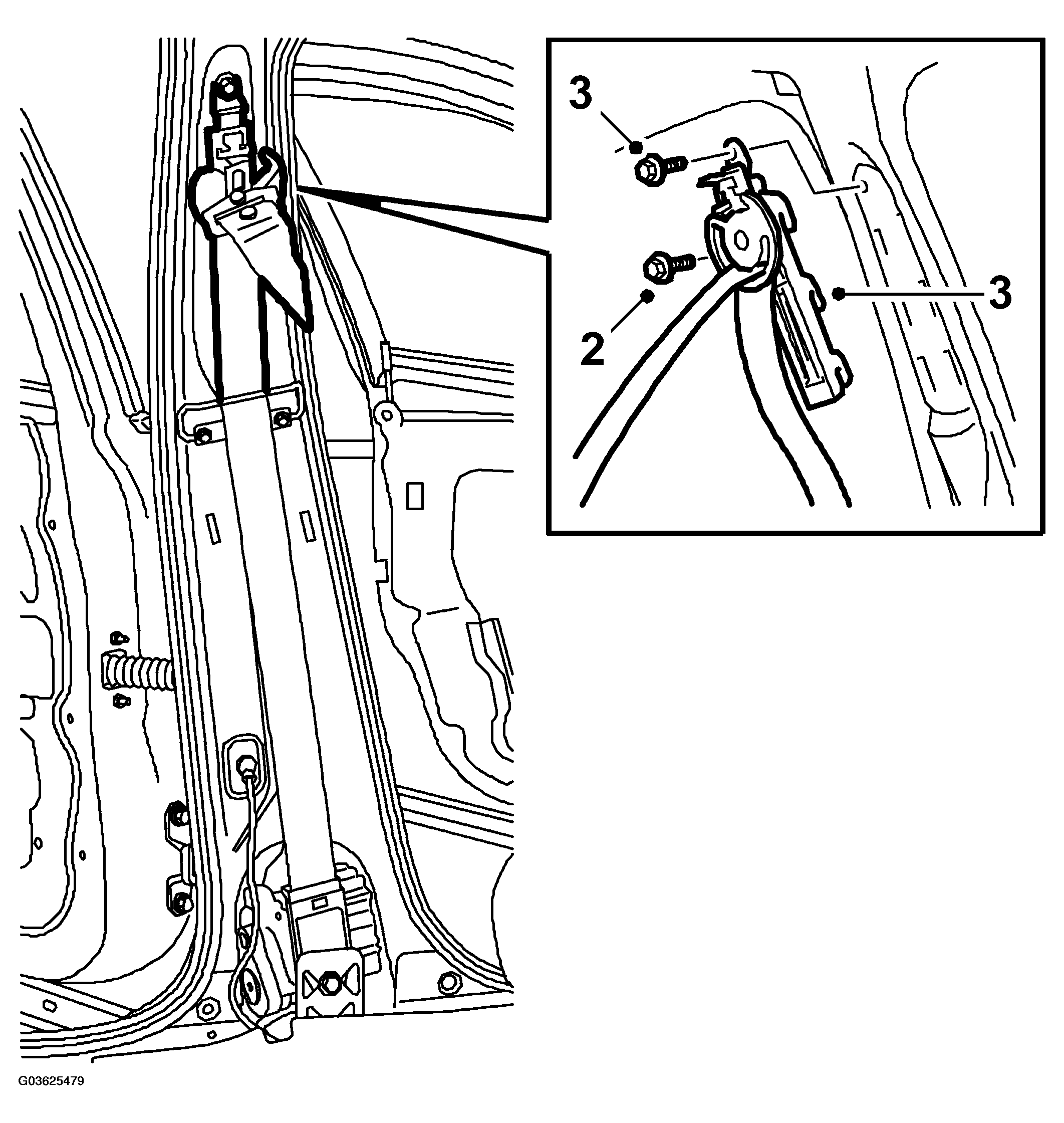

    Fig 1: Illustration For Steps 2-3
    G03625479Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the height adjustment screw and unhook the height adjustment.
