Grounding Point G24: Notes

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

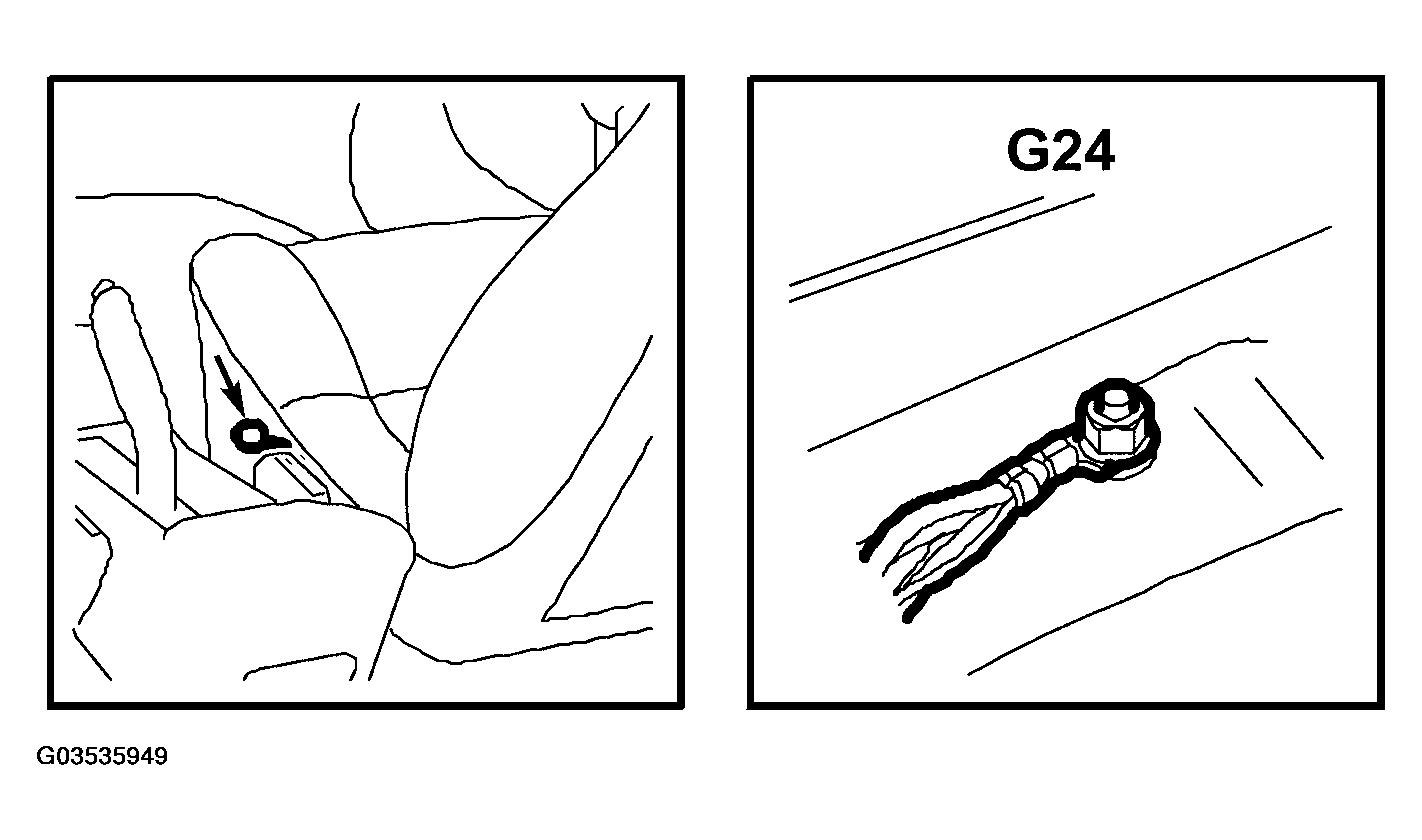

Fig 1: Identifying Grounding Point G24
G03535949Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  under RH seat on floor behind seat member
