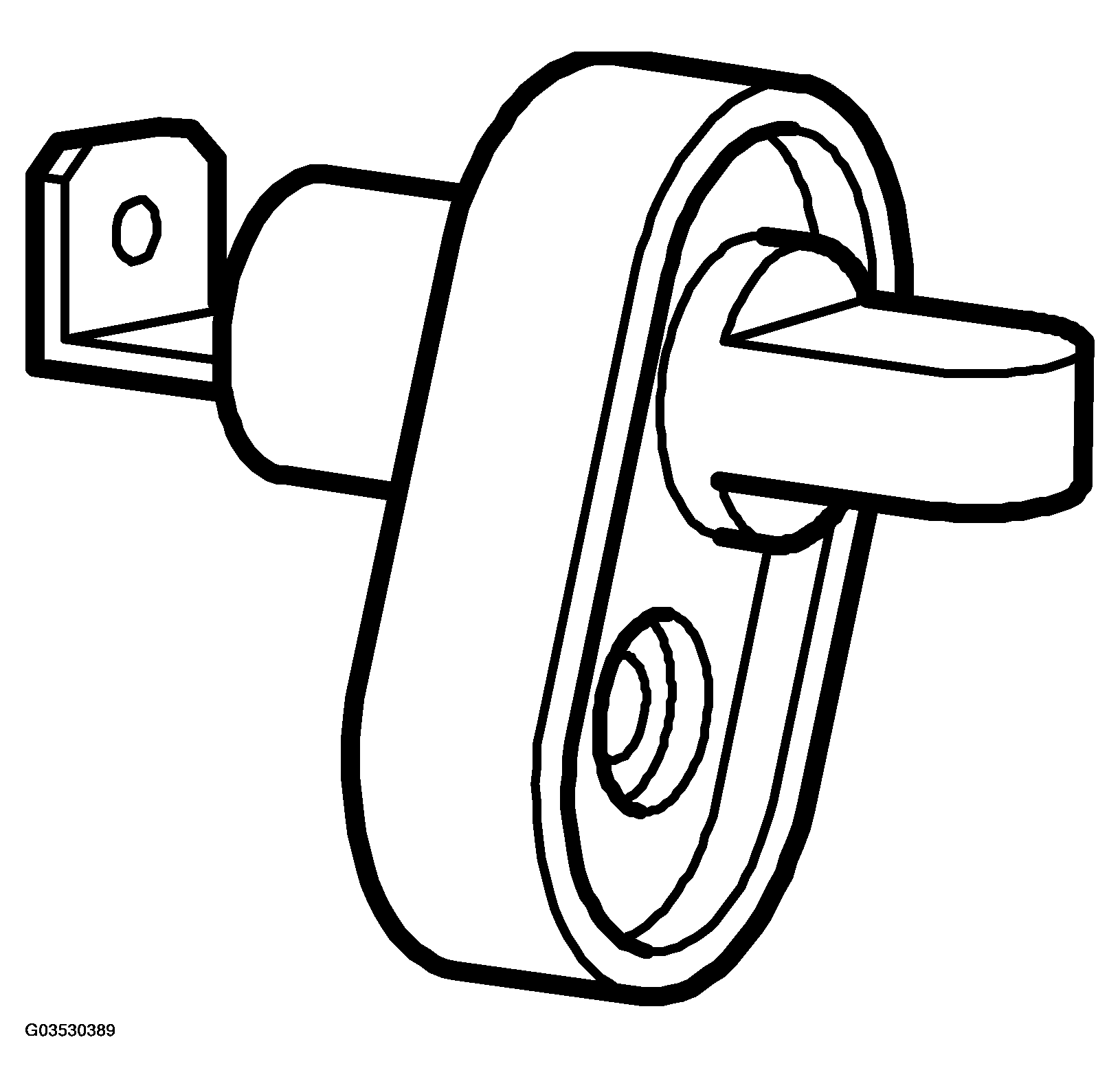

Door Switches
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. DOOR SWITCHES TECHNICAL DATA
| Location |
Door frame |
| Type |
Normally open when door is closed. |
| Power supply PWM approx. 3.5% |
Pin No. 1 |
| Ground |
Casing |
