Main Components, Central Locking System, Doors

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

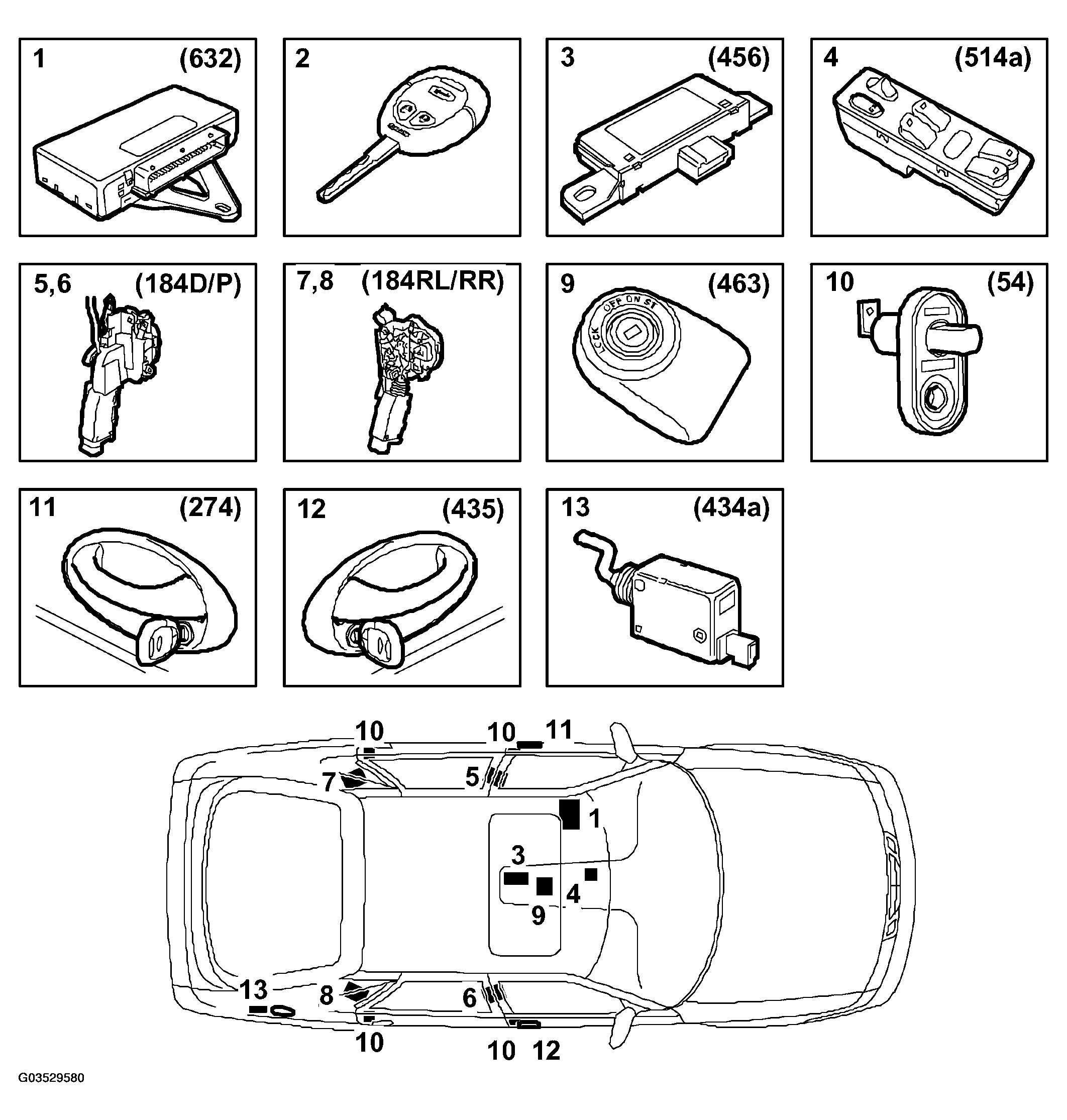

Fig 1: Main Components Of Central Locking System, Doors
G03529580Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, TWICE (632)
  2. Car key
  3. Antenna, remote control, central locking system (456)
  4. Switch, simultaneous closure central locking system (514a)
  5. Motor, central locking system, driver (184D)
  6. Motor, central locking system, passenger (184P)
  7. Motor, central locking system, rear left (184RL)
  8. Motor, central locking system, rear right (184RR)
  9. Antenna unit, immobilizer (463)
  10. Door switches (54D, 54P, 54RL, 54RR)
  11. Microswitch, central locking system, driver's door (274)
  12. Microswitch, central locking system, passenger door (435)
  13. Solenoid, central locking system, filler cap (434a)
