Rear window

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

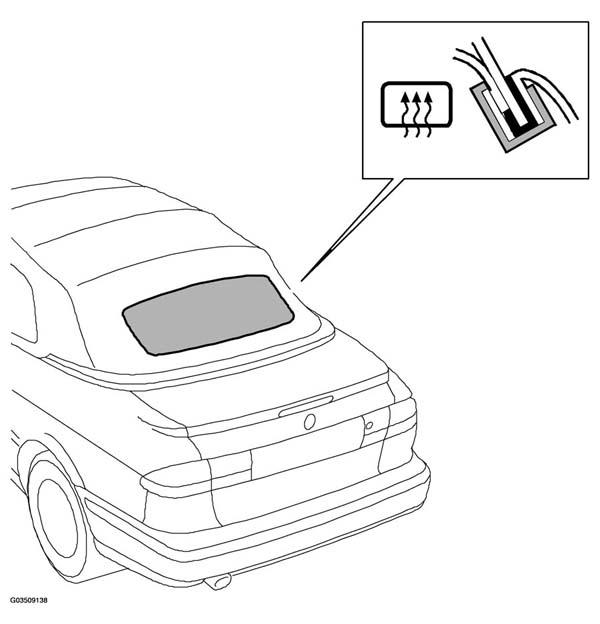

Fig 1: Locating Heated Rear Window
G03509138Courtesy of SAAB-SCANIA OF AMERICA, INC.

The electrically heated rear window is mounted in a frame that is fastened with clips in both the headlining and the outer roof. On the sides, there is a linkage which controls the window during raising and lowering of the soft top, as well as assures the end position of the window when the soft top has been opened or closed.
